User’s Manual of GS-4210 Series

Object Description

 GVRP Status

Display the current GVRP status

 Join Timeout

Display the current join timeout parameter

 Leave Timeout

Display the current leave timeout parameter

 LeaveAll Timeout

Display the current leaveall timeout parameter

4.5.11 GVRP Port Setting

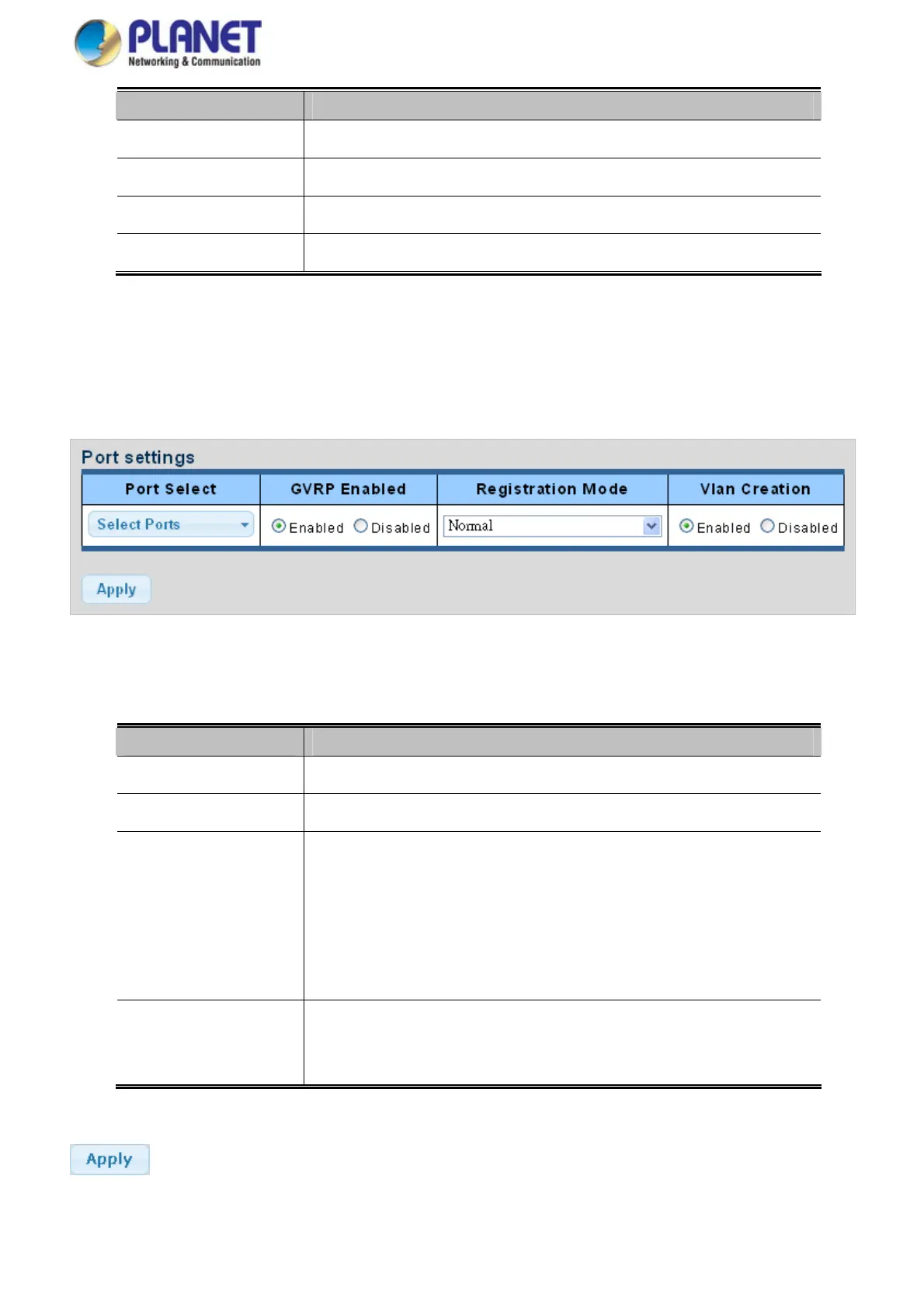

The GVRP Port Setting/Status screens in Figure 4-5-15 & Figure 4-5-16 appear.

Figure 4-5-15 GVRP Global Setting Page Screenshot

The page includes the following fields:

Object Description

 Port Select

Select port for this drop down list to assign protocol VLAN port

 GVRP Enabled

Controls whether GVRP is enabled or disabled on port

 Registration Mode

By default GVRP ports are in normal registration mode. These ports use GVRP

join messages from neighboring switches to prune the VLANs running across the

802.1Q trunk link. If the device on the other side is not capable of sending GVRP

messages, or if you do not want to allow the switch to prune any of the VLANs,

use the fixed mode. Fixed mode ports will forward for all VLANs that exist in the

switch database. Ports in forbidden mode forward only for VLAN 1.

 VLAN Creation

GVRP can dynamically create VLANs on switches for trunking purposes. By

enabling GVRP dynamic VLAN creation, a switch will add VLANs to its database

when it receives GVRP join messages about VLANs it does not have.

Buttons

: Click to apply changes.

133
