User’s Manual of GS-4210 Series

4.12.2 LLDP Global Setting

This Page allows the user to inspect and configure the current LLDP port settings. The LLDP Global Setting and Config screens

in Figure 4-12-1 & Figure 4-12-2 appear.

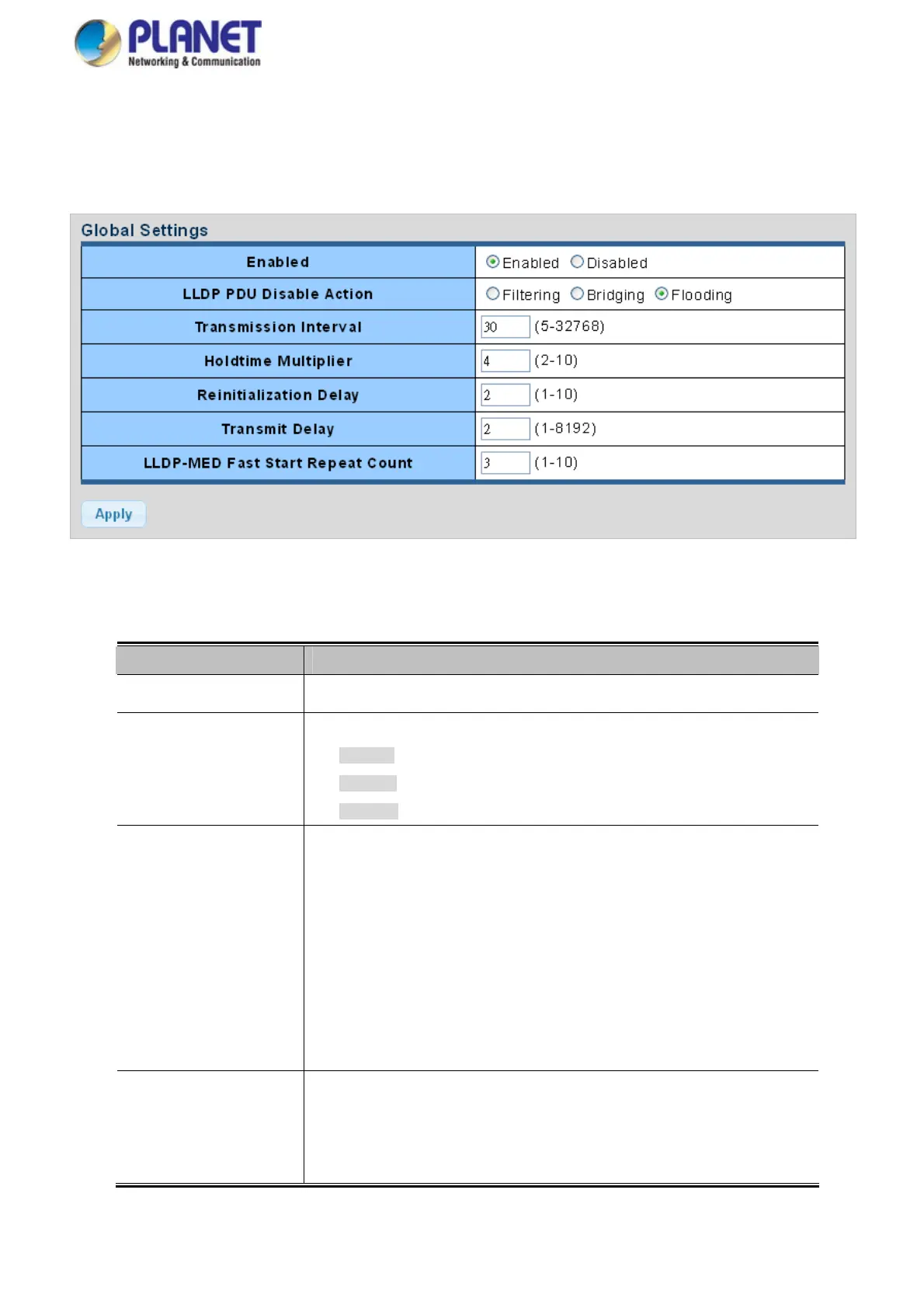

Figure 4-12-1 Global Setting Page Screenshot

The page includes the following fields:

Object Description

 Enable

Globally enable or disable LLDP function

 LLDP PDU Disable

Action

Set LLDP PDU disable action: include “Filtering”, “Bridging” and “Flooding”.

 Filtering: discrad all LLDP PDU.

 Bridging: transmit LLDP PDU in the same VLAN.

 Flooding: transmit LLDP PDU for all port.

 Transmission Interval

The switch is periodically transmitting LLDP frames to its neighbors for having the

network discovery information up-to-date. The interval between each LLDP

frame is determined by the Transmission Interval value. Valid values are

restricted to 5 - 32768 seconds.

Default: 30 seconds

This attribute must comply with the following rule:

(Transmission Interval * Hold Time Multiplier) ≤65536, and Transmission Interval

>= (4 * Delay Interval)

 Holdtime Multiplier

Each LLDP frame contains information about how long the information in the

LLDP frame shall be considered valid. The LLDP information valid period is set to

Holdtime multiplied by Transmission Interval seconds. Valid values are

restricted to 2 - 10 times.

298
