Planet GS-4210 SERIES - IGMP Filter Setting

User’s Manual of GS-4210 Series
The page includes the following fields:
Object Description
 Index
Display the current index
 IP Type
Display the current IP Type
 Group from
Display the current group from
 Group to
Display the current group to
 Action
Display the current action
 Modify
Click
to edit parameter.
Click
to delete the MLD/IGMP profile entry.
4.7.7.2 IGMP Filter Setting

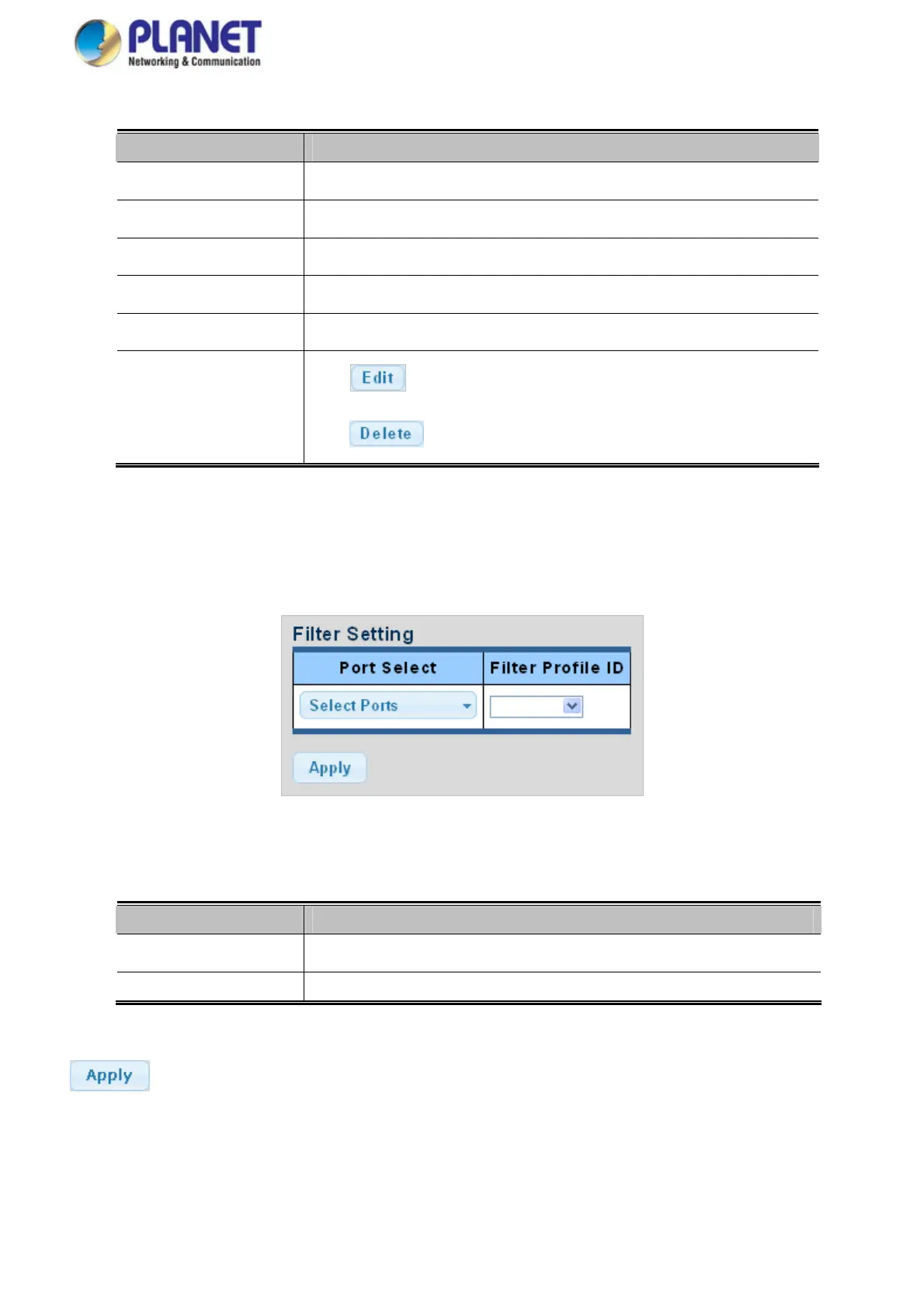

The Filter Setting and Status screens in Figure 4-7-38 & Figure 4-7-39 appear.
Figure 4-7-38 Filter Setting Page Screenshot
The page includes the following fields:
Object Description
 Port Select
Select port number for this drop down list
 Filter Profile ID
Select filter profile ID for this drop down list
Buttons
: Click to apply changes.
