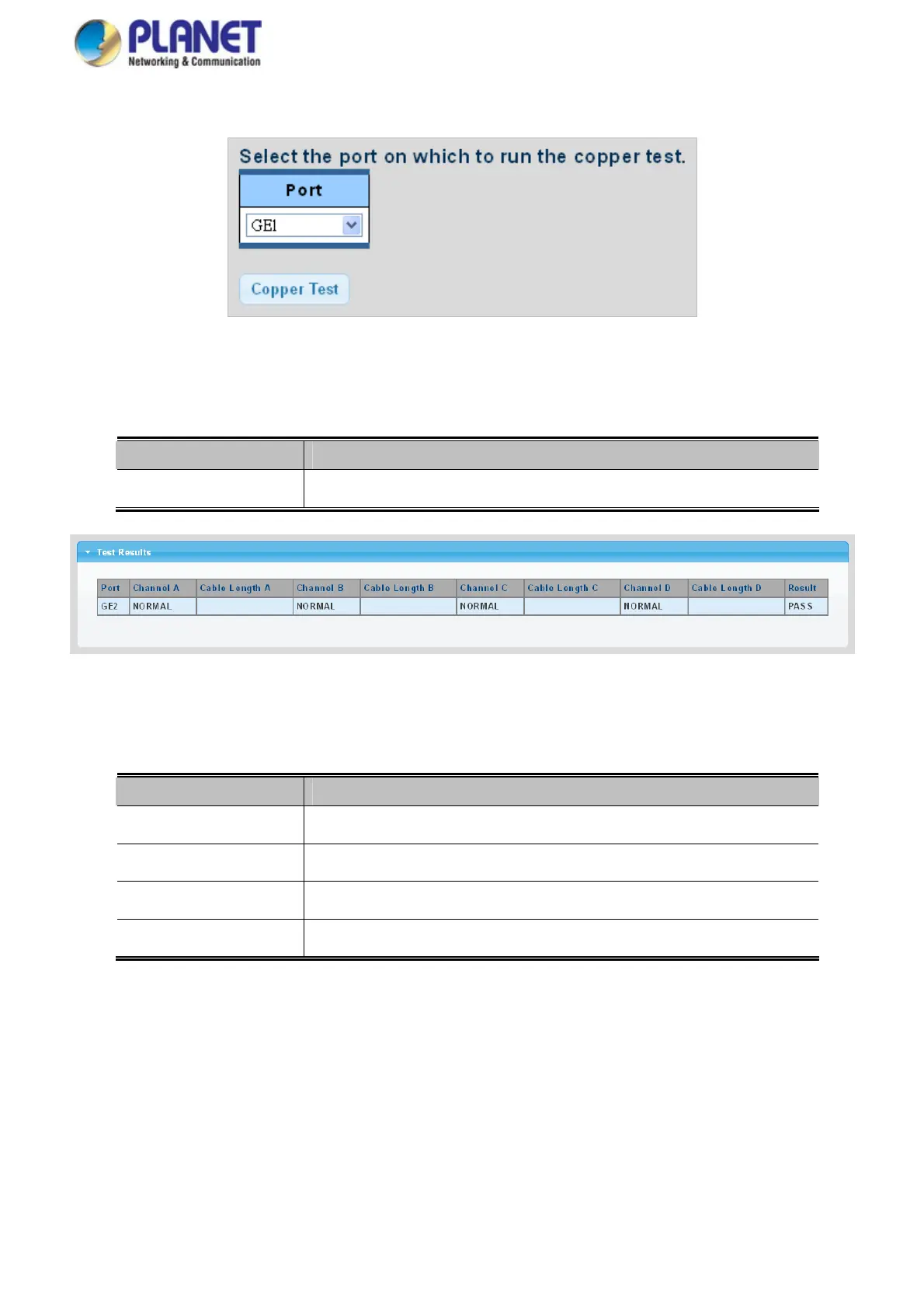

The Copper test and test result screens in Figure 4-13-1 & Figure 4-13-2 appear.
Figure 4-13-1 Copper Test Page Screenshot
The page includes the following fields:
Object Description
 Port
Select port for this drop down list
Buttons
: Click to run the diagnostics
Figure 4-13-2 Test Results Page Screenshot
The page includes the following fields:
Object Description
 Port
The port where you are requesting Cable Diagnostics
 Channel A~D
Display the current channel status
 Cable Length A~D
Display the current cable length
 Result
Display the test result
317

Planet GS-4210 SERIES Specifications

General

Power Input	100-240VAC, 50/60Hz
Enclosure	Metal
Product Type	Managed Switch
Ports	24 x 10/100/1000BASE-T, 4 x 100/1000BASE-X SFP
MAC Address Table	8K
Jumbo Frame	9K Bytes
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Installation	Rack-mountable
Dimensions	440 x 180 x 44 mm (W x D x H)
Weight	GS-4210-24UP4S: 2500g
