User’s Manual of GS-4210 Series

GS-4210-48T4S LED Indication

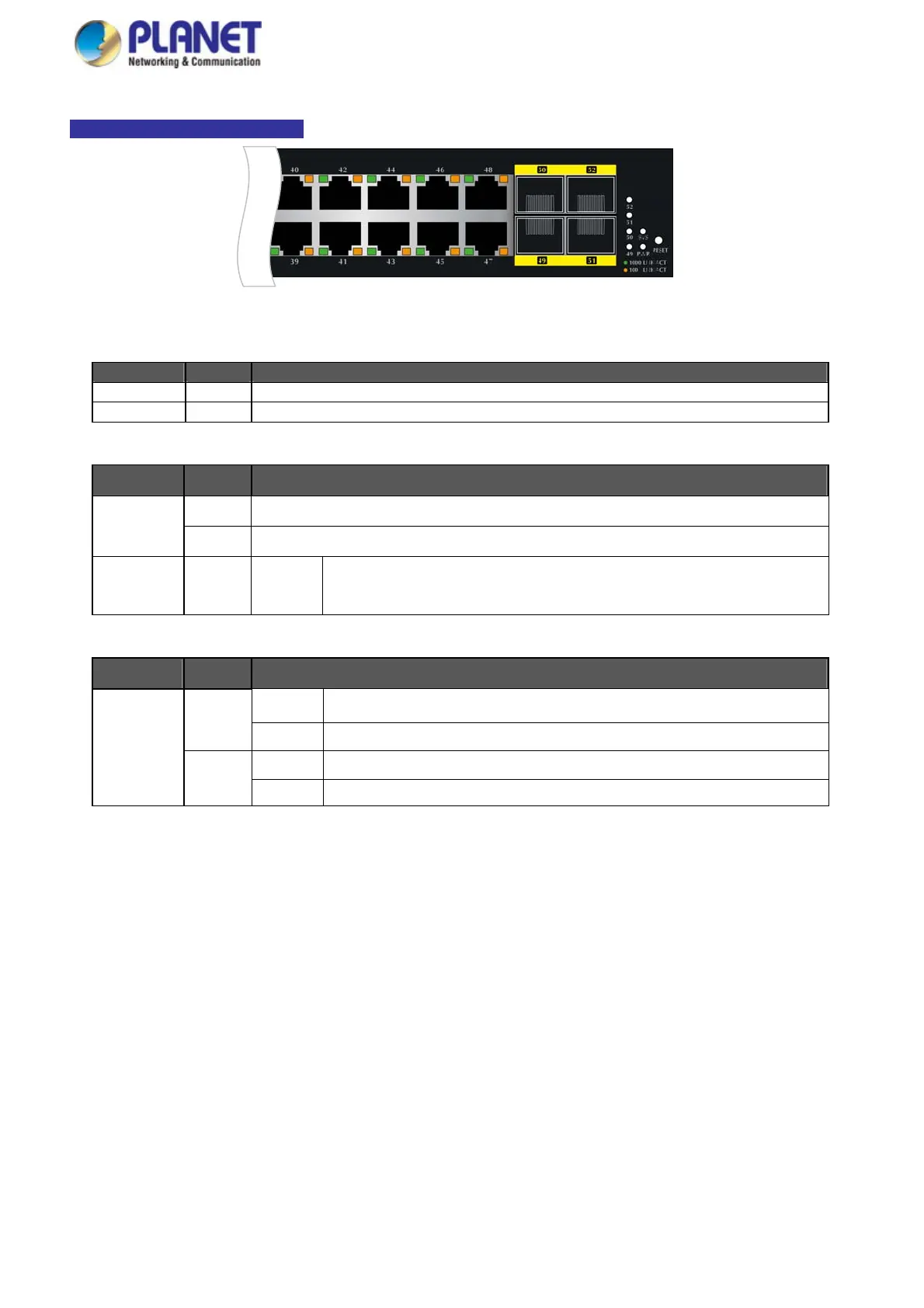

Figure 2-1-2d GS-4210-48T4S LED Panel

■ System

LED Color Function

PWR Green Lights to indicate that the Switch has power.

SYS Green Lights to indicate the system is working.

■ Per 10/100/1000Mbps RJ45 interfaces (Port-1 to Port-48)

LED Color Function

Orange Indicates the link through that port is successfully established at 1000Mbps.

Speed

None Indicates the link through that port is successfully established at 10/100Mbps.

LNK/ACT Green Blinks: Indicates that the Switch is actively sending or receiving data over that port.

■ Per 100/1000Mbps SFP Interface (Port-49 to Port-52)

LED Color Function

Lights: Indicates the link through that port is successfully established at 1000Mbps.

Green

Blinks: Indicates that the Switch is actively sending or receiving data over that port.

Lights: Indicates the link through that port is successfully established at 100Mbps.

LNK/ACT

Orange

Blinks: Indicates that the Switch is actively sending or receiving data over that port.
