Planet GS-4210 SERIES User Manual

User’s Manual of GS-4210 Series

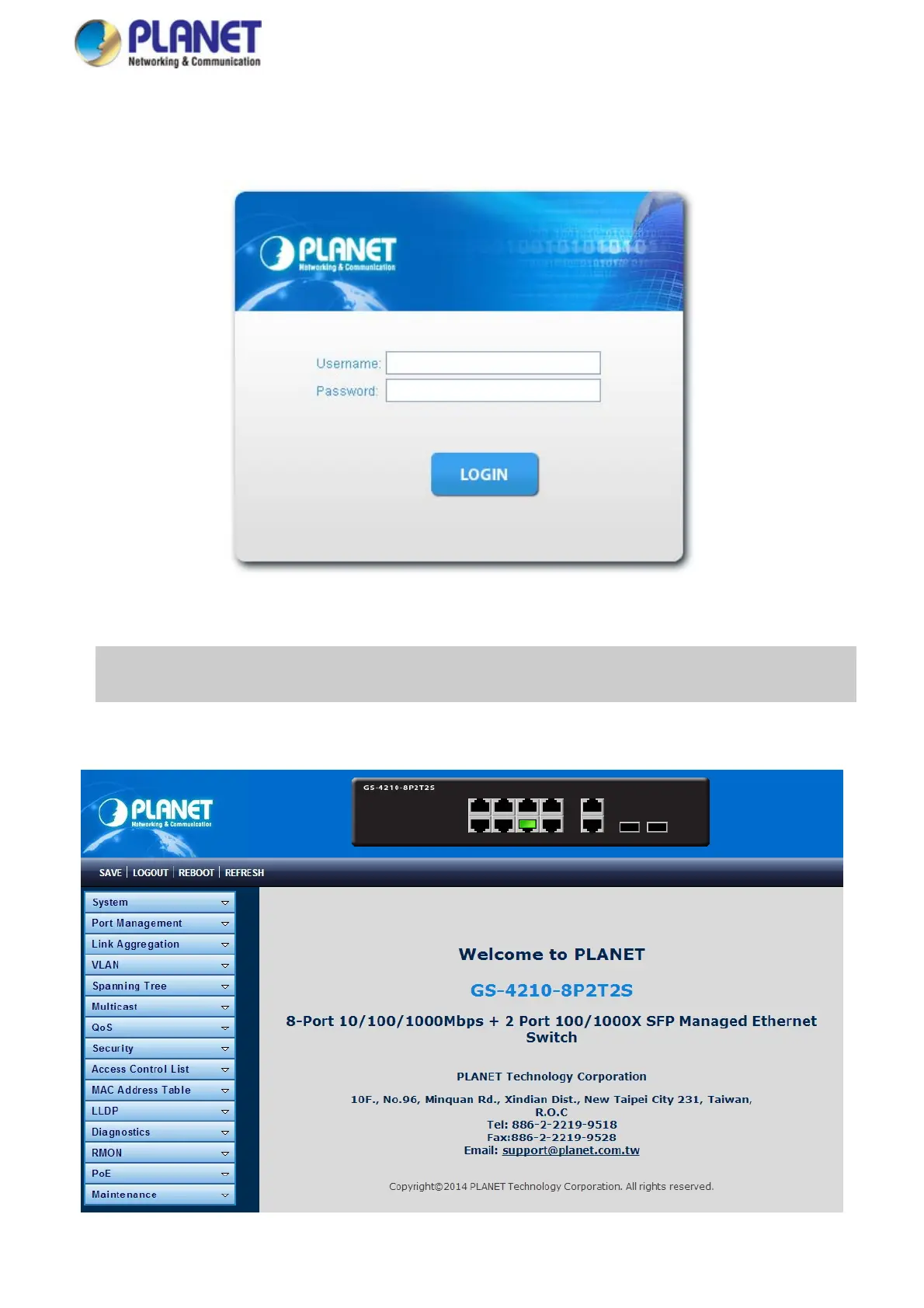

2. When the following login screen appears, please enter the default username "admin" with password “admin” (or the
username/password you have changed via console) to login the main screen of Managed Switch. The login screen in
Figure 4-1-2 appears.
Figure 4-1-2 Login screen
Default User Name: admin
Default Password: admin
After entering the username and password, the main screen appears as Figure 4-1-3.
49

Planet GS-4210 SERIES Specifications

General

Power Input	100-240VAC, 50/60Hz
Enclosure	Metal
Product Type	Managed Switch
Ports	24 x 10/100/1000BASE-T, 4 x 100/1000BASE-X SFP
MAC Address Table	8K
Jumbo Frame	9K Bytes
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Installation	Rack-mountable
Dimensions	440 x 180 x 44 mm (W x D x H)
Weight	GS-4210-24UP4S: 2500g
