User’s Manual of GS-4210 Series

The page includes the following fields:

Object Description

 Session ID

Set the port mirror session ID.

Possible ID are: 1 to 4.

 Monitor Session State

Enable or disable the port mirroring function.

 Destination Port

Select the port to mirror destination port.

 Allow-ingress

Frames from ports that have either source (rx) or destination (tx) mirroring enabled are

mirrored to this port.

 Sniffer TX Ports

Frames transmitted from these ports are mirrored to the mirroring port. Frames received

are not mirrored.

 Sniffer RX Ports

Frames received at these ports are mirrored to the mirroring port.

Frames transmitted are not mirrored.

Buttons

: Click to apply changes.

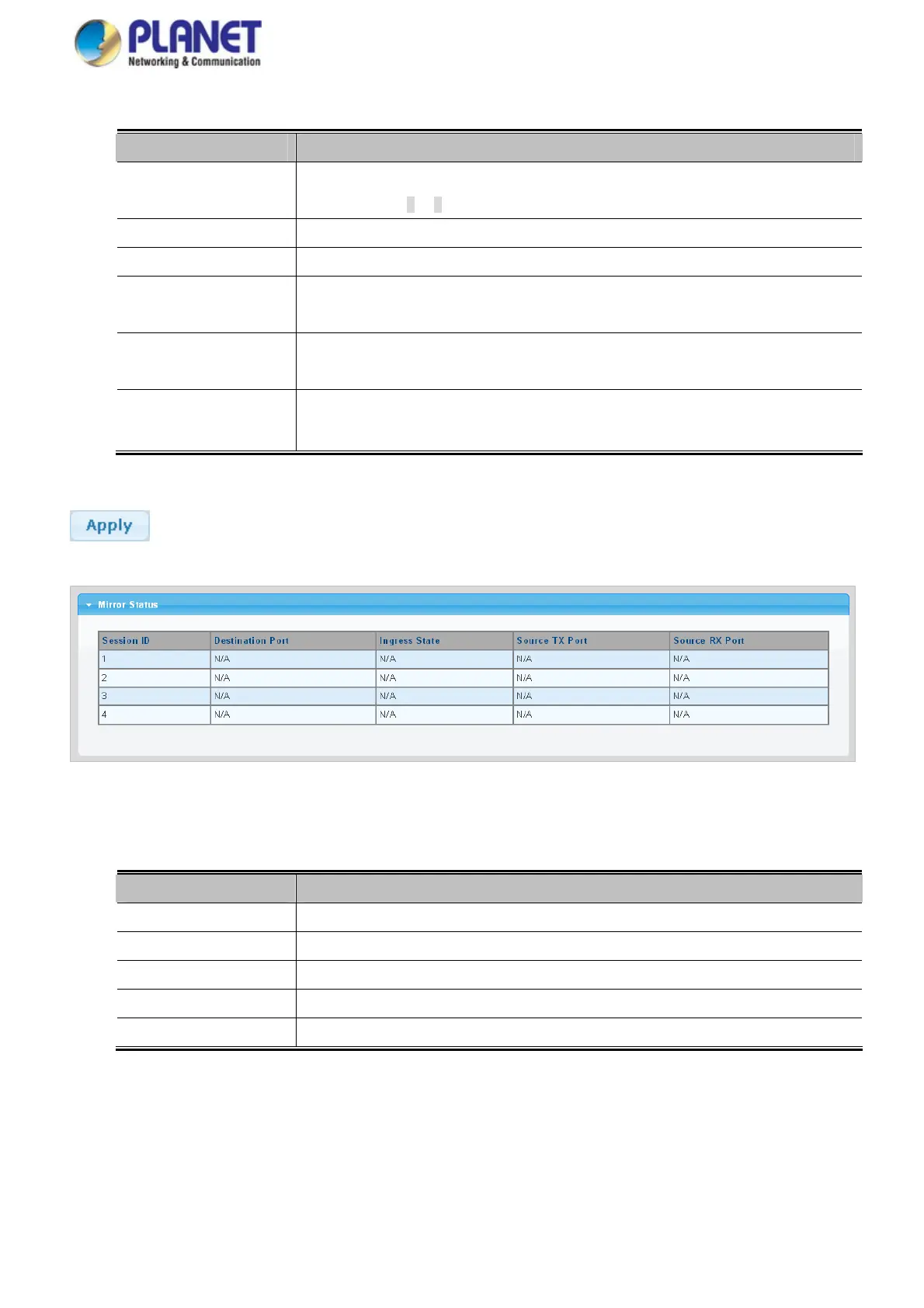

Figure 4-3-10 Mirroring Status Page Screenshot

The page includes the following fields:

Object Description

 Session ID

Display the session ID

 Destination Port

This is the mirroring port entry

 Ingress State

Display the ingress state

 Source TX Port

Display the current TX ports

 Source RX Port

Display the current RX ports
