4.15.2 Ping
The ping and IPv6 ping allow you to issue ICMP PING packets to troubleshoot IP connectivity issues. The Industrial Managed
Switch transmits ICMP packets, and the sequence number and roundtrip time are displayed upon reception of a reply.
4.15.2.1 Ping Test
This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues.
After you press “Apply”, ICMP packets are transmitted, and the sequence number and roundtrip time are displayed upon
reception of a reply. The page refreshes automatically until responses to all packets are received, or until a timeout occurs. The
ICMP Ping screen in Figure 4-15-3 appears.

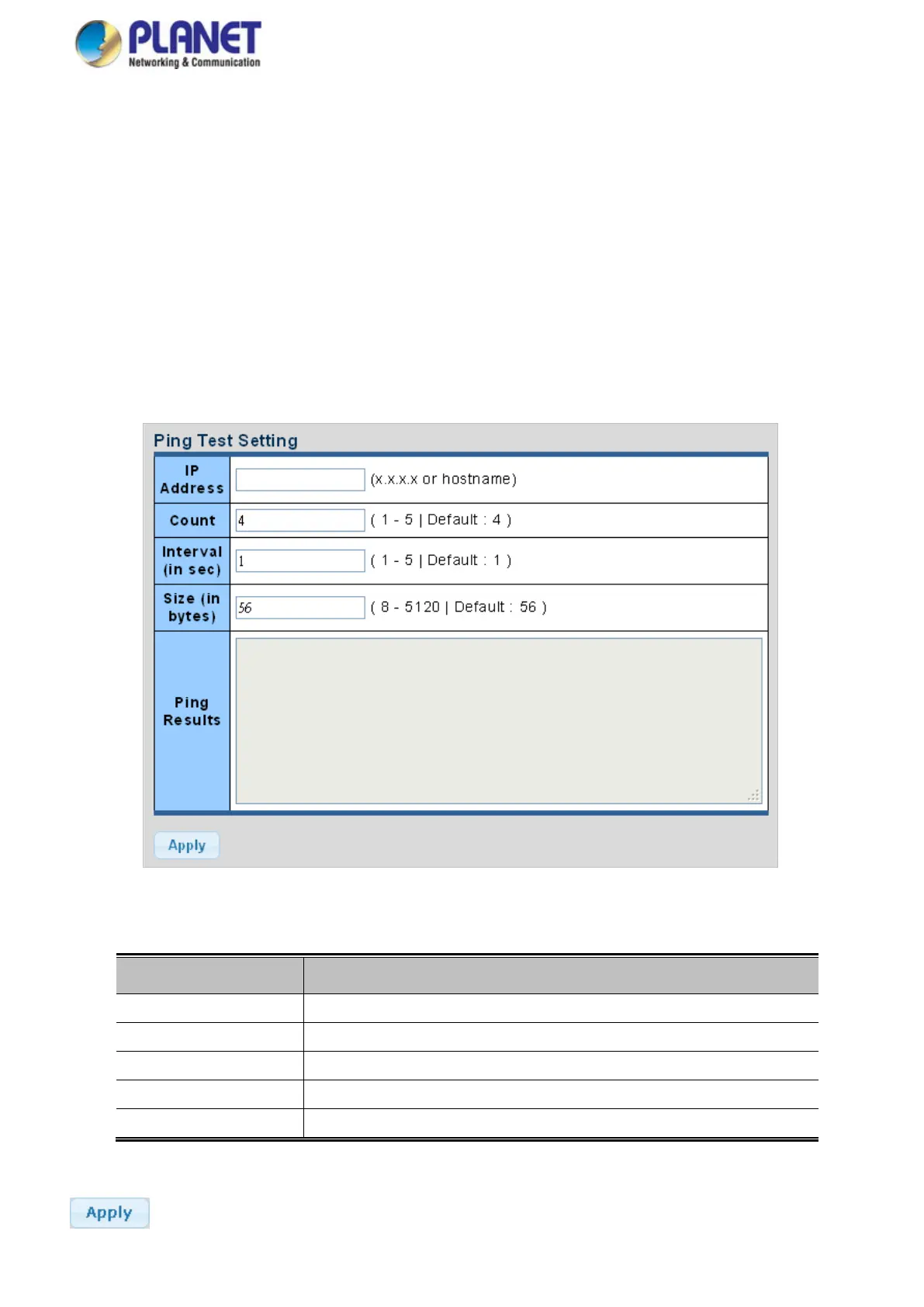

Figure 4-13-3: ICMP Ping Page Screenshot
The page includes the following fields:
Object Description
• IP Address
The destination IP Address.
• Count
Number of echo requests to send.
• Interval (in sec)
Send interval for each ICMP packet.
• Size (in bytes)
The payload size of the ICMP packet. Values range from 8bytes to 5120bytes.
• Ping Results
Displays the current ping result.
Buttons
: Click to transmit ICMP packets.
