Planmeca ProMax Technical Manual

Chapter E - C-ARM AND IMAGING ARM
E-66 Planmeca ProMax
PROMAX 3D: ADJUSTMENTS & CALIBRATIONS
Technical Manual
Beam horizontal position

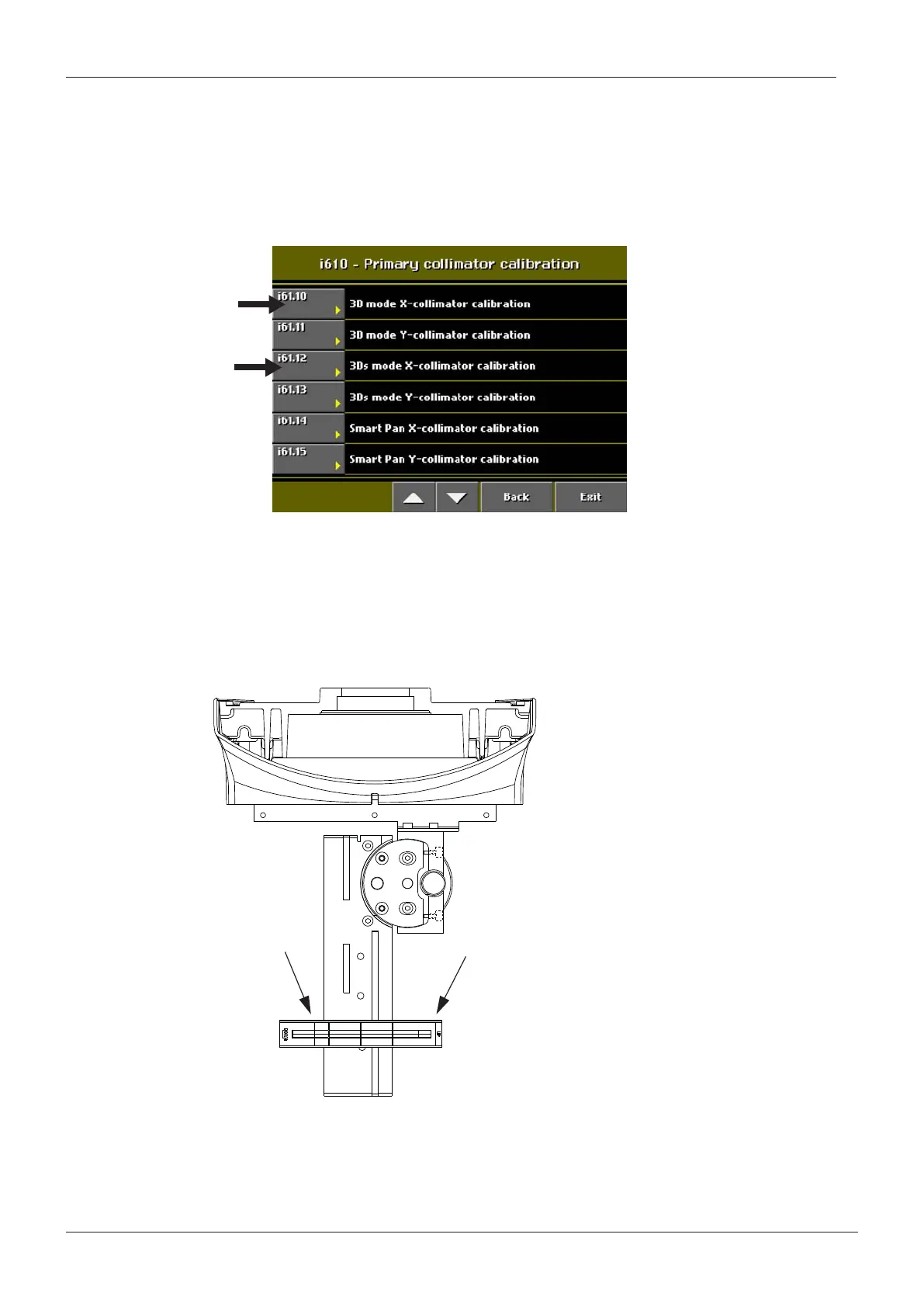

Select Primary collimator calibration (i61.10) from the display that appears when you
select Technical calibrations. Depending on the sensor you are using, select 3D or 3D s
mode X-collimator calibration (i61.10 or i61.12) from the list.
The position of the X-ray beam can now be checked without the C-arm moving.
Figure 85
The corresponding X-collimator calibration (i61.10 or i61.12) display will appear. The
horizontal position of the X-ray beam is adjusted in this mode.
Place the beam alignment tool on the sensor head alignment tool as shown in Fig. 86.
Figure 86
X-ray units with
3D sensor
X-ray units with
3D s sensor
(V1 or V2)
cbct_beam_2.eps
Line
Line

Planmeca ProMax Specifications

General

Category	Medical Equipment
Type	Cone Beam Computed Tomography (CBCT) System
Software	Planmeca Romexis
Imaging Modes	CBCT
Imaging Modalities	2D Panoramic
X-ray Generator	High Frequency Generator
Focal Spot Size	0.5 mm
X-ray Tube Voltage	60-90 kV
Exposure Time	Varies depending on imaging mode and parameters
Dimensions	Varies significantly depending on model and configuration
Weight	Varies significantly depending on model and configuration
Power Requirements	50/60 Hz
Patient Positioning	seated
