15.Install outer clutch cover and eight retaining screws.
Torque screws to specification.
TORQUE
PVT Outer Cover Fasteners
4.5 lb-ft (6 Nm)
16.Connect the negative (-) battery cable to the battery,
access panel, and install the seat.
17.Start the engine to ensure proper operation.

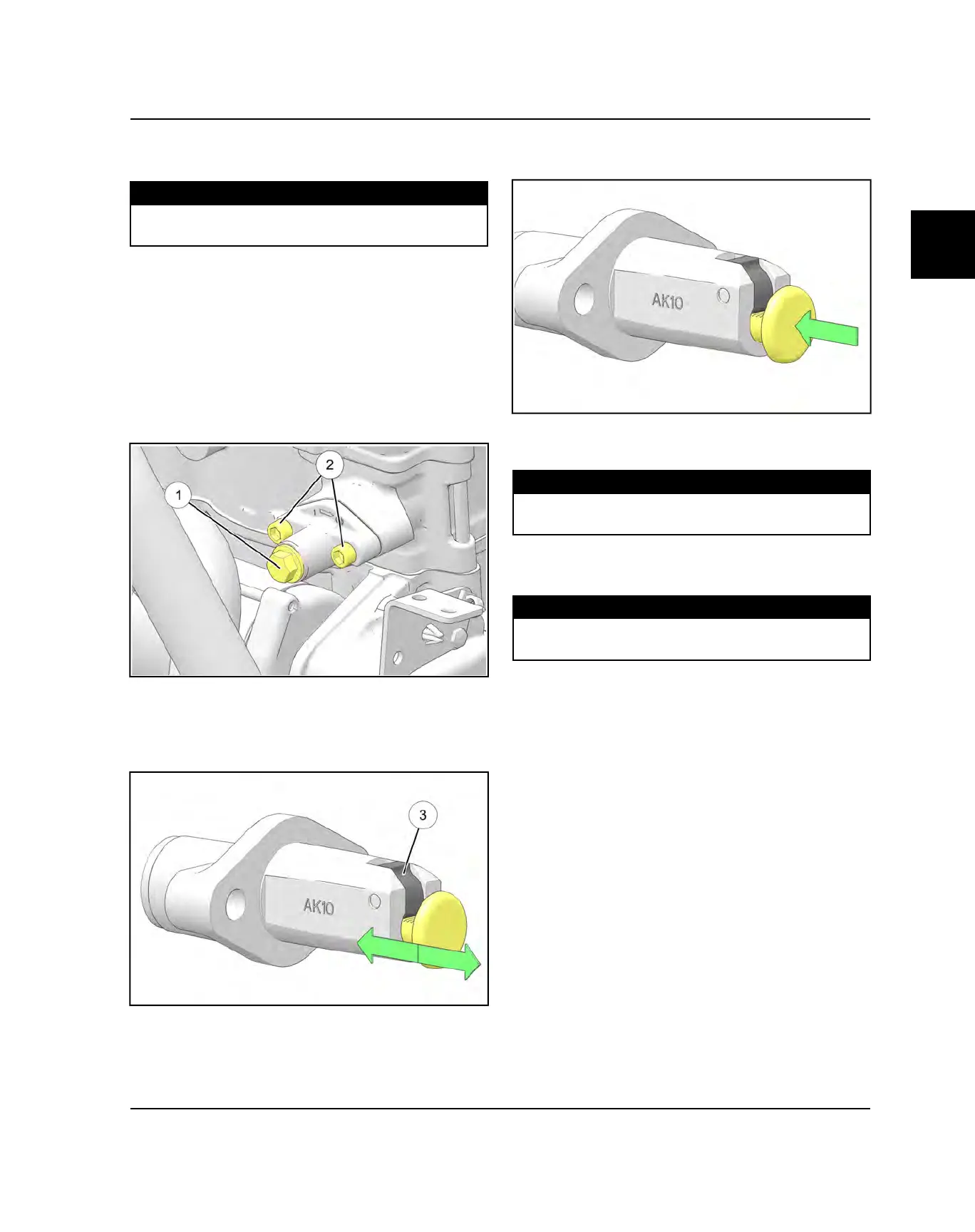

CAM CHAIN TENSIONER INSPECTION
1. Locate the cam chain tensioner on the MAG side of
the engine near the starter.
2. Remove the plunger bolt
q
and the spring.
3. Remove the two tensioner mounting bolts
w
.
4. Push on the tensioner lock
e
and manually move the
plunger in and out. It should move freely. If it does not
move freely, replace the tensioner assembly.
5. Retract the plunger all the way in and install into the
cylinder.
6. Install the two mounting bolts. Torque fasteners to
specification.
TORQUE
Tensioner Mounting Bolts:
7 ft-lb (10 Nm)
7. Install the plunger bolt. Torque fastener to
specification.
TORQUE
Plunger Bolt:
15 ft-lb (20 Nm)
