OIL PRESSURE TEST
1. Attach the Oil Pressure Gauge Adapter (PU-52492)
to the Oil Pressure Gauge (PV-43531).
Oil Pressure Gauge: PV-43531
Oil Pressure Gauge Adapter: PU-52492
2. Raise the cargo box to access the engine.

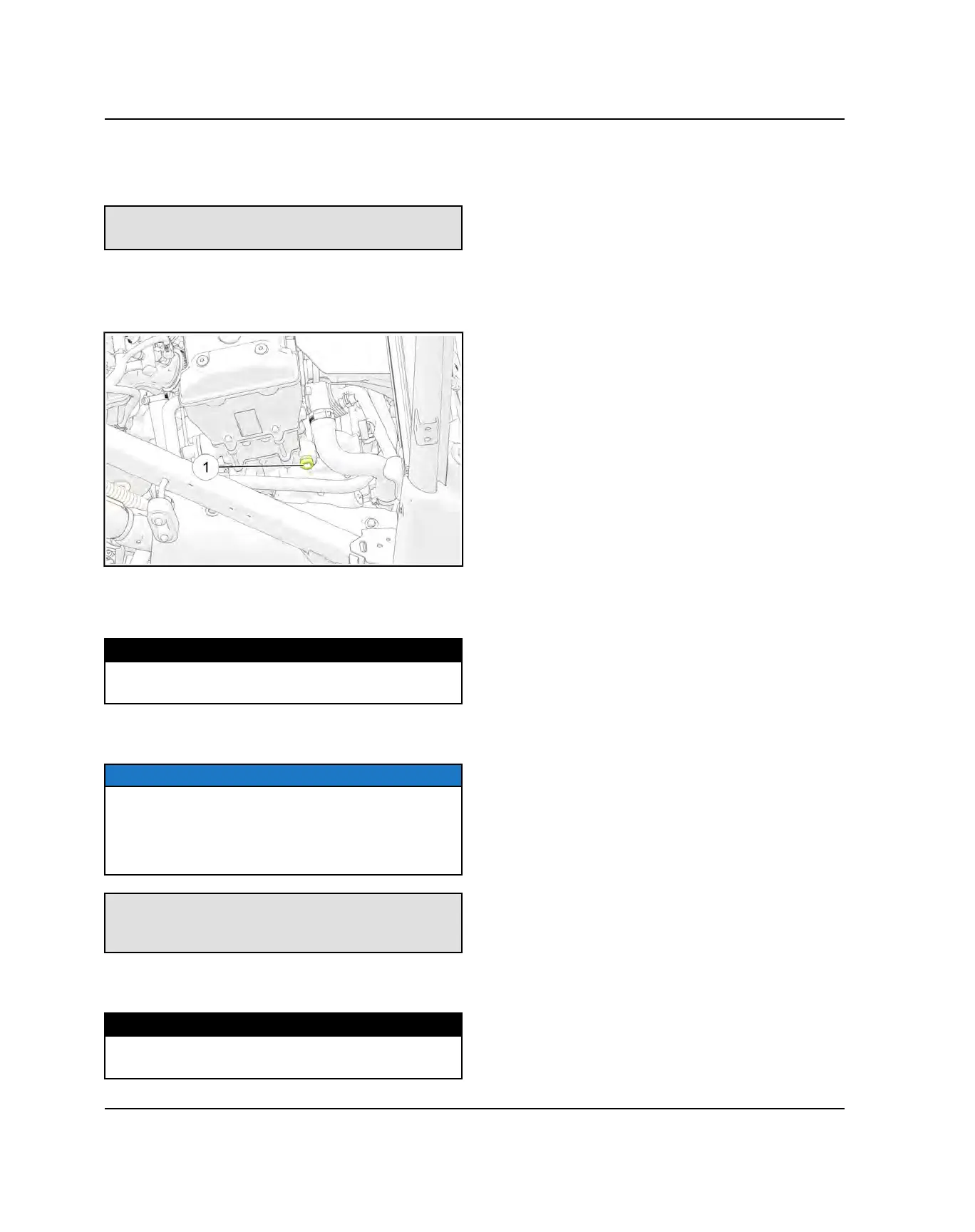

3. Clean the area around the oil gallery plug
q
located
in the upper crankcase on the MAG side of the engine
4. Remove the crankcase gallery plug and thread in the
oil pressure adapter. Torque the adapter to
specification.
TORQUE
Oil Pressure Gauge Adapter: PU-52492
22 ft-lbs (30 Nm)
5. Start engine and allow it to reach operating
temperature, monitoring gauge indication.
NOTICE
Test results are based on the use of the recommended
engine oil (Polaris PS-4 or PS-4 Extreme Duty) at
operating temperature, and may vary considerably if
any other oil is used or if engine is not up to
temperature.
Oil Pressure Specification (Engine Hot):
Minimum @ 1200 RPM: 10 PSI
Minimum @ 7000 RPM: 40 PSI
6. Upon assembly, torque the crankcase gallery plug to
specification.
TORQUE
Crankcase Oil Gallery Plug:
22 ft-lbs (30 Nm)
