6
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
6.29

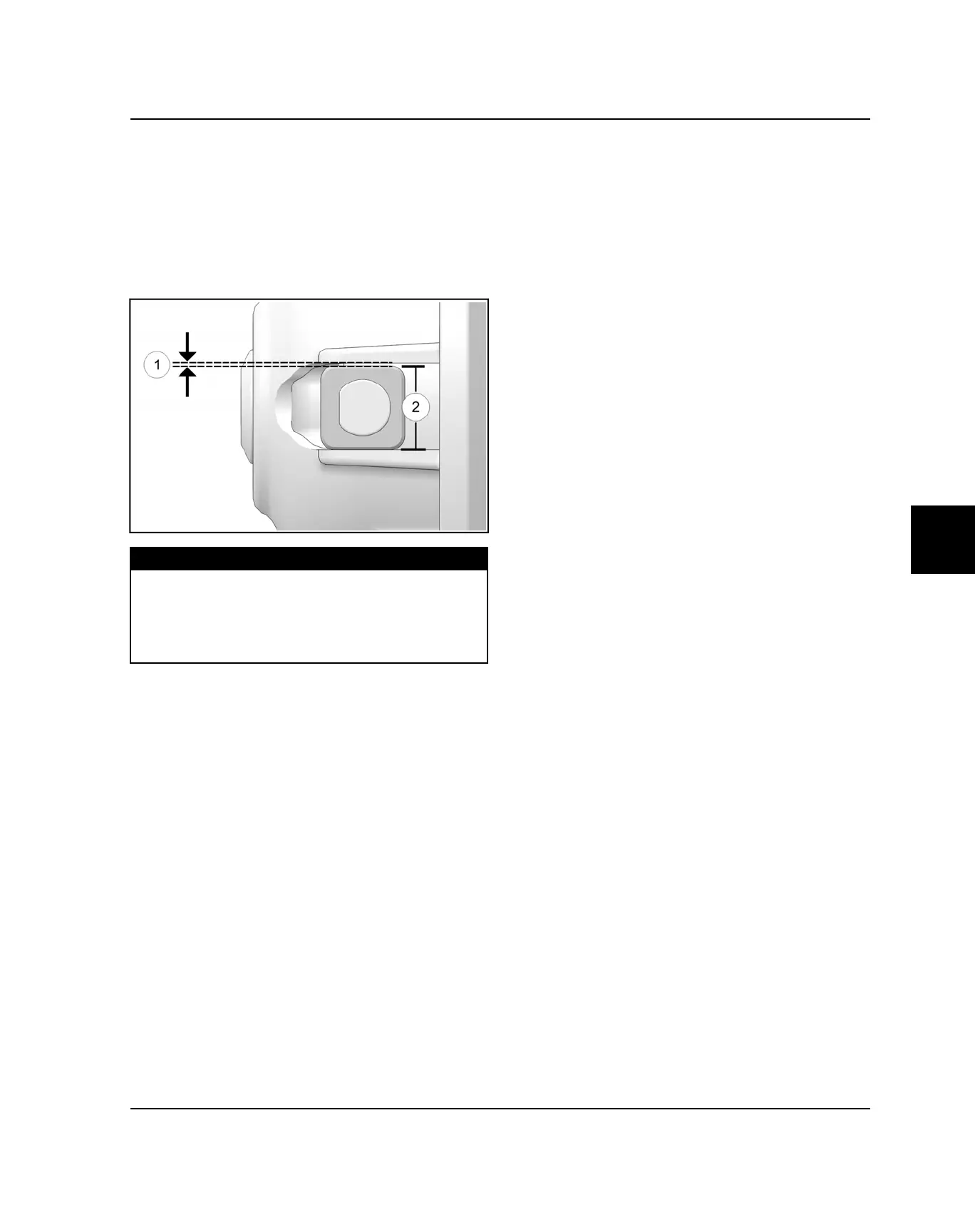

DRIVEN CLUTCH SLIDER INSPECTION
The square sliders can be inspected with the driven
clutch installed on the vehicle.
Using a feeler gauge, measure the distance between the
slider and the stationary sheave at the widest point
q
. If
the measurement is over the service limit, the sliders or
driven clutch will need to be replaced. Also measure the
width of the slider block
w
. Replace the sliders if they are
smaller than the service limit.
MEASUREMENT
Slider to Sheave Clearance
q
:
Service Limit: 0.175″ (4.5 mm)
Slider Width
w
:
Service Limit: 0.975″ (24.8 mm)
PVT SYSTEM
