9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.27

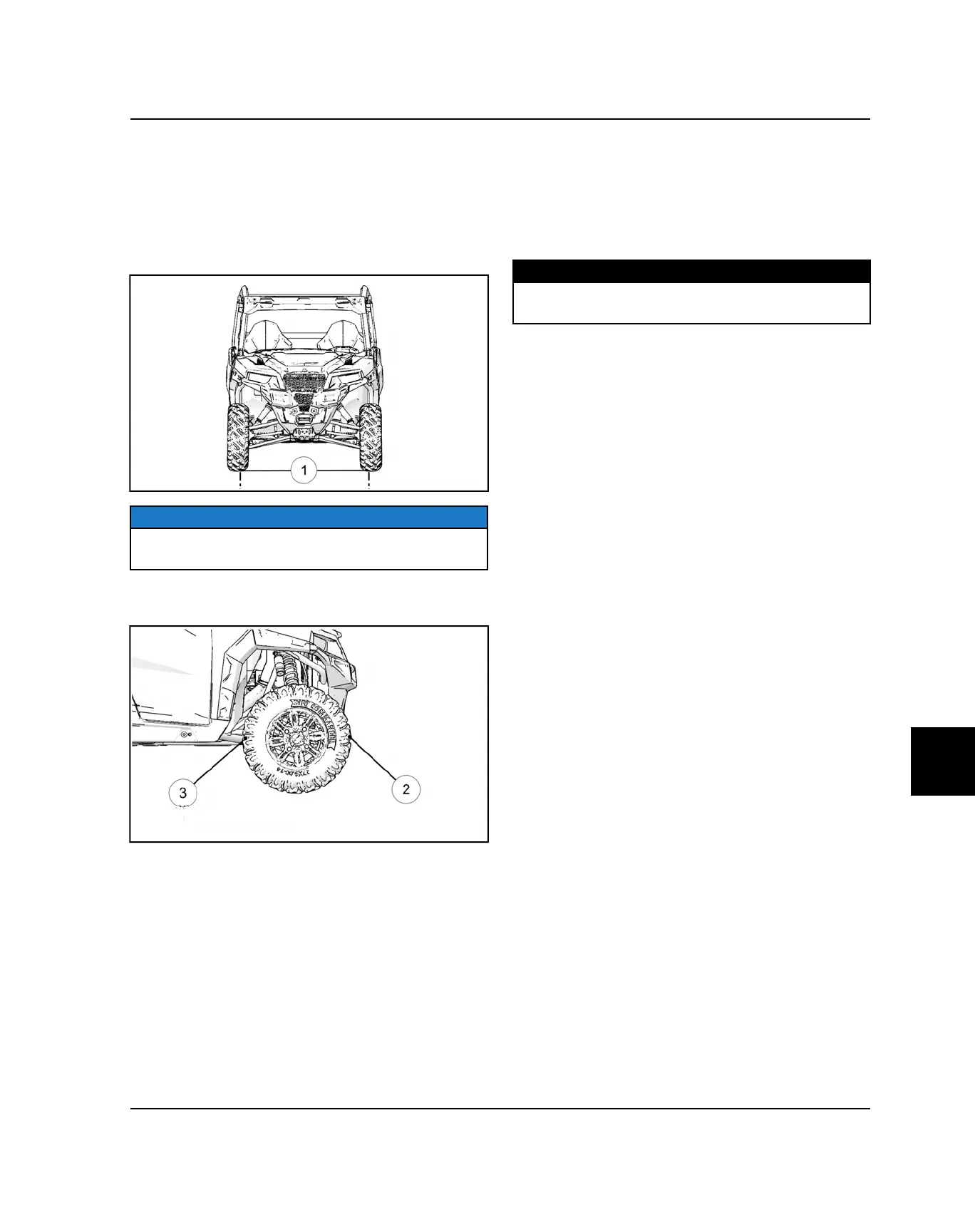

WHEEL TOE ALIGNMENT INSPECTION
1. Place machine on a smooth level surface and set
steering wheel in a straight ahead position. Secure
the steering wheel in this position.
2. Place a chalk mark on the center line of the front tires
approximately 10” (25.4 cm) from the floor or as close
to the hub/axle center line as possible (1).
NOTICE
It is important the height of both marks be equally
positioned to get an accurate measurement.
3. Measure the distance between the marks and record
the measurement. Call this measurement “2”.
4. Rotate the tires 180° by moving the vehicle forward.
Position chalk marks facing rearward, even with the
hub/axle center line.
5. Again measure the distance between the marks and
record. Call this measurement “3”. Subtract
measurement “3” from measurement “2”. The
difference between measurements “2” and “3” is the
vehicle toe alignment. Because the specification is for
toe out, the measurement at the front of the tire (2) is
wider than the measurement at the rear (3).
MEASUREMENT
Wheel Toe-Out:
0-1/8 in (0-3.175 mm)
STEERING / SUSPENSION
