9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
3.71
INTAKE SERVICE

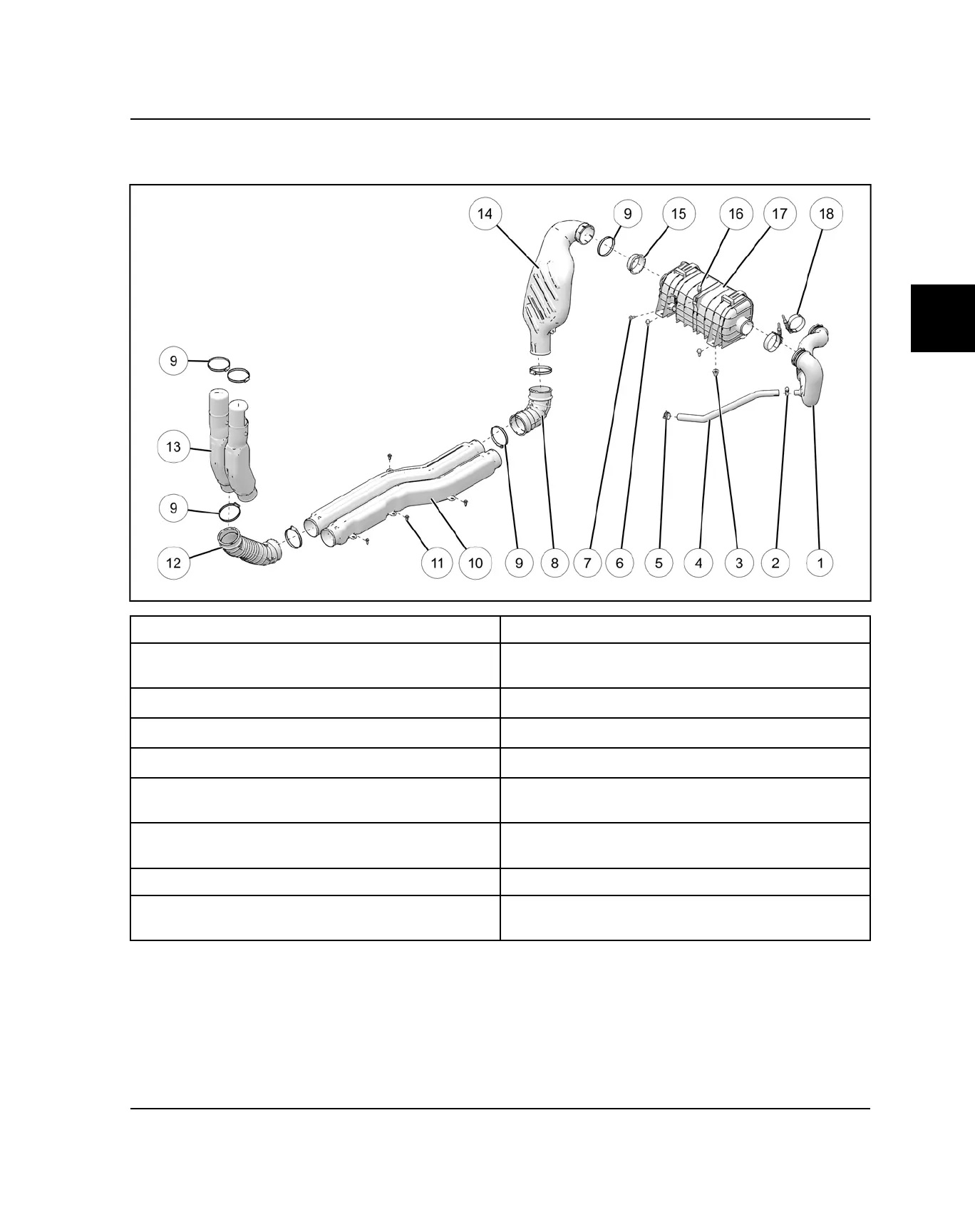

INTAKE ASSEMBLY VIEW - GENERAL / GENERAL XP
q
Intake Duct Asm.
a
Floor Intake Duct
w
Hose Clamp
24 lb-in (3 Nm)
s
Plastic Push Rivet
e
Drain Plug
d
Intake Duct Hose
r
Engine Vent Hose
f
Front Intake Duct
t
Spring Band Clamp
g
Air Box In Intake Duct
y
Air Box Fastener
3.5 lb-ft (4.7 Nm)
h
Air Box Intake Seal
u
Air Box Fastener
3.5 lb-ft (4.7 Nm)
j
U-Nut
i
Intake Duct Hose
k
Air Box Asm.
o
Gear Clamp
24 lb-in (3 Nm)
l
T-bolt Hose Clamp
49 lb-in (5.5 Nm)
