ASSEMBLY VIEWS - FUEL SYSTEM

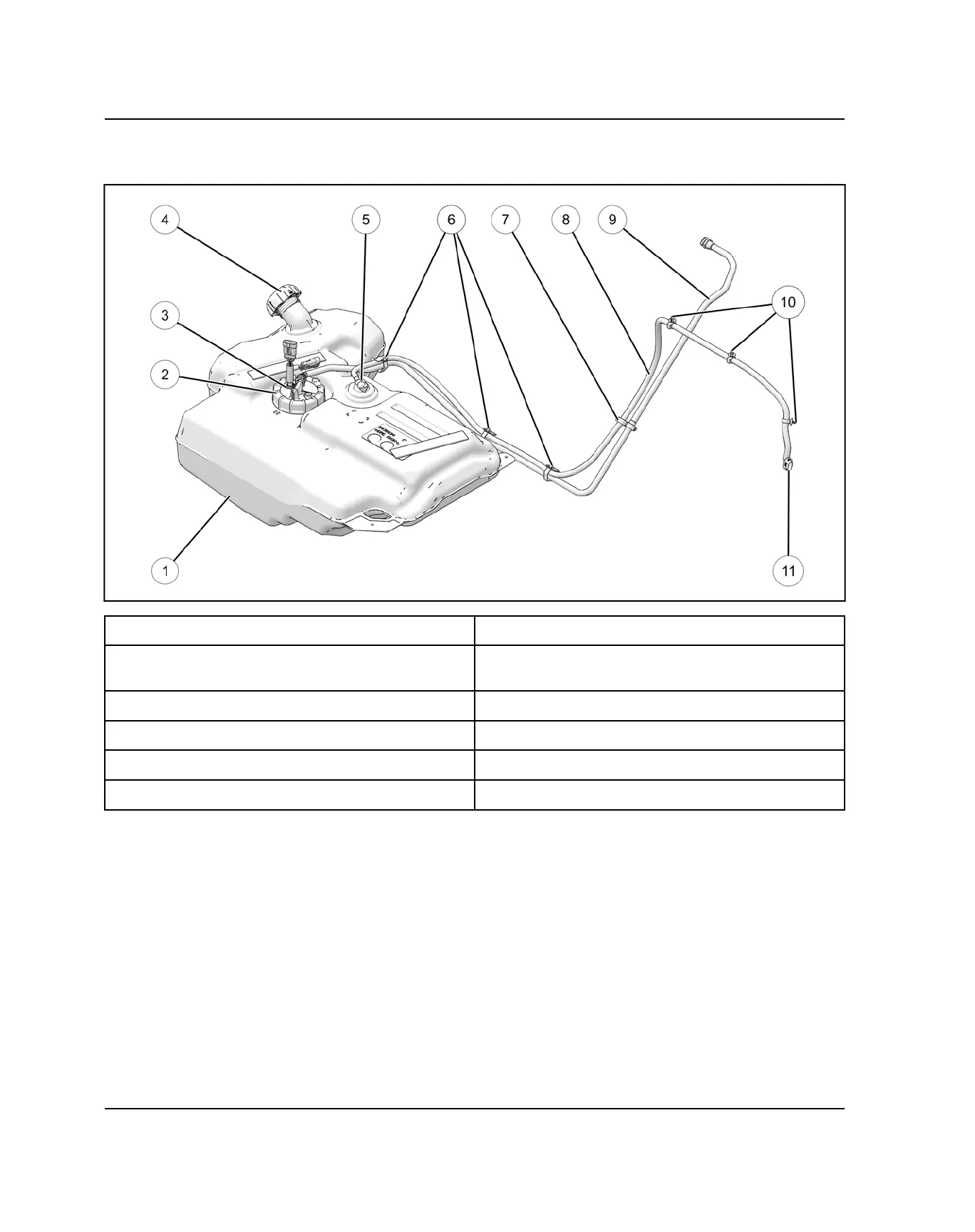

FUEL SYSTEM ASSEMBLY VIEW
q
Fuel Tank
u
Harness Clip
w a
PFA Nut
70 lb-ft (95 Nm)
i
Fuel Vent Line
e
Fuel Pump Assembly
o
Fuel Feed Line
r
Fuel Fill Neck and Fuel Cap
a
Routing Clip, Hinged
t
Vent Rollover Valve
s
Vent Termination Fitting
y
Routing Clip
