9
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
9.23

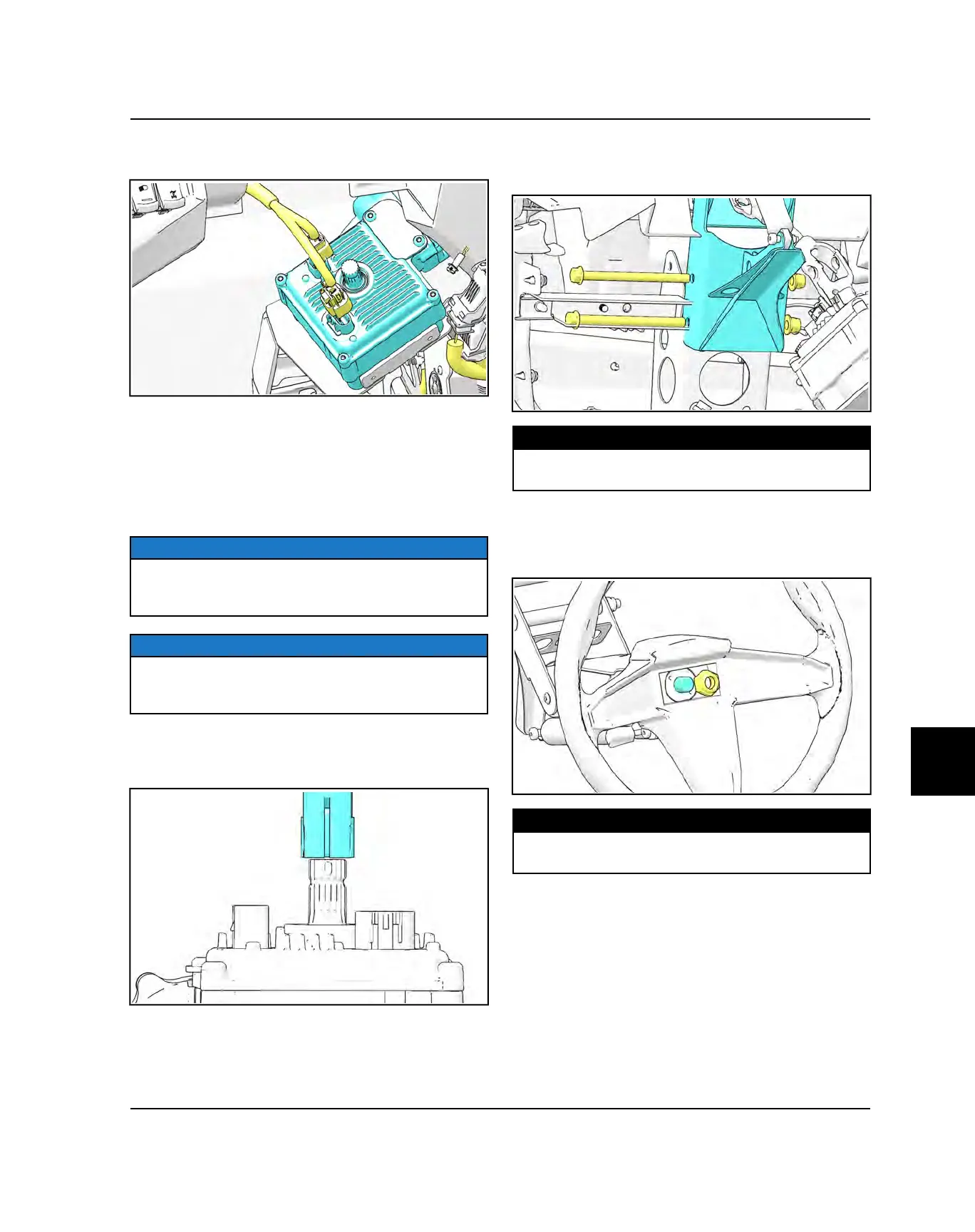

6. Reconnect both electrical harnesses onto the power
steering unit. Be sure the connectors snap into place.
7. Install the upper steering shaft assembly. Refer to
“Steering Shaft Installation - Upper” page 9.23
procedure.
STEERING SHAFT INSTALLATION -
UPPER
NOTICE
If steering wheel was removed, follow this procedure to
ensure the upper steering shaft is properly positioned
on the power steering stub shaft.
NOTICE
Striking the steering wheel or steering shaft can
permanently damage the EPAS unit and cause a Power
Steering Fault.
1. Install the upper steering shaft and align the skip-
tooth spline on the power steering stub shaft with the
opening in the upper steering shaft.
2. Install the fasteners that retain the tilt assembly to the
mounting bracket. Torque the fasteners to
specification.
TORQUE
Steering Tilt Assembly Fasteners:
40 lb-ft (54 Nm)
3. Be sure the front wheels are pointing straight ahead
and install the steering wheel and retaining nut.
Torque the nut to specification and reinstall the plastic
wheel cover.
TORQUE
Steering Wheel Nut:
65 lb-ft (88 Nm)
STEERING / SUSPENSION
