4. Install the new pinch bolt (PN 7520943) retaining the
upper steering shaft to the power steering unit.
Torque to specification.
TORQUE
Silver 10.9 Upper Steering Shaft Pinch Bolt:
30 lb-ft (41 Nm)
NOTICE
The upper steering shaft pinch bolt must be replaced
with PN 7520943 which has a silver finish and is 10.9

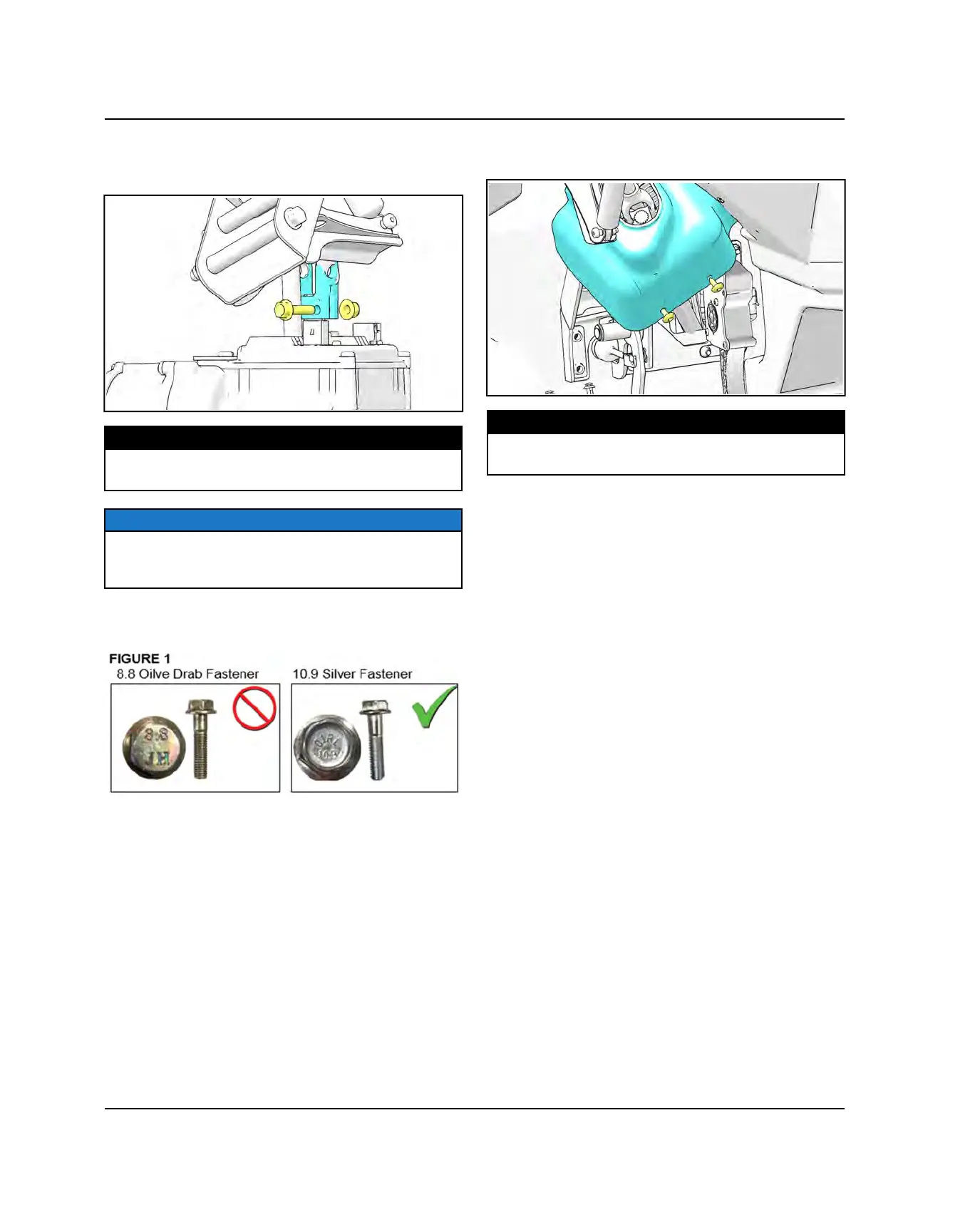

grade. Reference Figure 1.
5. Install the fasteners retaining the black plastic cover
and torque to specification.
TORQUE
Power Steering Unit Cover Fasteners:
42 lb-in (5 Nm)
6. Turn the key switch on and test EPAS operation.
STEERING / SUSPENSION
