SEATS

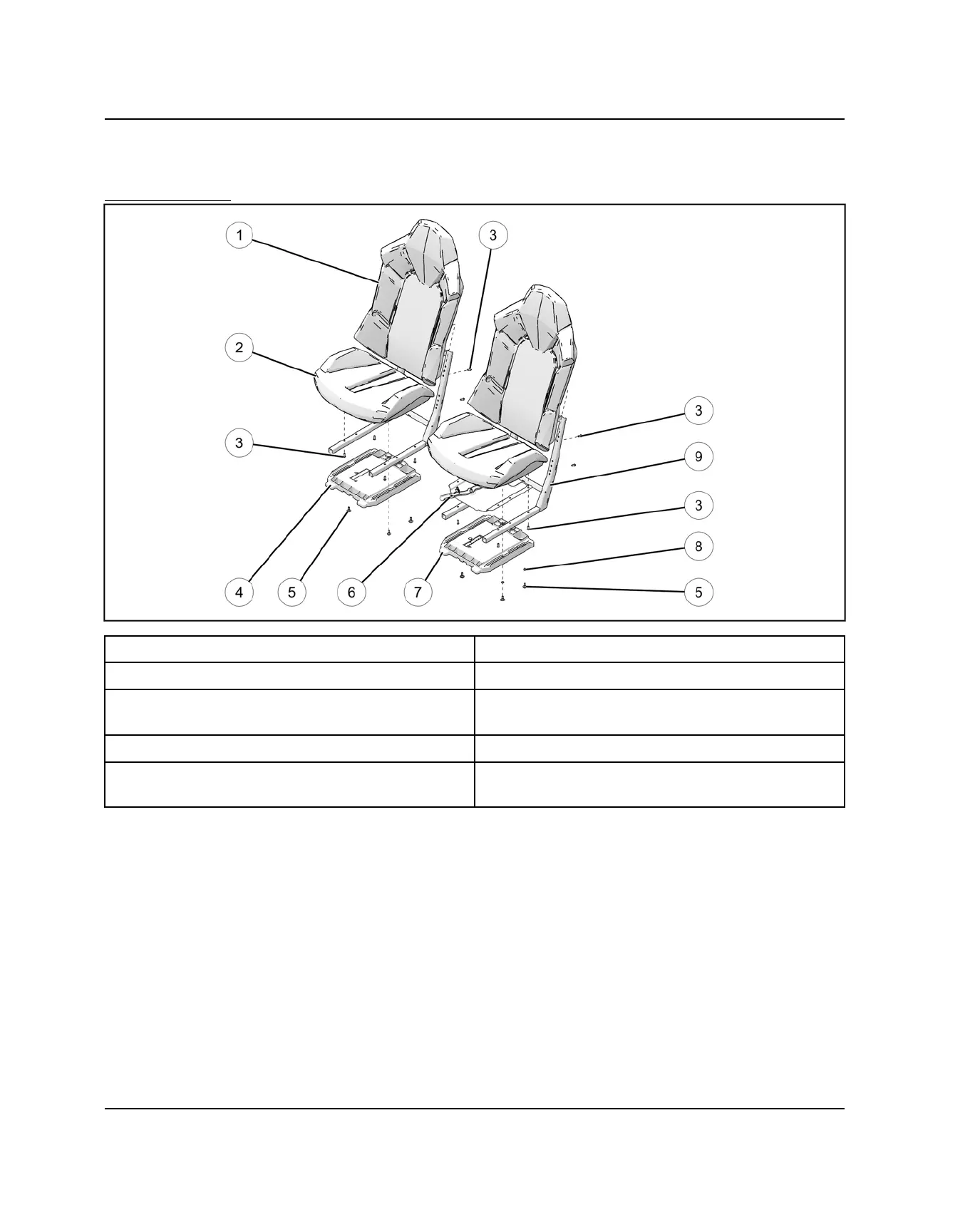

SEAT ASSEMBLY VIEW - GENERAL
SEAT ASSEMBLY
q
Seat Back Asm.
y
Seat Slider Asm.
w
Seat Bottom Asm.
u
Seat Slider Base Asm.
e
Seat Back / Bottom Mounting Fasteners
6 ft-lbs (8 Nm)
i
Tube Spacer
r
Seat Base Asm.
o
Seat Frame
t
Seat Base Mounting Fasteners
6 ft-lbs (8 Nm)
