9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

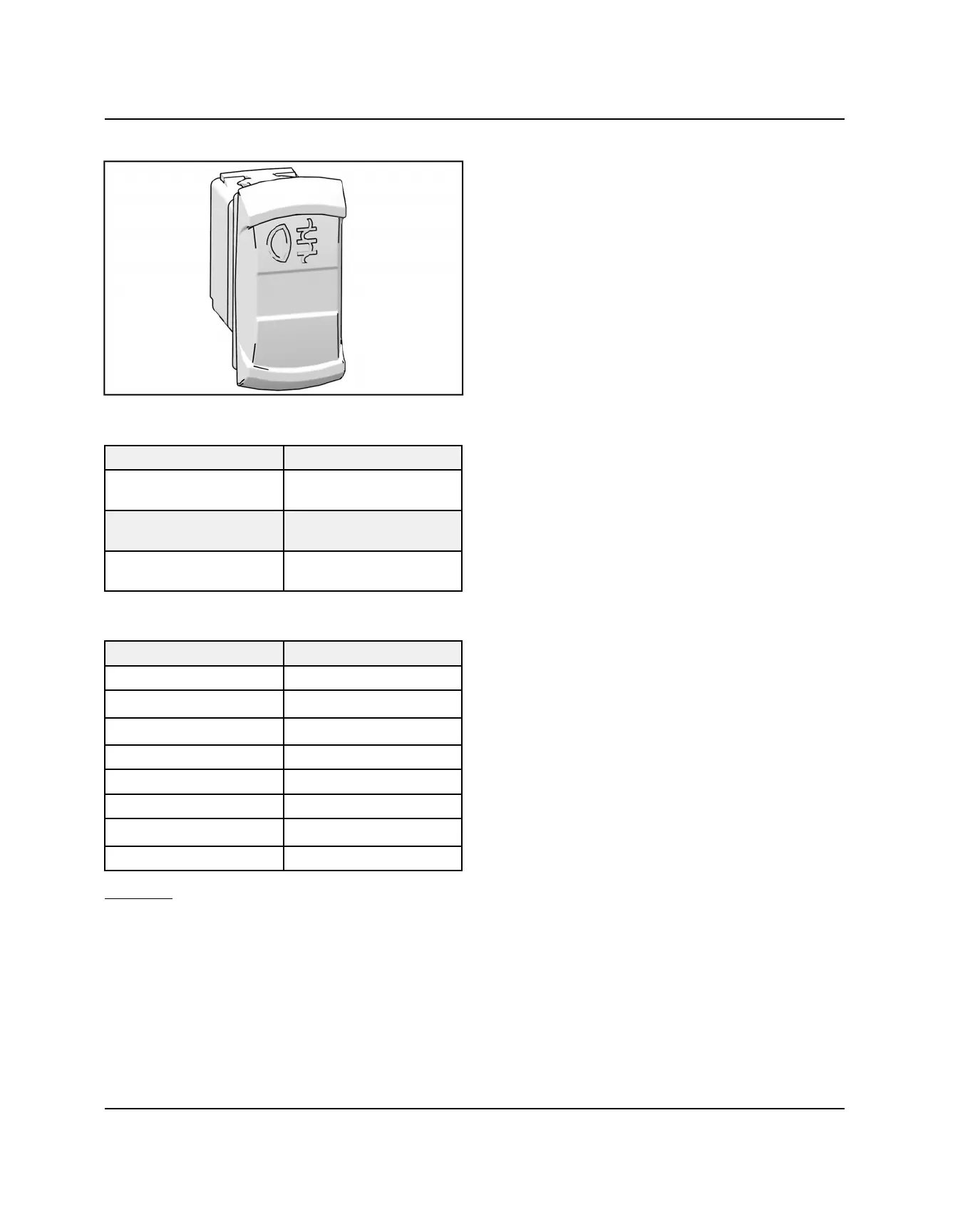

FOG LIGHT SWITCH
PIN CONTINUITY
SWITCH POSITION CONTINUITY BETWEEN
POS 1
ON
Pins 2 and 3
POS 2
None
—
POS3
Off
—
SWITCH FUNCTION
PIN FUNCTION
1
—
2
Fog Light Fuse Out
3
Fog Light
4
—
5
—
6
—
7
Ground Fog Light
8
—
TESTING
1. Disconnect the harness from the hazard switch.
2. Test outputs in both the ON and OFF positions. If any
of the tests fail, replace the switch.
• Move switch to ON. There should be continuity
between switch pins 2 and 3.
• Move the switch to OFF. There should be no continuity
between any switch pins.
CHASSIS / BODY ELECTRICAL
