9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

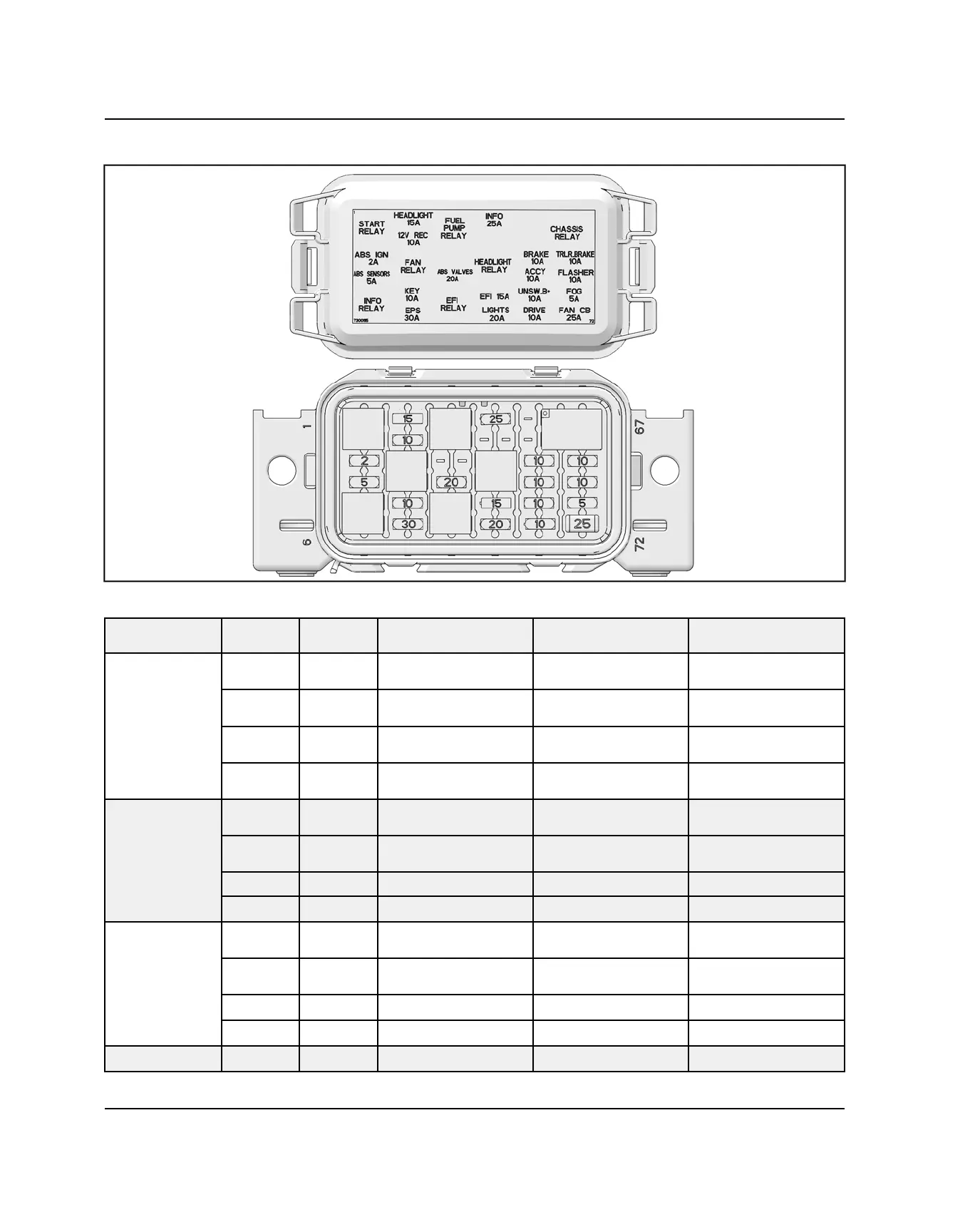

FUSE / RELAY CENTER - INTL (ABS)
RELAY DETAILS
FUSE / RELAY PIN
WIRE
COLOR
FROM COMPONENT TO COMPONENT FUNCTION
Start Relay
1 DG KEY SWITCH RELAY/FUSE BLOCK
KEYSWITCH, START
RELAY COIL IN
2 RD
SPLICE, START RELAY
FUSE LINK
RELAY/FUSE BLOCK START RELAY IN
7 DG/WH RELAY/FUSE BLOCK START SOLENOID
START SOLENOID, START
RELAY OUT
8 BN RELAY/FUSE BLOCK
ECM,CODE 13
GROUND, START RELAY
COIL
Fuel Pump Relay
25 RD/DB RELAY/FUSE BLOCK
SPLICE,EFI B+ 2
EFI B+, FUEL PUMP COIL
HI
26 OG RELAY/FUSE BLOCK
SPLICE,R/S B+2
KEY SWITCH B+, FUEL
PUMP RELAY IN
31 RD/BU RELAY/FUSE BLOCK FUEL PUMP & SENDER FUEL PUMP RELAY OUT
32 DG/YE
ECM,CODE 4
RELAY/FUSE BLOCK FUEL PUMP COIL LO
Chassis Relay
55 RD/DB RELAY/FUSE BLOCK
SPLICE,EFI B+ 2
EFI B+, CHASSIS RELAY
COIL
56 RD
SPLICE,CHASSIS RELAY
FUSIBLE LINK
RELAY/FUSE BLOCK
CHASSIS RELAY POWER
IN
67 RD/DG RELAY/FUSE BLOCK
SPLICE,CHASSIS
CHASSIS RELAY OUT
68 GY
ECM,CODE 4
RELAY/FUSE BLOCK CHASSIS RELAY COIL LO
Fan Relay
15 RD/DB
SPLICE,EFI B+ 2
RELAY/FUSE BLOCK
EFI B+, FAN COIL HI
CHASSIS / BODY ELECTRICAL
