9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

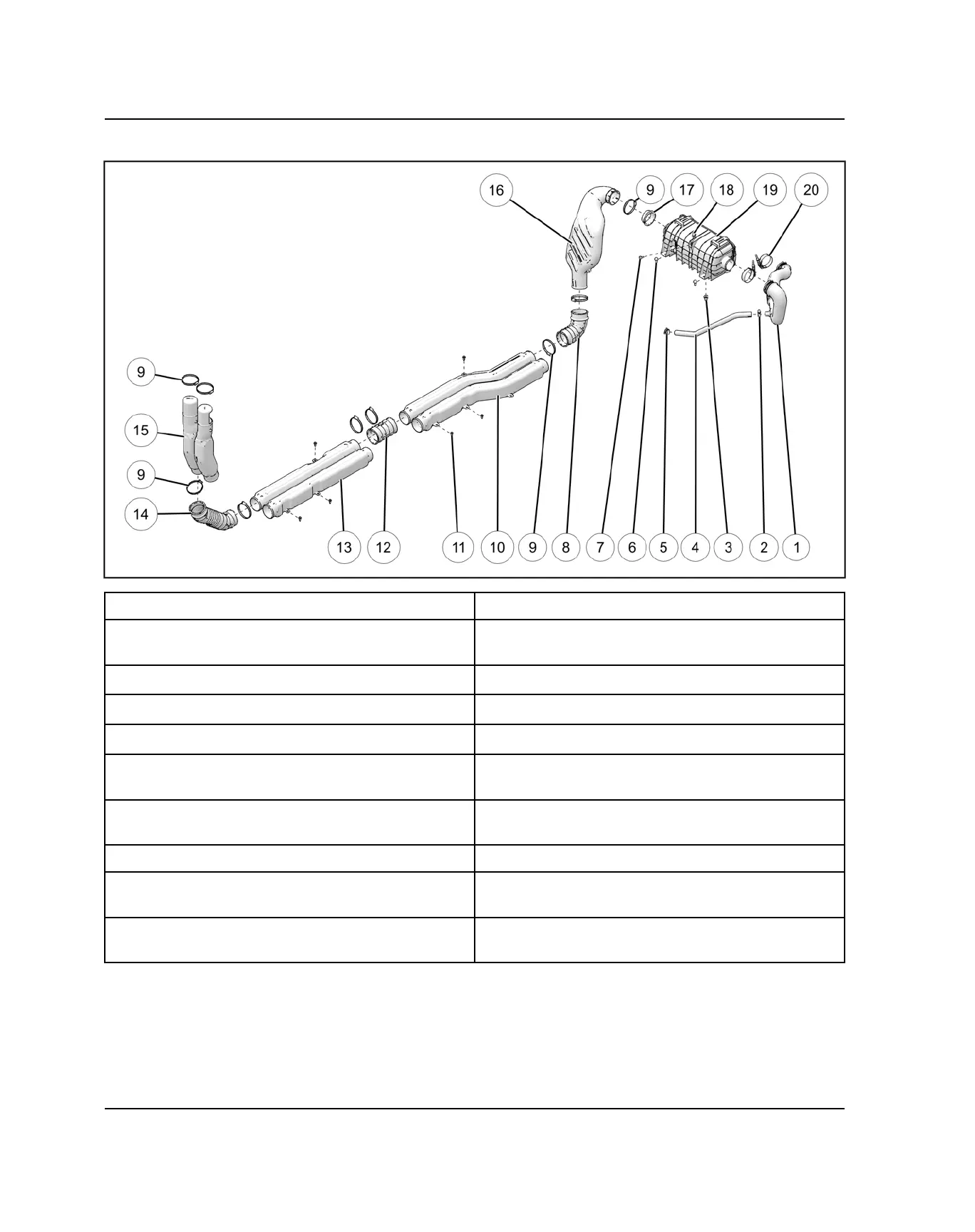

INTAKE ASSEMBLY VIEW - GENERAL 4 / GENERAL XP 4
q
Intake Duct Asm.
s
Plastic Push Rivet
w
Hose Clamp
24 lb-in (3 Nm)
d
Intake Duct Hose
e
Drain Plug
f
Front Floor Intake Duct
r
Engine Vent Hose
g
Intake Duct Hose
t
Spring Band Clamp
h
Front Intake Duct
y
Air Box Fastener
3.5 lb-ft (4.7 Nm)
j
Air Box In Intake Duct
u
Air Box Fastener
3.5 lb-ft (4.7 Nm)
k
Air Box Intake Seal
i
Intake Duct Hose
l
U-Nut
o
Gear Clamp
24 lb-in (3 Nm)
1(
Air Box Asm.
a
Rear Floor Intake Duct
2)
T-bolt Hose Clamp
49 lb-in (5.5 Nm)
