9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
10.43

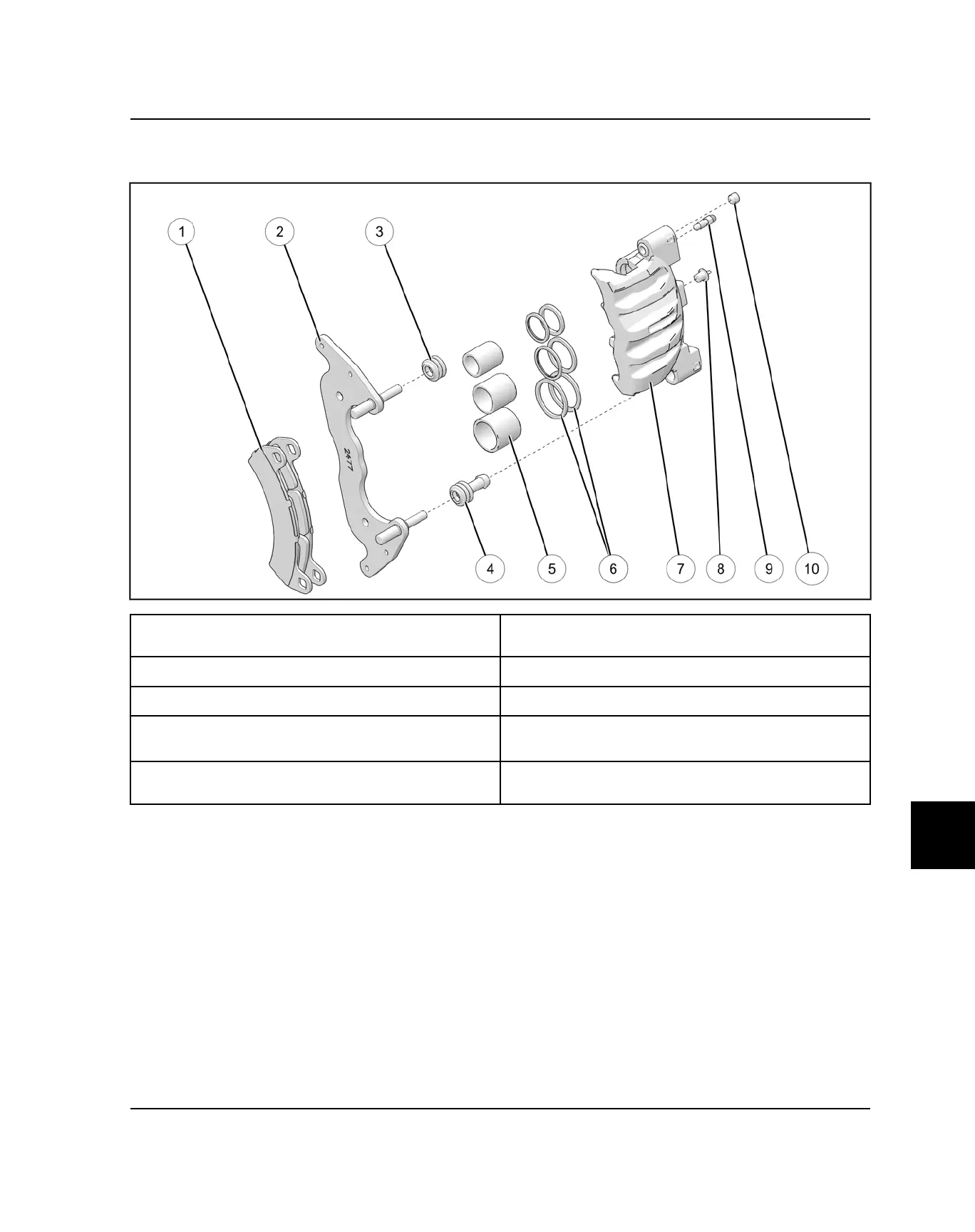

BRAKE CALIPER ASSEMBLY VIEW - GENERAL XP 4
FRONT CALIPER
q
Asm, Brake Pad
y
Square Ring
Lubricate with DOT 4 Brake Fluid
w
Asm, Caliper Mount
u
Caliper, Brake
e
Boot, Pin Seal
i
Cap, Plug
r
Boot, Pin Bushing
o
Bleeder Screw
4 lb-ft (5.4 Nm)
t
Piston, Brake
Lubricate with DOT 4 Brake Fluid
a
Bolt
BRAKE SYSTEM
