9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
10.45

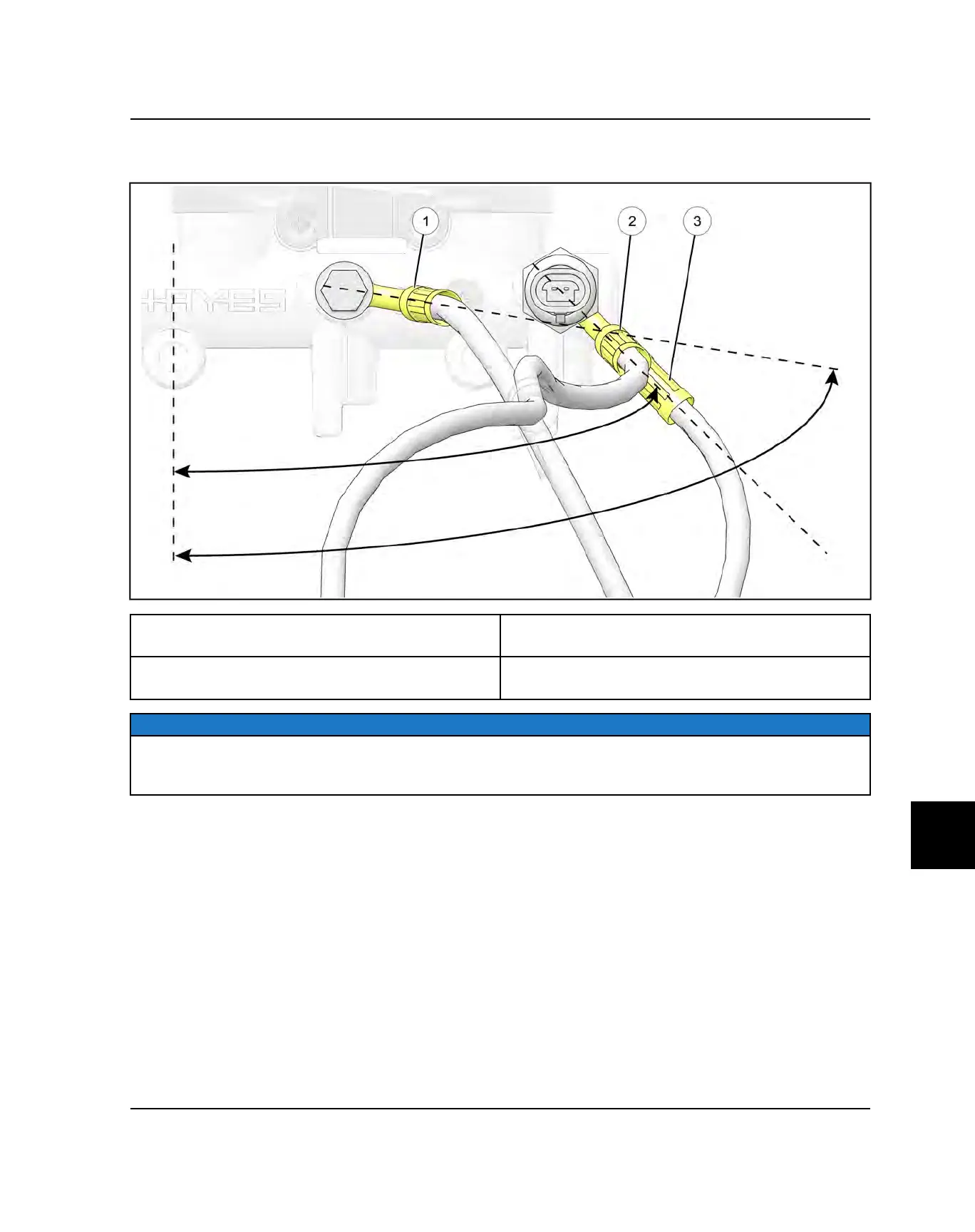

BRAKE LINE FITTING ORIENTATION - GENERAL XP / GENERAL XP 4
MASTER CYLINDER
q
Master Cylinder to Junction Block Fitting
80.0° ± 2.5°
e
Master Cylinder to Left Caliper Fitting
45.0° ± 2.5°
w
Master Cylinder to Right Caliper Fitting
45.0° ± 2.5°
NOTICE
The right
w
and left
e
front brake lines are stacked on top of each other and attach to the front port of the Master
Cylinder. The right front brake line is positioned on outside and the left front brake line is positioned on the inside. The
rear brake line
q
is attached to the rear port of the Master Cylinder.
BRAKE SYSTEM
