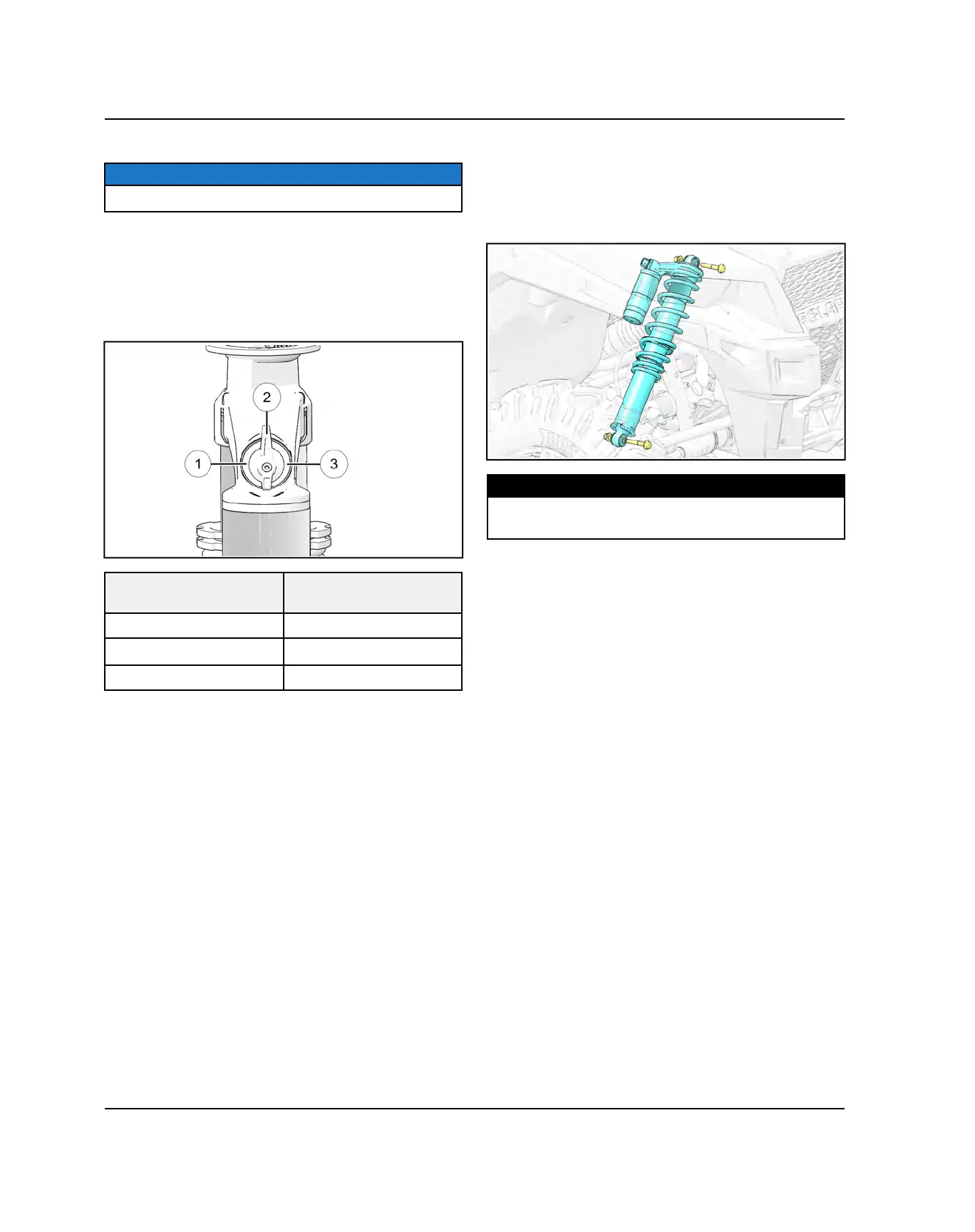

SHOCK COMPRESSION ADJUSTMENT
NOTICE
Not all models feature compression adjustable shocks.
The compression damping adjustment is located on the
shock ‘Piggyback’ reservoir of each shock. Damping
adjustments can be made without using any tools.
Turn the adjuster knob clockwise to increase
compression damping. Turn the adjuster knob counter-
clockwise to decrease compression damping.
SETTING
COMPRESSION
DAMPING
Softest Position 1
Factory
Position 2
Firmest Position 3
SHOCK INSTALLATION
1. With the vehicle raised and control arm supported,
install the shock into the mounting position.
2. Install shock mounting fasteners and torque to
specification.
TORQUE
Shock Mount Fasteners:
20 lb-ft (27 Nm) + 90°
3. Remove the control arm support and lower the
vehicle.
