13
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
13.21
WINCH SERVICE

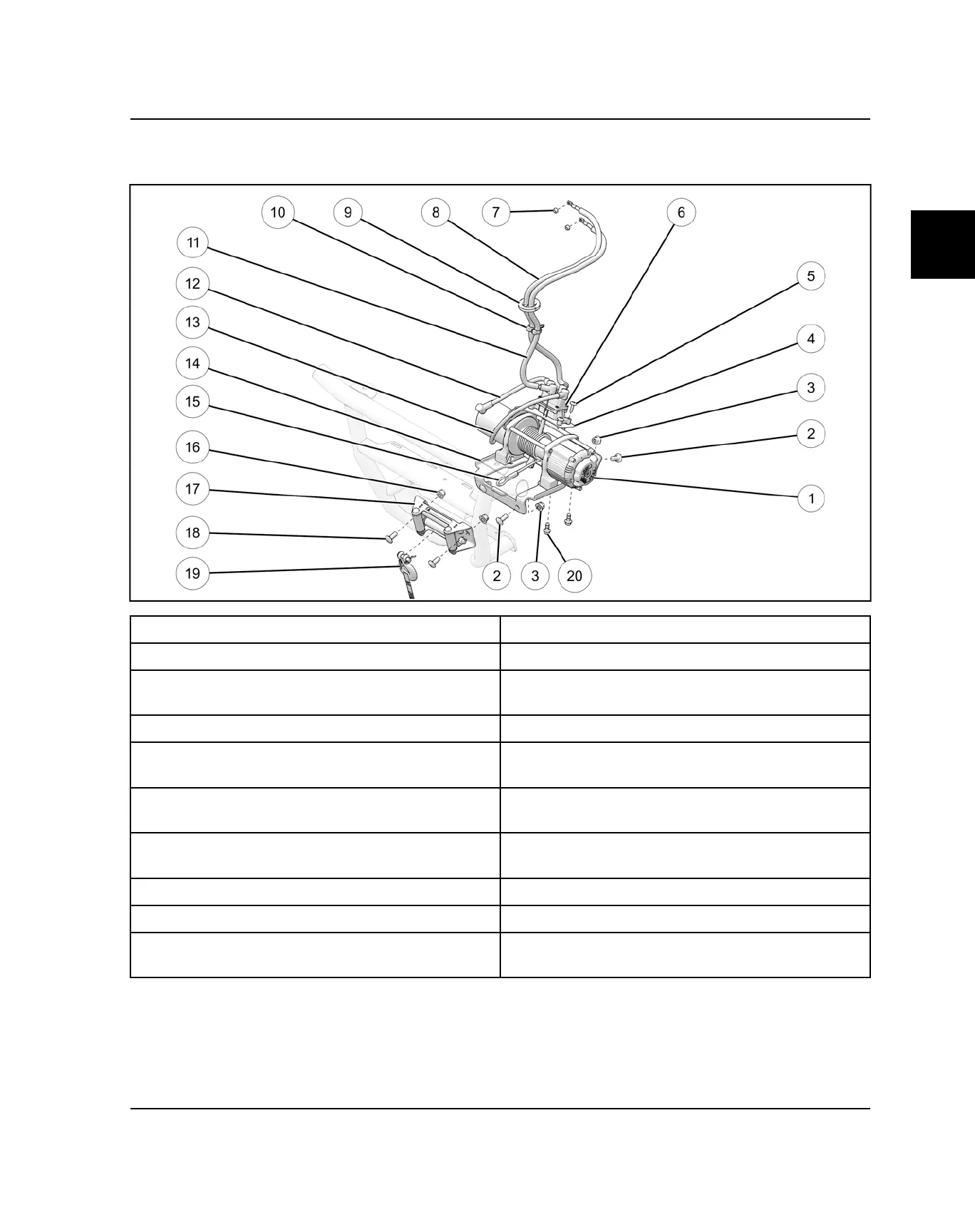

WINCH ASSEMBLY VIEW
q
Winch
s
Pulse / Contactor Cable
w
Winch Mount Bracket Fasteners
d
Winch / Contactor Cable
e
Nut
30 lb-ft (41 Nm)
f
Winch / Contactor Cable
r
Winch Contactor Mount Bracket
g
Winch Mount Bracket
t
Winch Contactor Fasteners
6 ft-lbs (8 Nm)
h
Winch Cable
y
Winch Contactor
j
Nut
30 lb-ft (41 Nm)
u
Nut
24 in-lbs (3 Nm)
k
Winch Fairlead Roller
i
Pulse / Contactor Cable
l
Winch Fairlead Roller Fasteners
o
Electrical Grommet
1(
Winch Latch Hook
a
Attachment Clip
2)
Winch Fasteners
16 lb-ft (22 Nm)
FACTORY-INSTALLED OPTIONS
