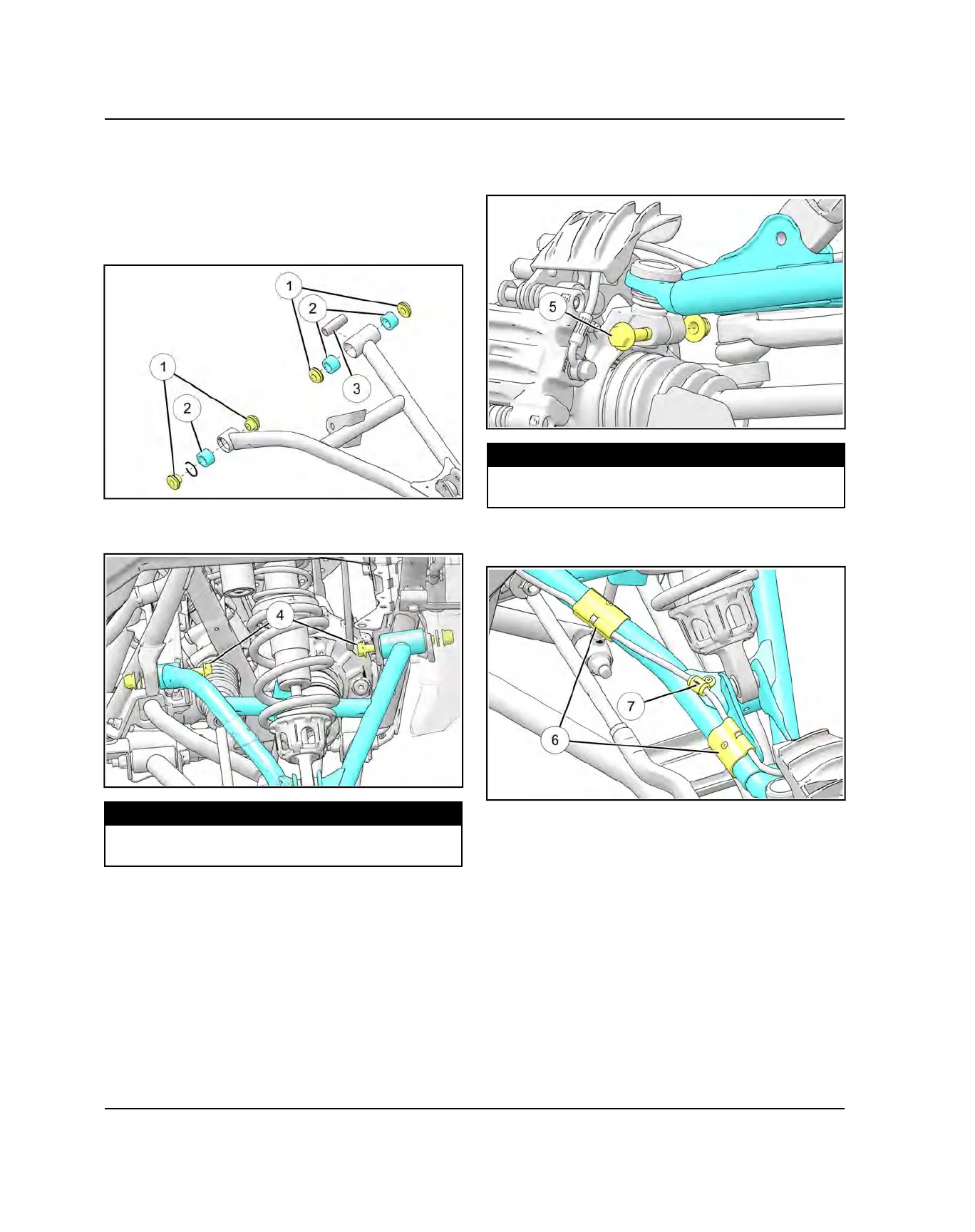

FRONT CONTROL ARM INSTALLATION
UPPER CONTROL ARM
1. Install NEW ball joint into control arm. Refer to “Ball
Joint Installation” page 9.52 procedure.
2. Insert NEW pivot caps
q
, control arm bushings
w
,
and pivot tube
e
into new control arm.
3. Install upper control arm assembly onto vehicle
frame. Torque NEW fasteners
r
to specification.
TORQUE
Front Inner Control Arm Fasteners:
81 lb-ft (110 Nm)
4. Insert upper control arm ball joint end into the bearing
carrier. Install upper ball joint pinch bolt
t
into the
bearing carrier and torque bolt to specification.
TORQUE
Ball Joint Pinch Bolts:
51 lb-ft (70 Nm)
5. Install brake line mounting brackets
y
and routing
clamp
u
onto the control arm.
