7
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
7.21

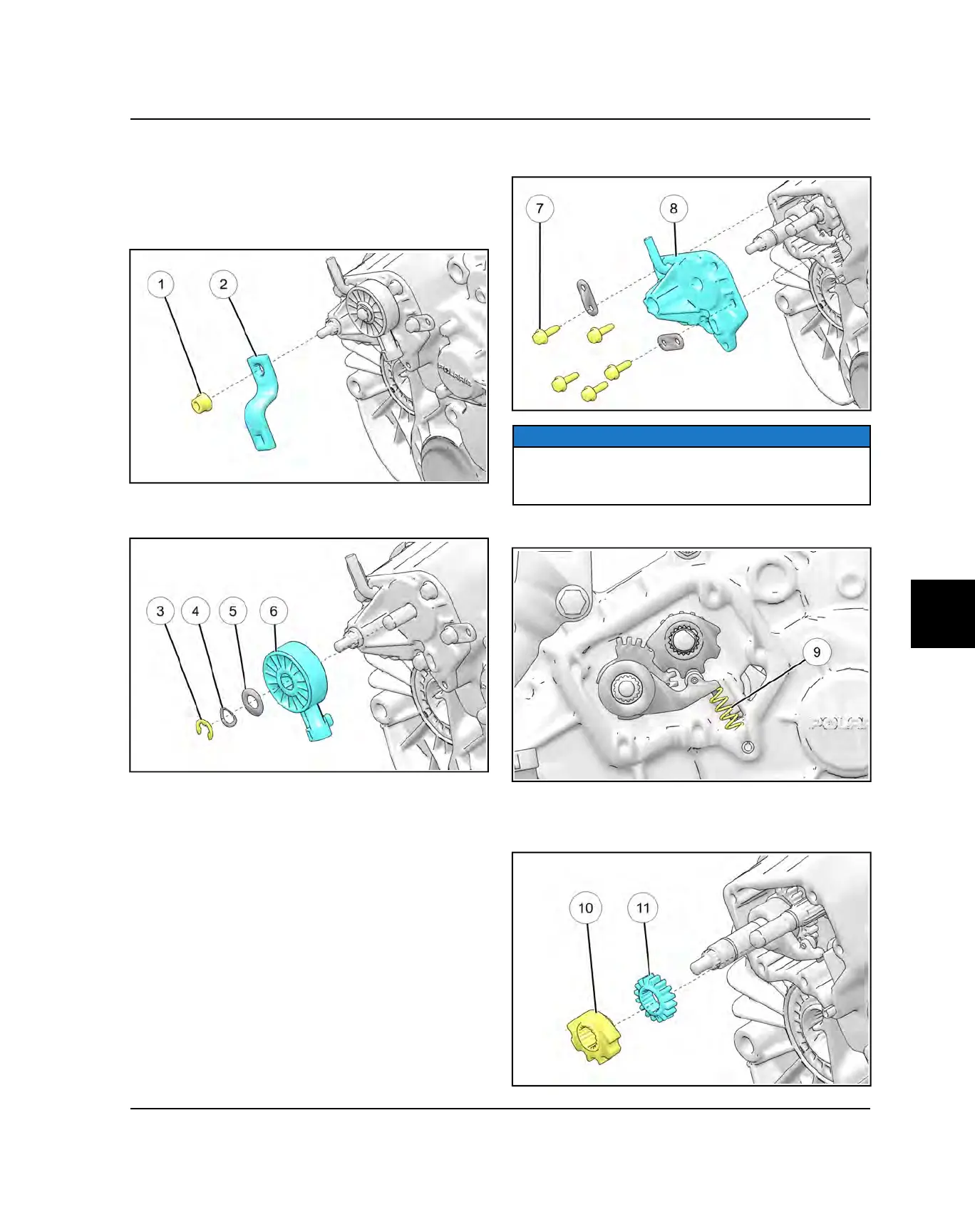

TRANSMISSION DISASSEMBLY
1. Place transmission in High gear before disassembly.
2. Drain and properly dispose of the transmission
lubricant.
3. Remove the bellcrank nut
q
and bellcrank
w
.
4. Remove E-clip
e
that retains spring washer
r
, flat
washer
t
and gear switch
y
. Remove the switch.
5. Remove the sector cover bolts
u
and remove the
sector cover
i
.
NOTICE
Removal can be aided by using your thumbs to press in
on the shafts while pulling out the cover with your
fingers.
6. Remove the compression spring
o
.
7. Remove the detent star
a
. Note how the detent star
fits onto the splined shaft with the raised edge facing
outward for reassembly.
TRANSMISSION
