7.20
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

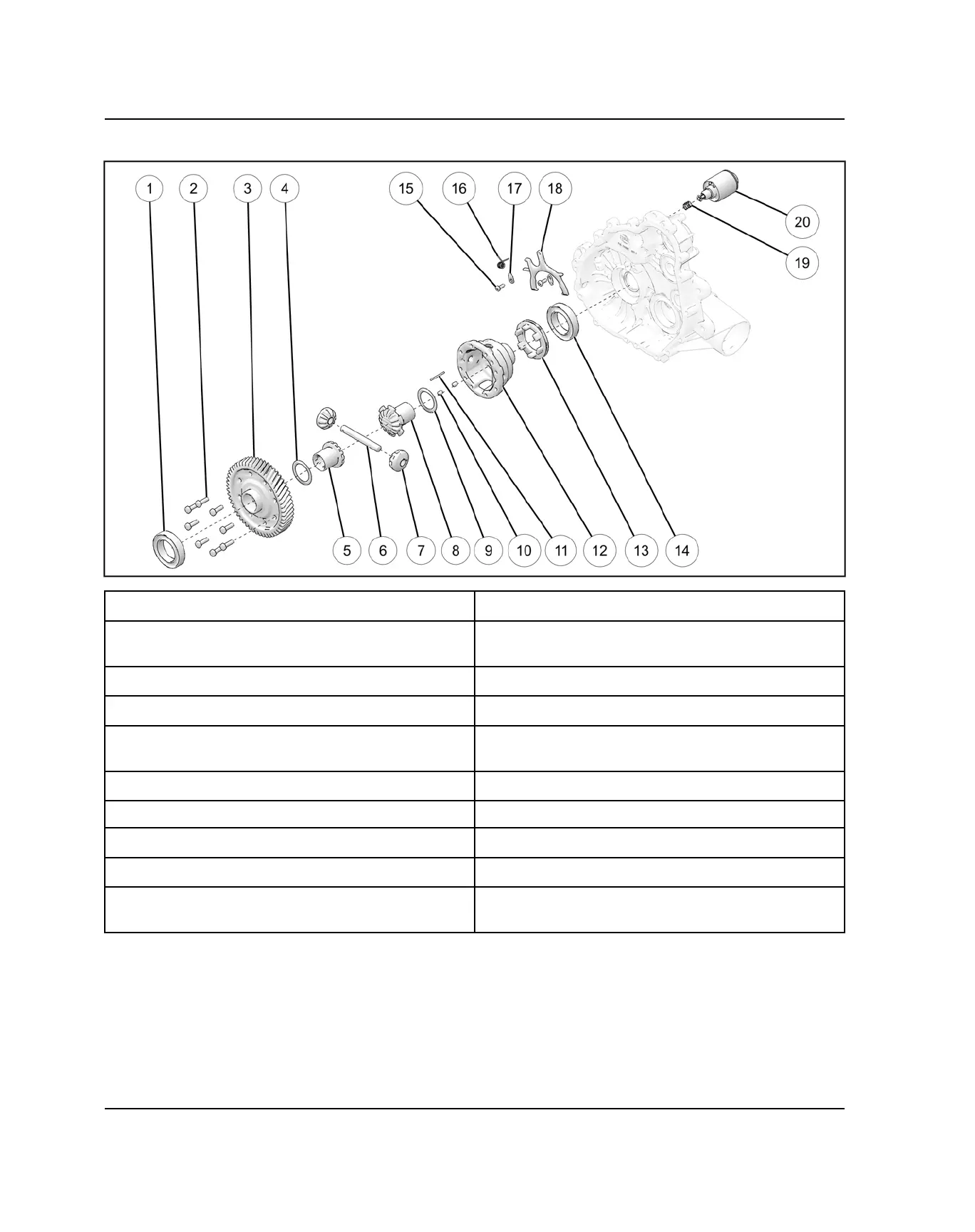

DIFFERENTIAL COMPONENTS
q
Bearing
s
Dowel Pin
w
Ring Gear Fasteners
28 ft-lbs (38 Nm)
d
Differential Carrier
e
Ring Gear
f
Engagement Dog
r
Thrust Washer g
Bearing
t
Output Gear
h
Shift Fork Retainer Fastener
9 ft-lbs (12 Nm)
y
Differential Pin j
Torsion Spring
u
Pinion Gear
k
Retainer
i
Output Gear
l
Shift Fork
o
Thrust Washer
1(
Solenoid Spring
a
Dowel Pin
2)
Solenoid
25 ft-lbs (34 Nm)
