EXHAUST SERVICE

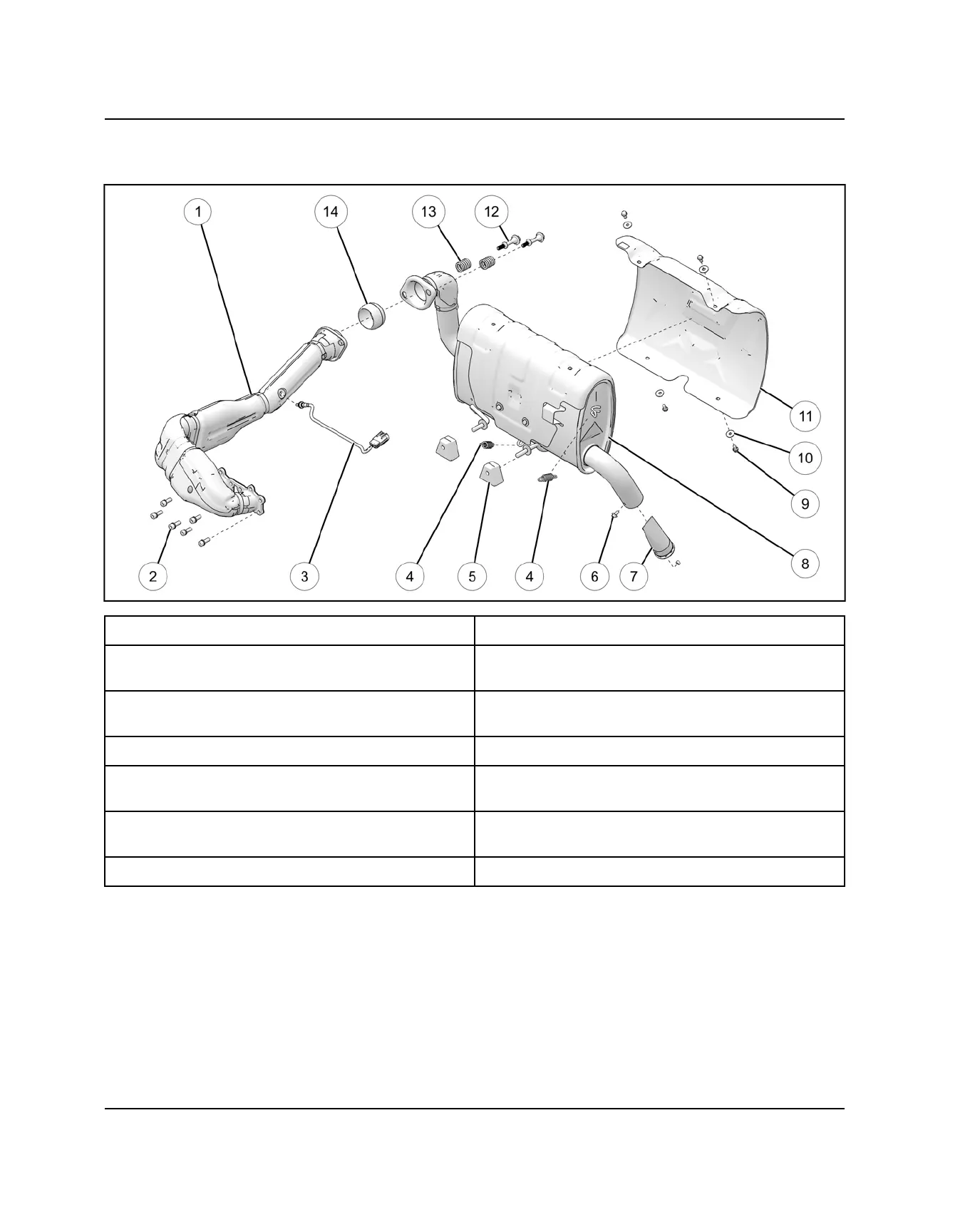

EXHAUST SYSTEM ASSEMBLY VIEW
q
Headpipe Asm.
i
Silencer Asm.
w
Headpipe Fasteners
18 lb-ft (24 Nm)
o
Outer Silencer Shield Fasteners
10 ft-lbs (Nm)
e
Oxygen Sensor
13 lb-ft (18 Nm)
a
Washer
r
Spring
s
Outer Silencer Shield
t
Isolator Mount
d
Exhaust Stud
21 lb-ft (28 Nm)
y
Spark Arrestor Fastener
8 ft-lbs (11 Nm)
f
Exhaust Spring
u
Spark Arrestor
g
Double Spherical Gasket
