13.16
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

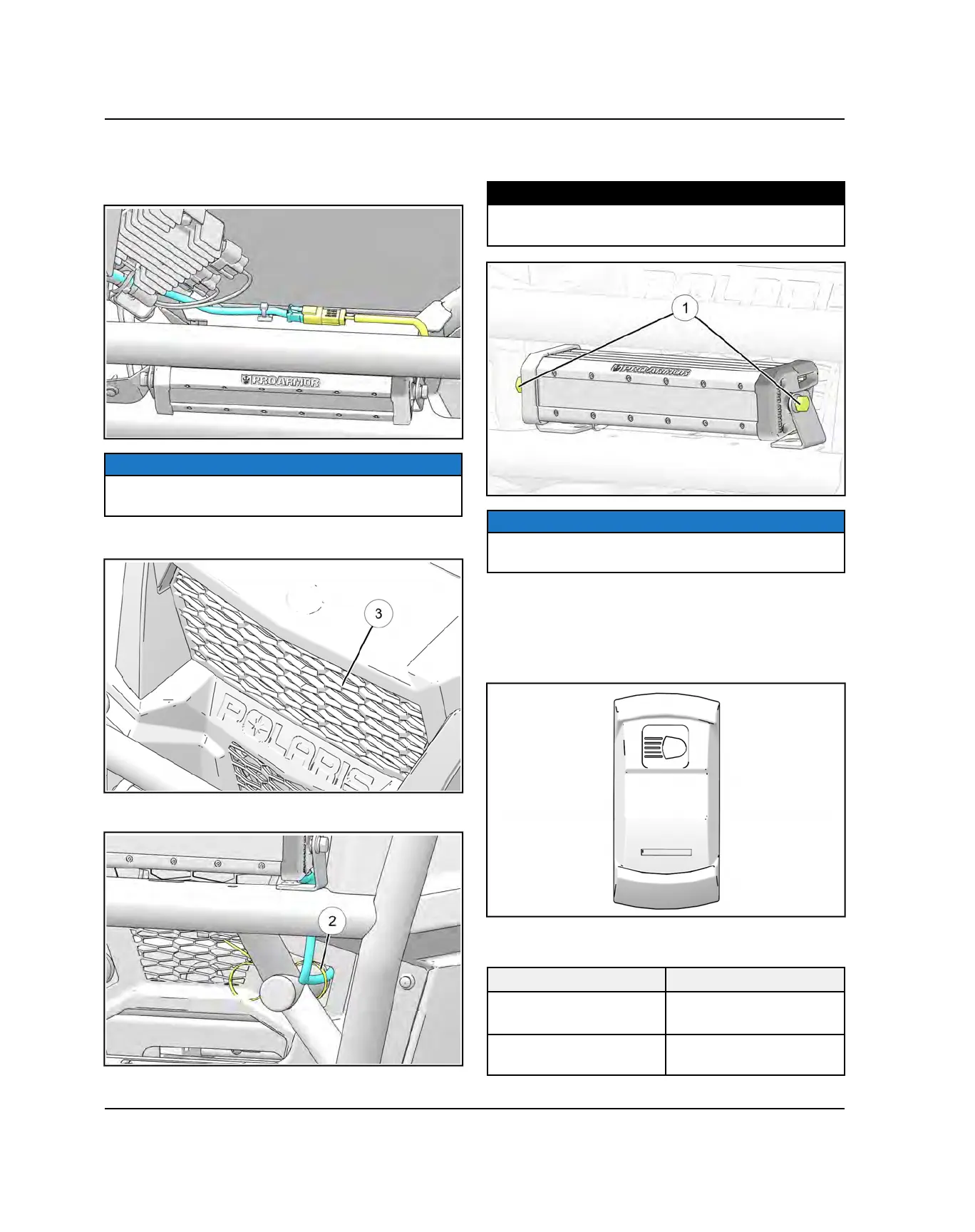

LIGHT BAR INSTALLATION
1. Connect light bar electrical connector to the light bar
electrical harness.
NOTICE
Some parts removed from image to improve illustration
clarity.
2. Install bumper screen
e
.
3. Install cable tie
w
to secure wire lead to front bumper.
4. Install light bar assembly mounting hardware
q
.
Torque to specification.
TORQUE
Light Bar Mounting Hardware:
35 lb-in (3.92 Nm)
NOTICE
Light bar should be aimed horizontally for best
performance.
5. Confirm light illuminates with keyswitch in ACC and
ON positions.
LIGHT BAR SWITCH
SWITCH CONTINUITY
SWITCH POSITION CONTINUITY BETWEEN
Off
No continuity between
pins 2 and 3
On
Continuity between pins 2
and 3
FACTORY-INSTALLED OPTIONS
