Polaris General 2020

13
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
13.17

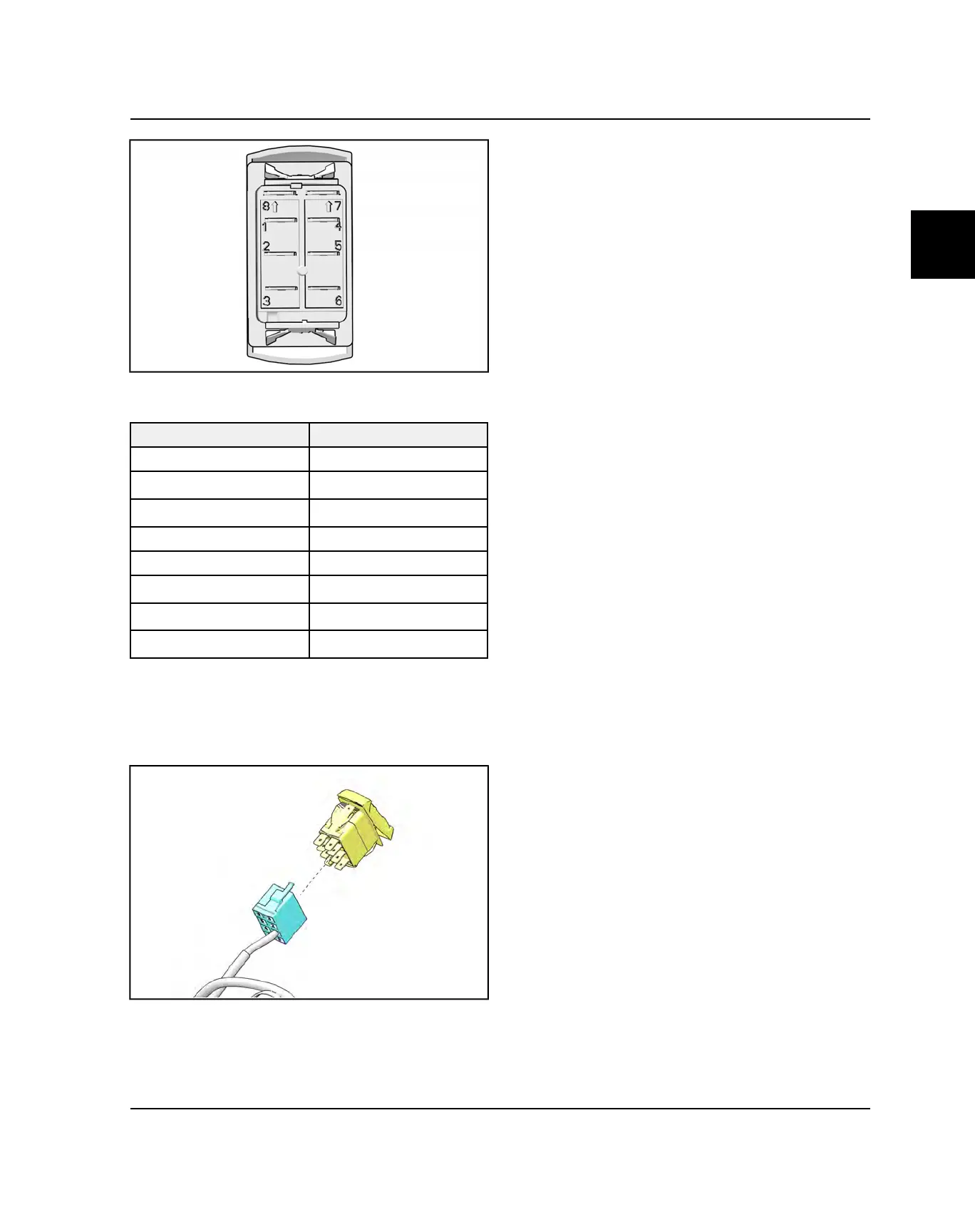

PIN FUNCTION
PIN FUNCTION
1
—
2
Key ‘On’ signal in
3
Switch ‘On’ signal out
4
—
5
—
6
Key ‘On’ signal in
7
Switch lamp ground
8
Switch lamp ground
TESTING
1. Disconnect the light switch harness on the back side
of the connector by depressing the connector locks
and pulling on the connector. Do not pull on the
wiring.
2. Test between the single set of outputs (ON/OFF). If
the test below fails, replace the switch assembly.
• Put the switch in the OFF position. There should be
no continuity (Open Loop) between switch pins 2
and 3.
• Put the switch on the ON position. There should be
continuity (< 1 Ω) between switch pins 2 and 3.
FACTORY-INSTALLED OPTIONS
