9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
11.43

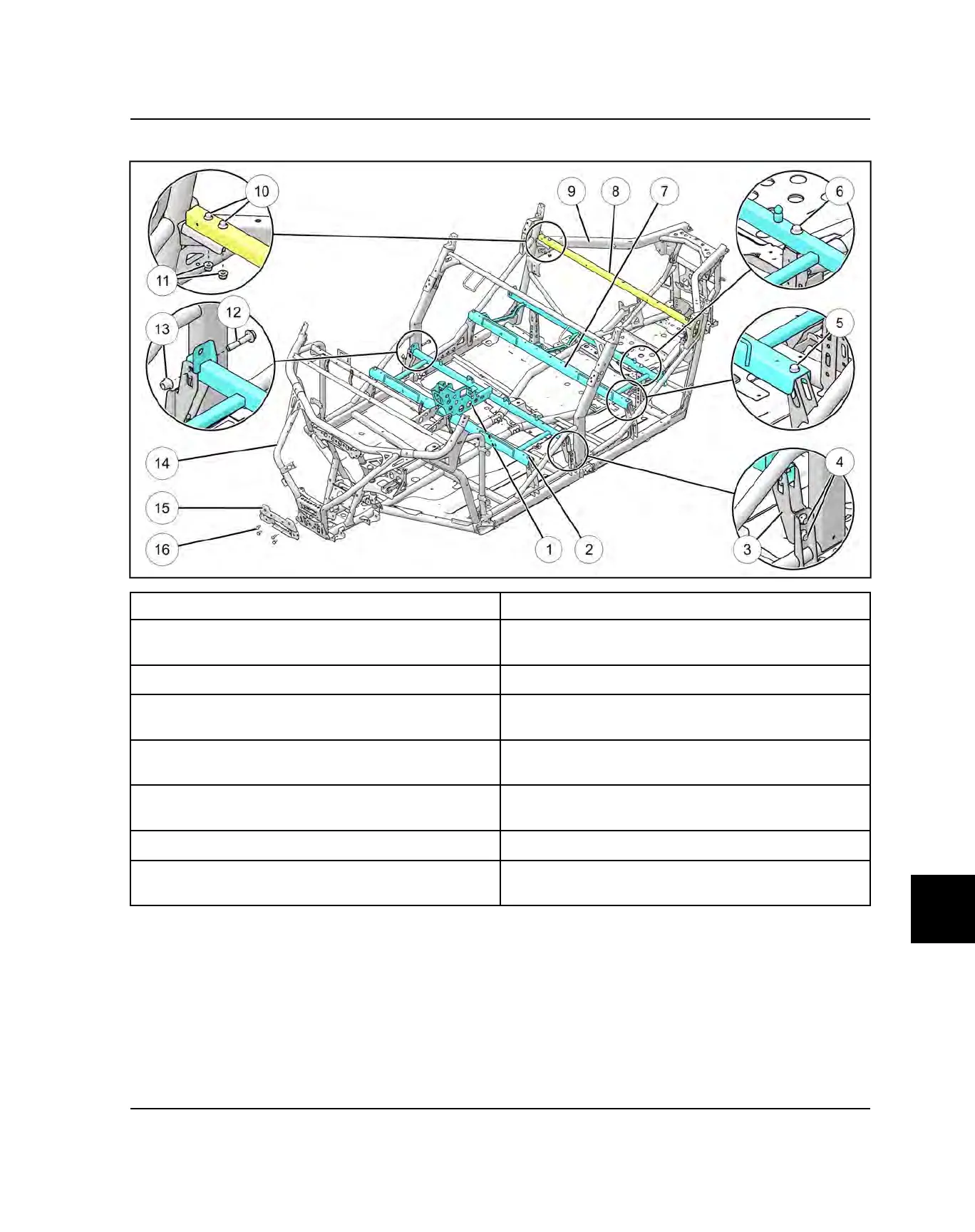

FRAME ASSEMBLY VIEW - GENERAL 4
q
Front Seat Base Frame
o
Main Frame
w
Front Seat Base Frame M8 Fasteners
10 ft-lbs (14 Nm)
a
Top Frame Fasteners
22 ft-lbs (30 Nm)
e
Seat Support Bracket
s
Nut
r
Lower Seat Support Bracket M10 Fasteners
30 ft-lbs (41 Nm)
d
Upper Seat Support Bracket M10 Fasteners
30 ft-lbs (41 Nm)
t
Rear Seat Base Frame M8 Fasteners
10 ft-lbs (14 Nm)
f
Nut
y
Rear Seat Base Frame M10 Fasteners
30 ft-lbs (41 Nm)
g
Front Frame
u
Rear Seat Base Frame
h
Suspension Mount Bracket
i
Top Frame
j
Suspension Mount Bracket Fasteners
18 ft-lbs (24 Nm)
BODY / FRAME
