7
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
7.11
ASSEMBLY VIEWS - TRANSMISSION

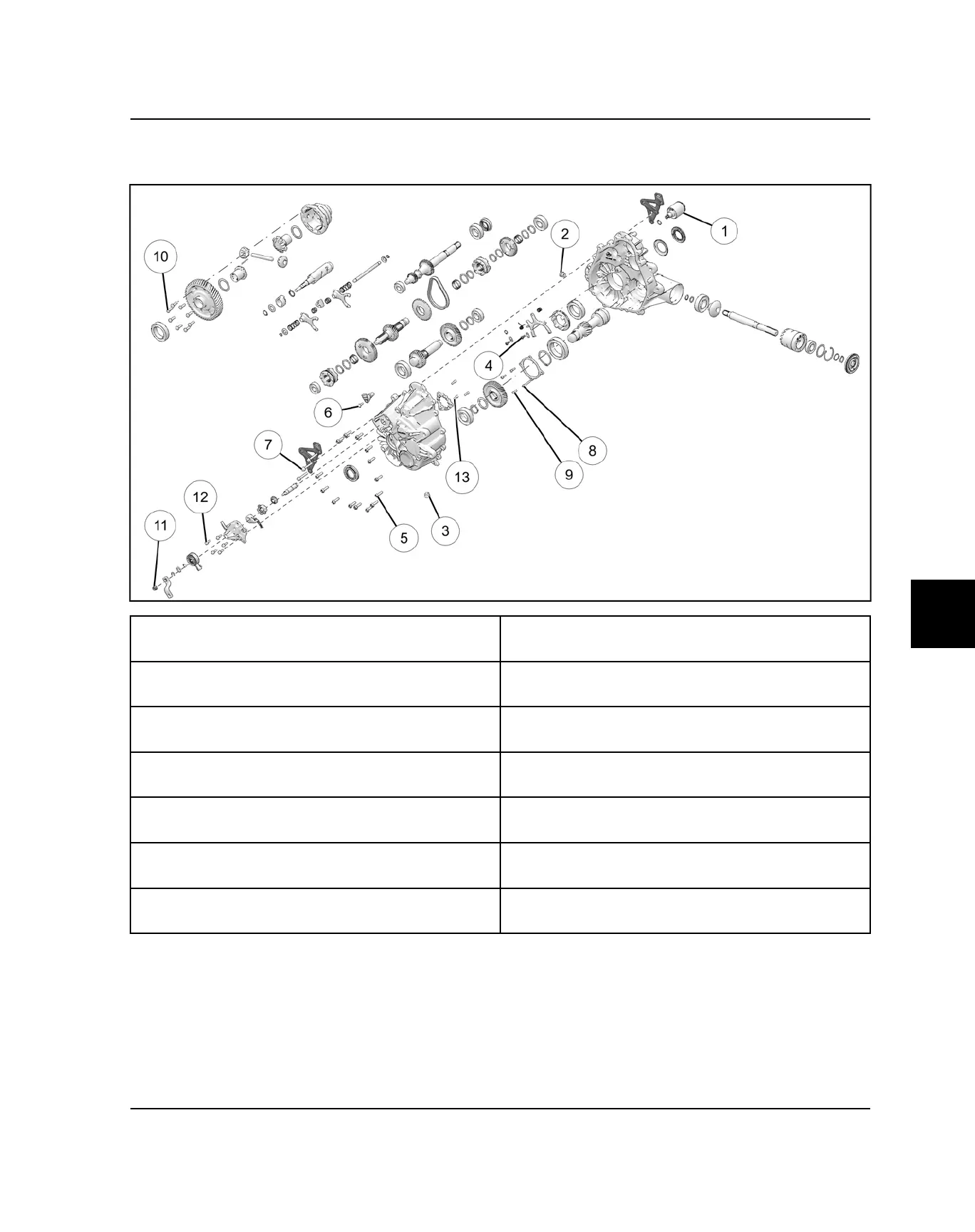

TRANSMISSION ASSEMBLY VIEW
q
Turf Solenoid
25 ft-lbs (34 Nm)
i
Bearing Cover Fastener
9 ft-lbs (12 Nm)
w
Fill Plug
12 ft-lbs (16 Nm)
o
Bearing Cover Fastener (QTY 3)
9 ft-lbs (12 Nm)
e
Drain Plug, Magnetic
12 ft-lbs (16 Nm)
a
Ring Gear Fastener (QTY 8)
28 ft-lbs (38 Nm)
r
Fork Retainer Fastener
9 ft-lbs (12 Nm)
s
Bellcrank Nut
14 ft-lbs (19 Nm)
t
Transmission Case Fastener (QTY 14)
20 ft-lbs (27 Nm)
d
Sector Cover Fastener (QTY 5)
10 ft-lbs (14 Nm)
y
Speed Sensor Fastener
10 ft-lbs (14 Nm)
f
Park Plate Fastener (QTY 3)
9 ft-lbs (12 Nm)
u
Rear Mount Bracket Fastener (QTY 2)
20 ft-lbs (27 Nm)
TRANSMISSION
