BODY - GENERAL 4 / GENERAL XP 4

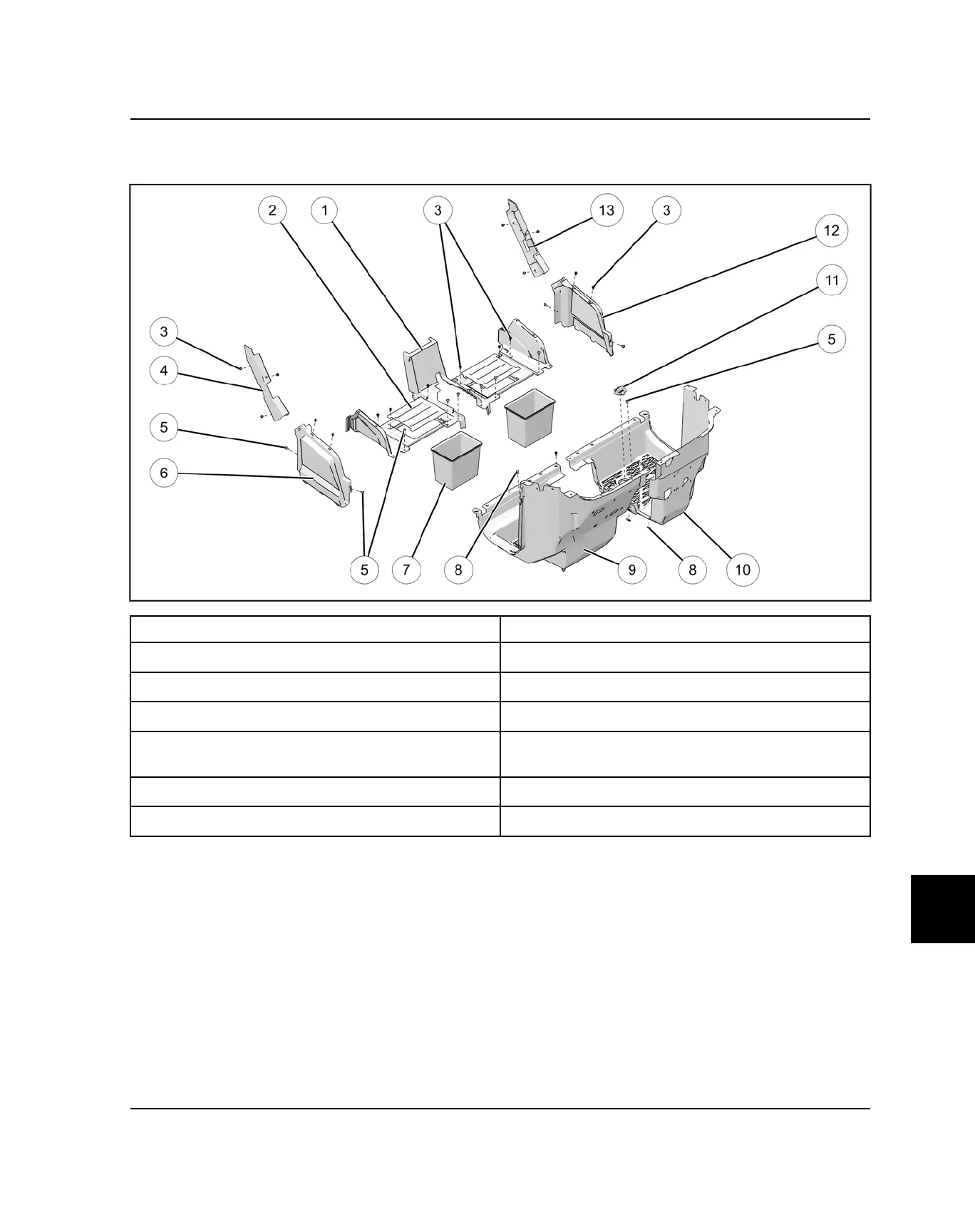

FRONT CLOSEOFF & FLOOR ASSEMBLY VIEW - GENERAL 4 / GENERAL XP 4
q
Front Closeoff Panel
i
U-Nut
w
Service Panel
o
RH Floor Clip
e
Plastic Push Rivet
a
LH Floor Clip
r
RH Upper Center Fender
s
Floor Drain Plug
t
Body Fastener
3.5 lb-ft (4.7 Nm)
d
LH Lower Center Fender
y
RH Lower Center Fender
f
LH Upper Center Fender
u
Underseat Storage Bin
