FRONT STABILIZER BAR
INSTALLATION

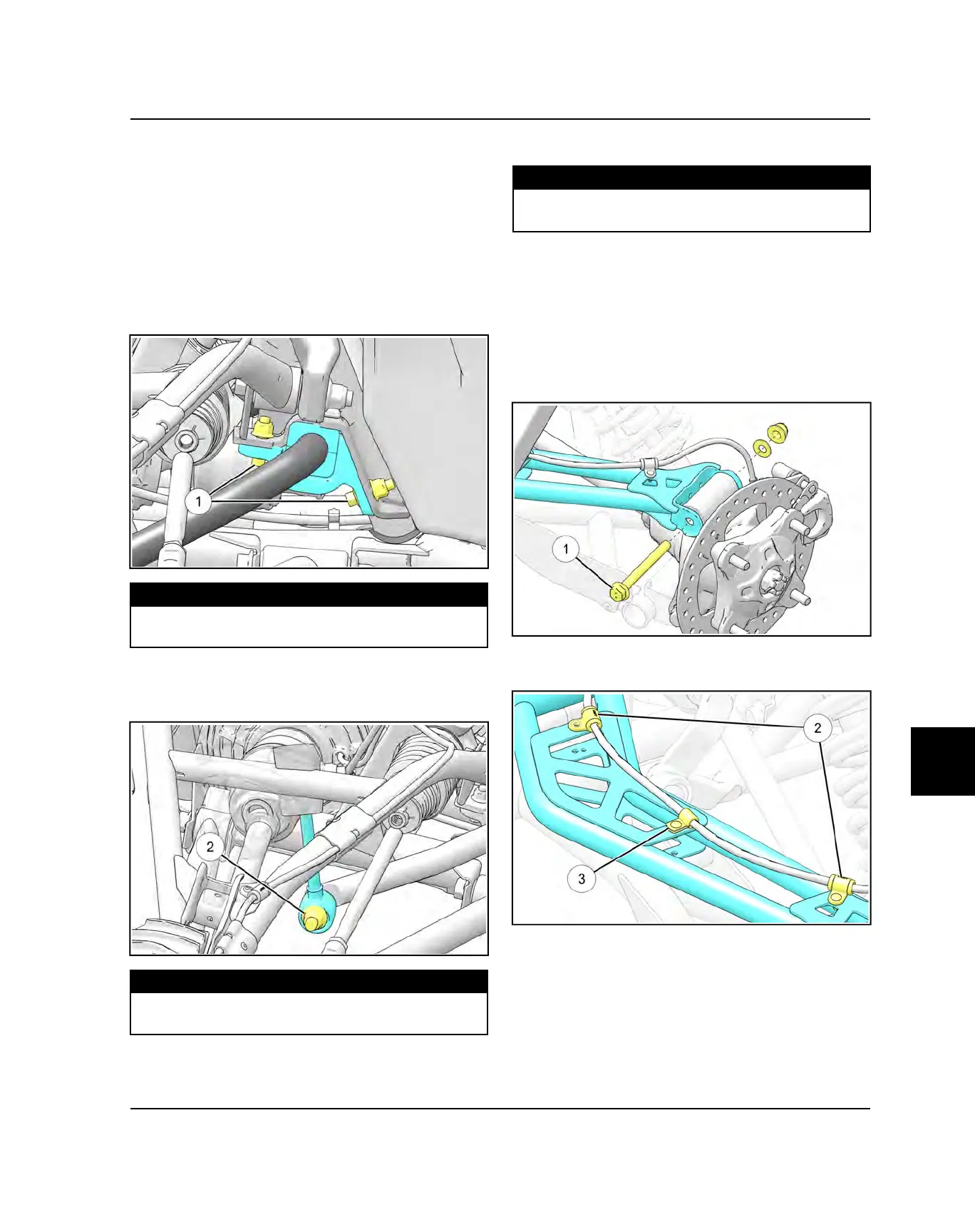

1. Carefully install stabilizer. Align mounting brackets
with marks from removal.
2. Install bushings and mounting brackets onto stabilizer
bar. Align mounting brackets with marks from
removal.
3. Install the fasteners
q
retaining the stabilizer bar
mounts / bushings to the vehicle frame. Torque
fasteners to specification.
TORQUE
Front Stabilizer Bar Mount Fasteners:
22 lb-ft (30 Nm)
4. Install the fasteners
w
retaining the stabilizer bar to
the linkage on each side of the vehicle. Torque
fasteners to specification.
TORQUE
Front Stabilizer Bar Link Fasteners:
81 lb-ft (110 Nm)
5. Install wheels and torque lugs to specification.
TORQUE
Wheel Nuts:
120 lb-ft (163 Nm)
REAR CONTROL ARM REMOVAL
UPPER CONTROL ARM
1. Elevate and safely support the front of the vehicle and
remove the wheels.
2. Remove fastener
q
holding upper control arm to
bearing carrier.
3. Remove the brake line routing clamps
w
and wire/
tube clamp
e
from the control arm.
