Polaris General 2020

6
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
6.13
DRIVE CLUTCH SERVICE

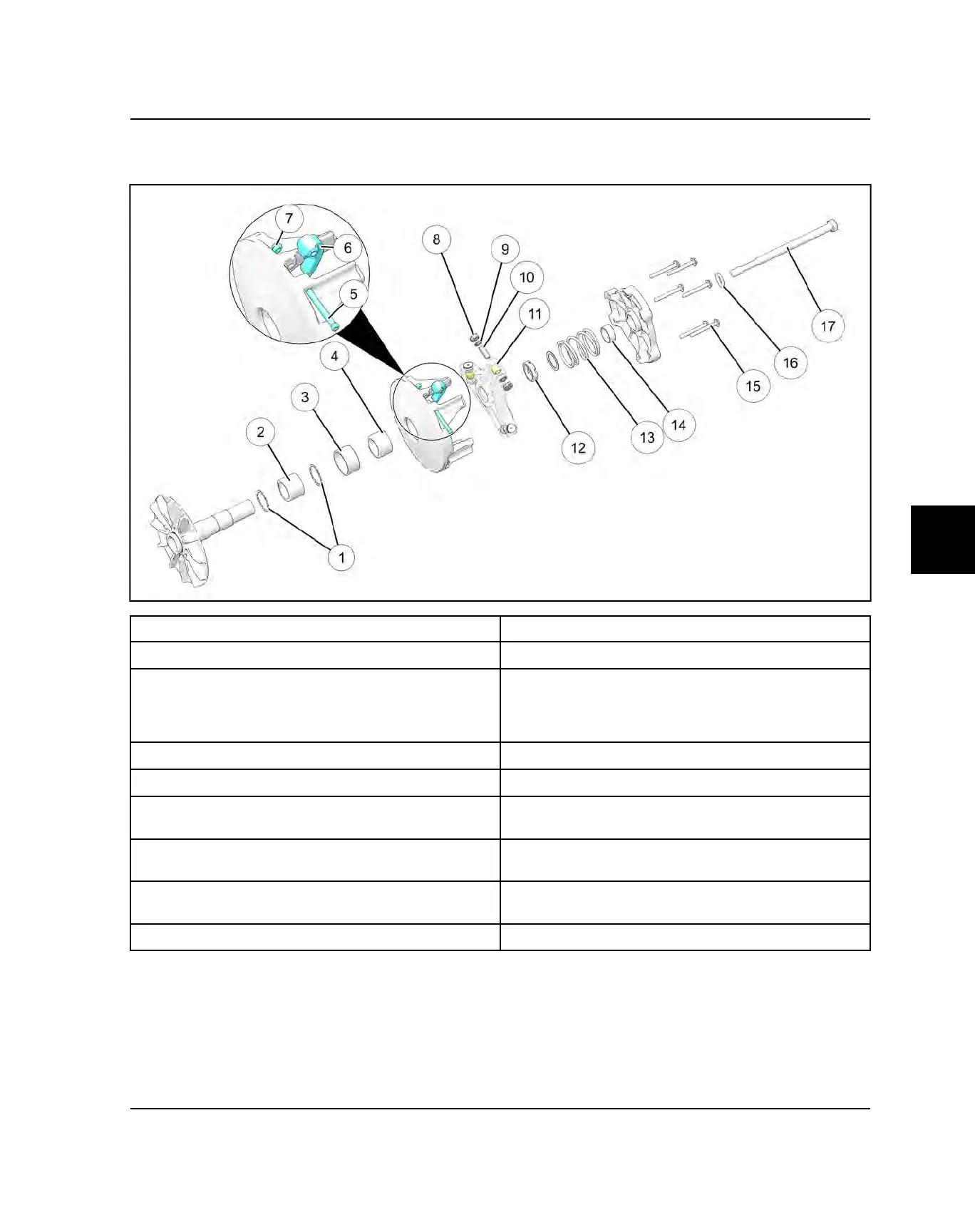

DRIVE CLUTCH ASSEMBLY VIEW
q
Washer, Clutch
a
Pin, Roller
w
Bearing, Needle
s
Asm, Roller and Bushing washer
e
Bearing
d
Nut, Jam
250 ft-lbs (339 N·m)
(Apply 0.1 mL Loctite® 7088 Primer and 0.1 mL
Loctite® 620™)
r
Spacer, Clutch Short
f
Spring, Clutch
t
Bolt, Shoulder
g
Cover, Bearing
y
Weight, Shift
h
Screw
9 ft-lbs (12 N·m)
u
Nut, Flex Lock
20 in-lbs (2 N·m)
j
Washer
i
Button, Clutch
k
Screw
96 lb-ft (130 Nm)
o
Washer, Clutch Spider Roller
PVT SYSTEM
