12.70
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
INTERNATIONAL MODELS

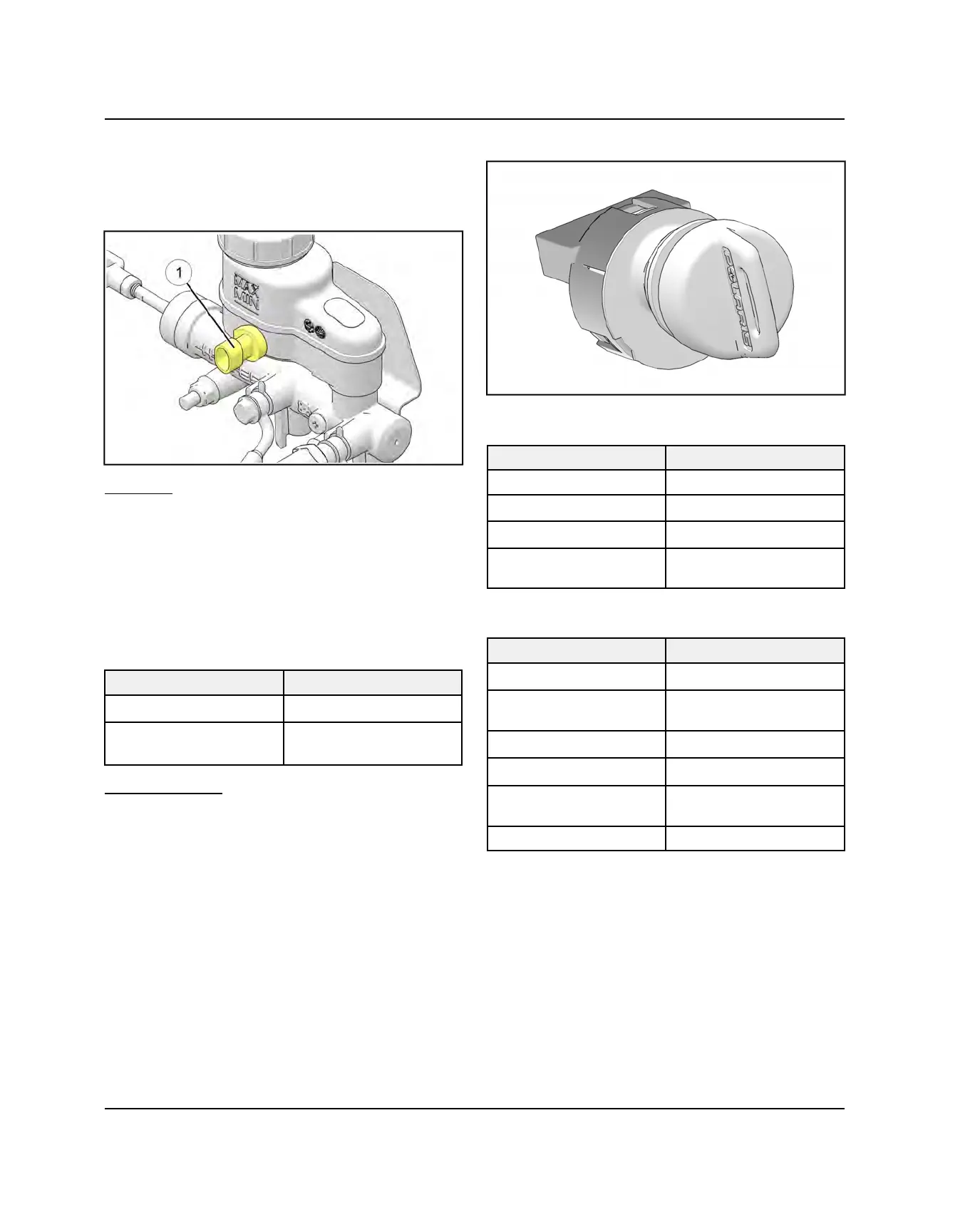

BRAKE FLUID LEVEL SWITCH
The brake fluid level switch
q
is located on the master
cylinder just below the MAX/MIN marks.
TESTING
1. Disconnect wire harness from fluid level switch.
2. Connect an ohmmeter across switch pins and check
for continuity. There should be continuity between
pins if the fluid level is at or above the MINIMUM level
mark.
3. Leave the meter leads connected to switch pins.
Using a suction gun, remove brake fluid from
reservoir chamber until it is below the MINIMUM level
mark. The meter should read OPEN CIRCUIT.
FLUID LEVEL CONTINUITY BETWEEN
Proper Brake Fluid Level Continuity between pins
Low Brake Fluid Level
No continuity between
pins
REPLACEMENT
The brake fluid level switch is non-serviceable. If the
switch fails testing, replacement of the master cylinder is
required. Refer to the Brake System chapter for master
cylinder removal and installation procedures.
IGNITION / KEY SWITCH
PIN CONTINUITY
SWITCH POSITION CONTINUITY BETWEEN
OFF E and F
ON LIGHTS
A, E and F; C and D
ON
C and D; E and F
START
A and B; C and D; E and
F
SWITCH FUNCTION
PIN FUNCTION
A
Key Fuse Out
B
Key Switch, Start Relay
Coil In
C
System B+
D
Key Switch B+, Key Out
E
Key Out, Headlight Relay
Enable
F
—
CHASSIS / BODY ELECTRICAL
