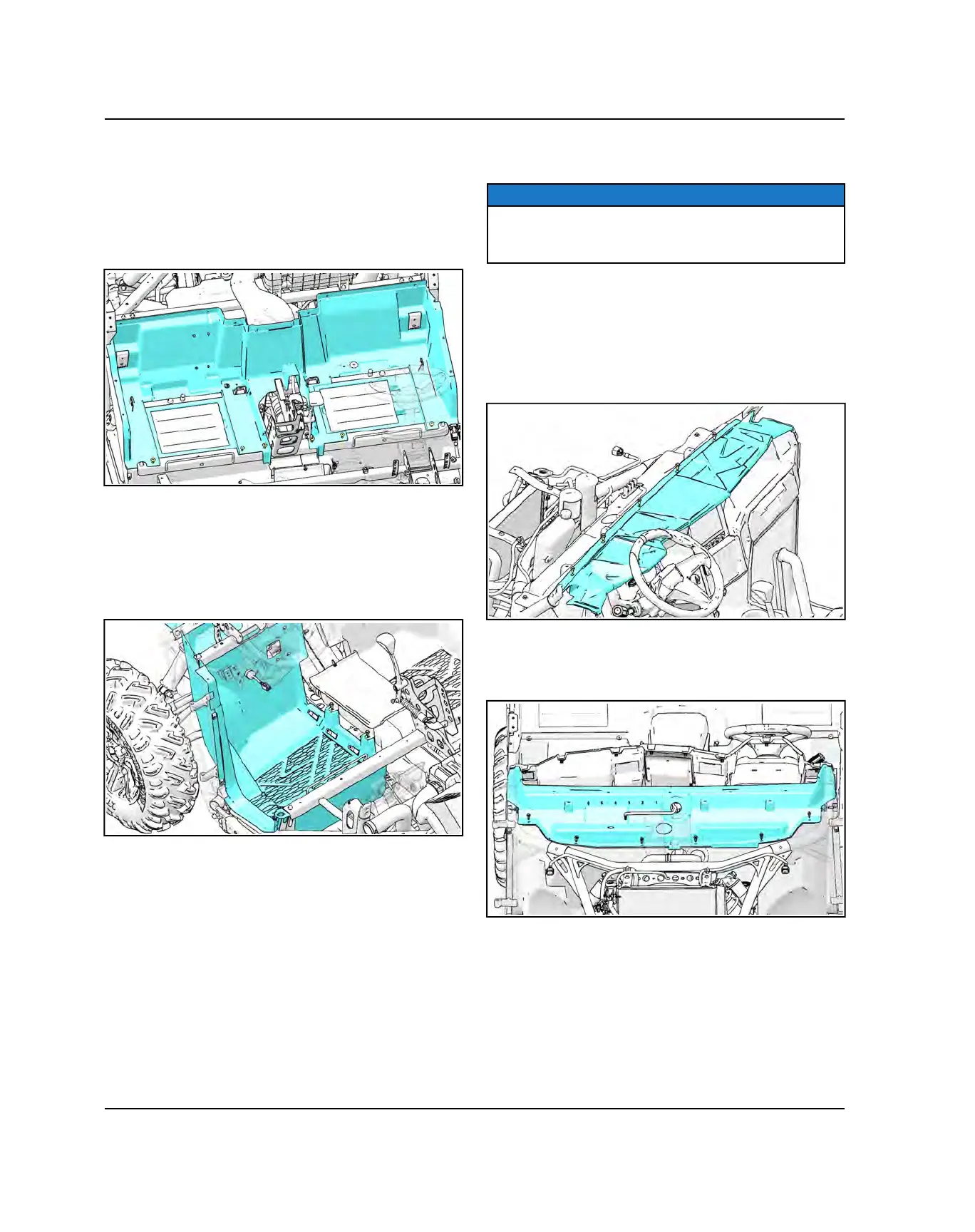

LOWER REAR CLOSEOFF PANEL
REMOVAL
1. Remove the fasteners holding the rear lower close-off
panel to the vehicle. Remove the seat belt buckles,
seat belt shoulder strap mounts and brackets, and
fuse box from the panel. Remove the lower close-off
panel from the vehicle.
MAIN FLOOR REMOVAL
1. Remove the brake pedal, accelerator pedal, and
mounting bracket. Refer to “Brake Pedal Removal”
page 10.48 procedure.
2. Remove the remaining fasteners holding the RH and
LH main floors to the vehicle.
INTERIOR BODY COMPONENT
REMOVAL - GENERAL 4
NOTICE
ROPS shown removed for illustration purposes only. It
is not necessary to remove the ROPS to remove the
interior body components.
1. Remove the hood, front and rear fenders, and rocker
panels. Refer to “Exterior Body Component
Removal” page procedure.
UPPER DASH PANEL REMOVAL
1. Remove the fasteners holding the upper dash panel
to the vehiclė and remove the panel.
UPPER FLOOR PANEL REMOVAL
1. Remove the fasteners holding the upper floor panel to
the main floor panels.
