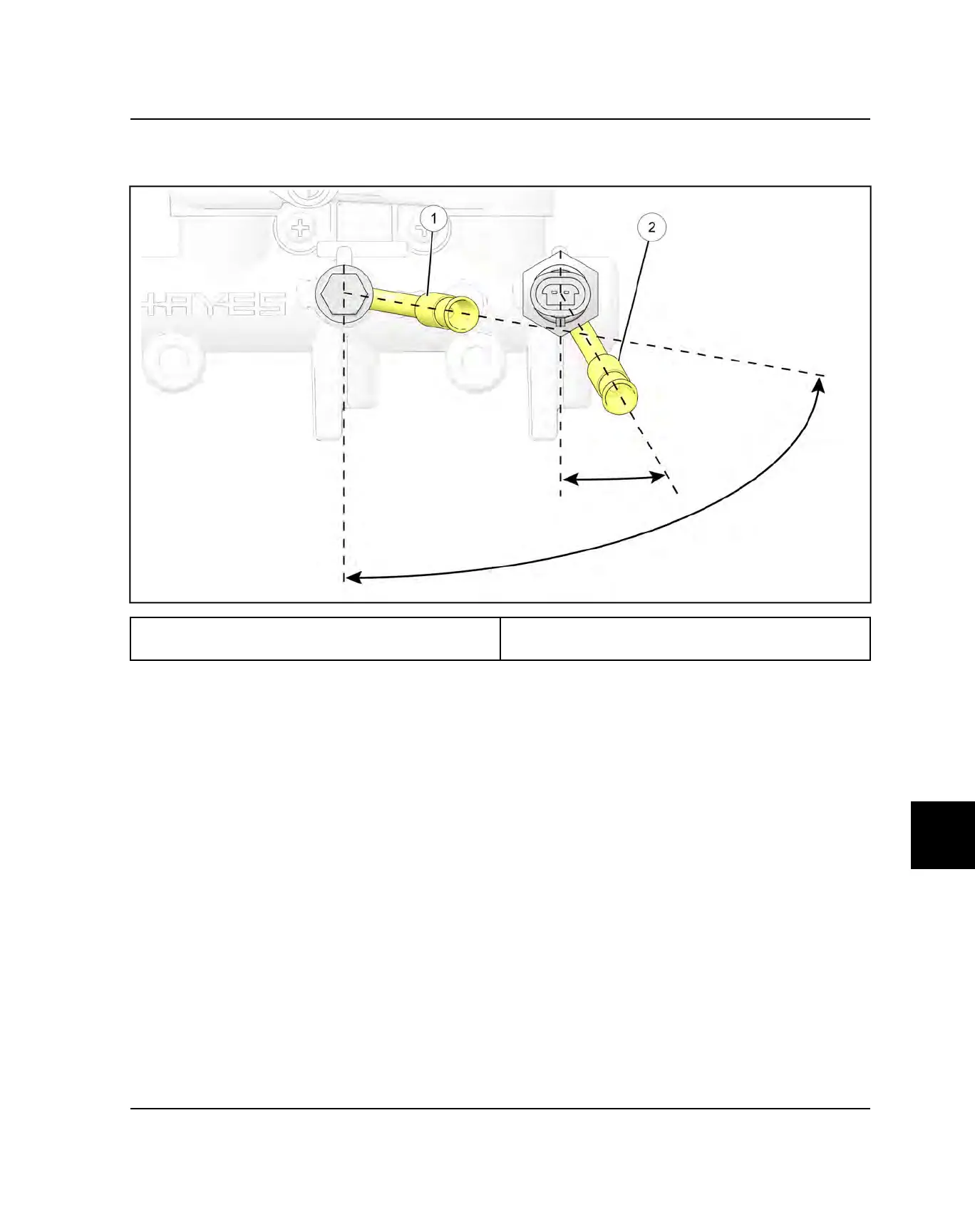

BRAKE LINE FITTING ORIENTATION - ABS
MASTER CYLINDER (ABS MODELS)
q
Master Cylinder to ABS Rear Port Fitting
80.0° ± 2.5°
w
Master Cylinder to ABS Front Fitting
30.0° ± 2.5°
BRAKE SYSTEM
