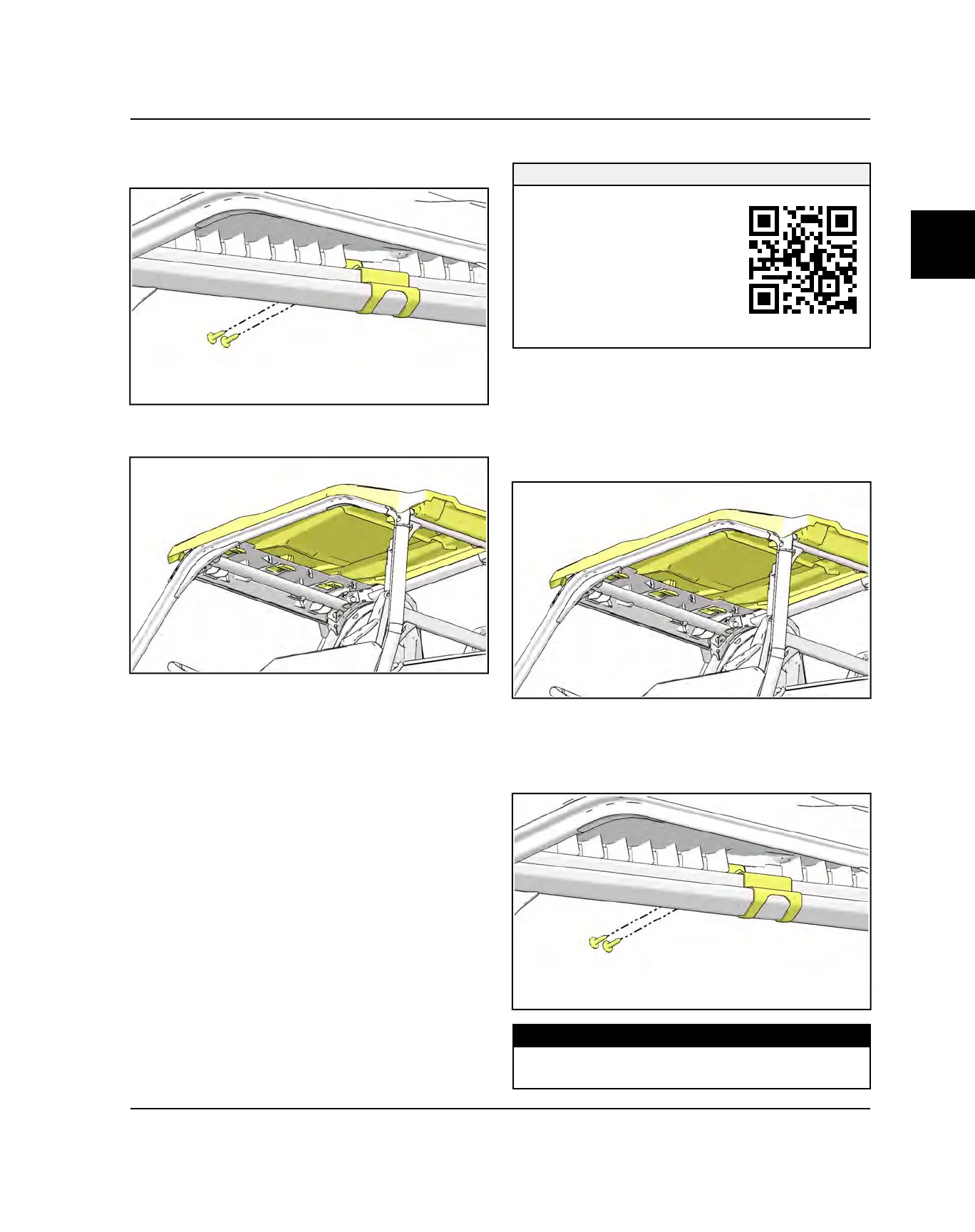

ROOF REMOVAL
1. Remove the roof mounting bracket fasteners.
2. Push up and forward on the back of the roof to
remove it from the ROPS Trim Panel.
ROOF INSTALLATION
SERVICE VIDEO
A service video has been created
to help highlight this procedure.
To view the video, either:
• Scan the QR Code with a
mobile device
• From a computer, right click
HERE and open link in a new
window.
1. Ensure the ROPS Visor Trim Panel has been
installed.
2. With the help of an assistant, place the roof onto the
top of the ROPS.
3. Engage the front hooks into the ROPS Trim Panel
and slide the roof rear to lock into place.
4. Install mounting bracket on the rear ROPS and align
mounting points.
5. Install mounting bracket fasteners and torque to
specification.
TORQUE
Roof Mounting Bracket Fasteners:
8 lb-ft (11 Nm)
