12
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
12.43

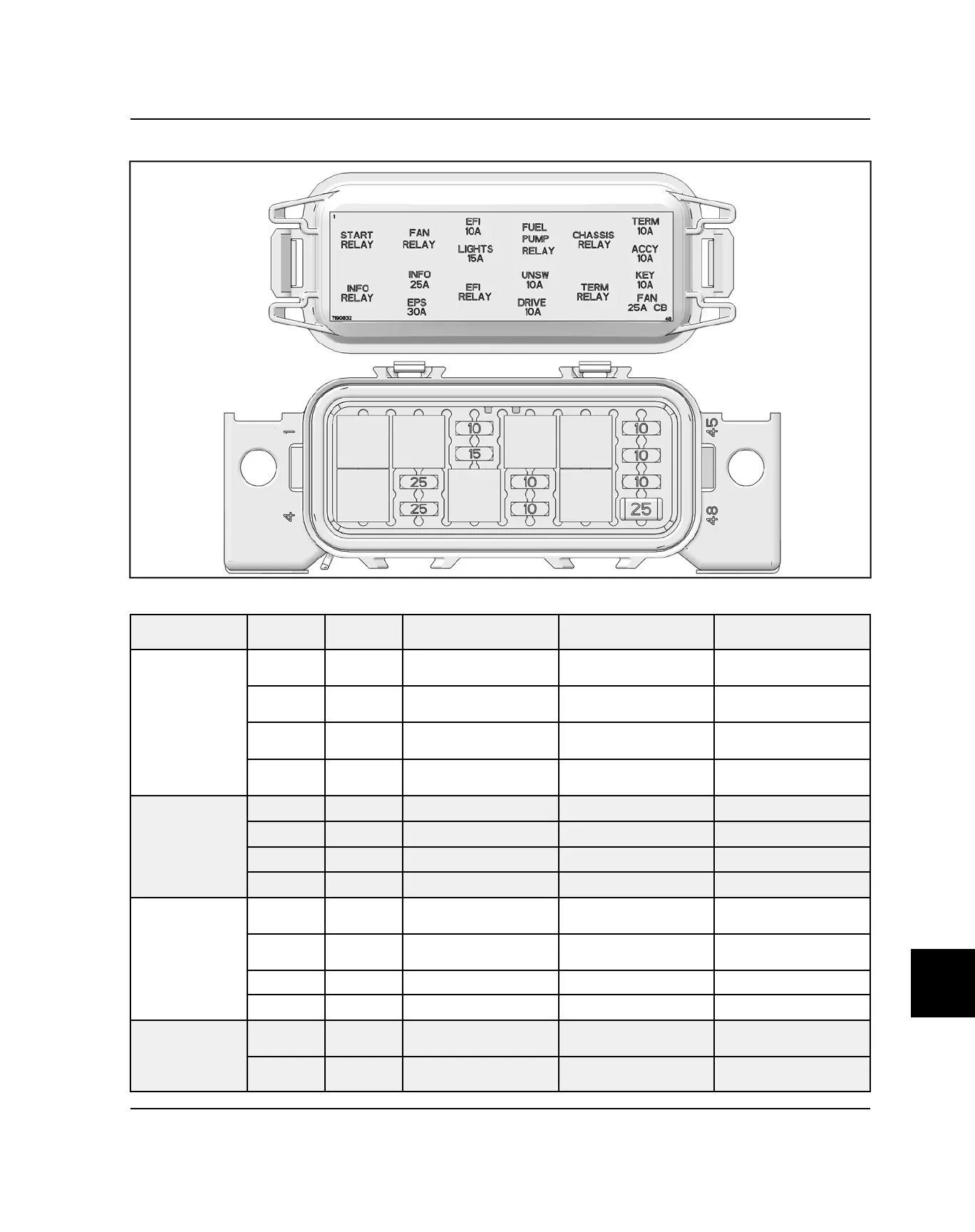

FUSE / RELAY CENTER - 2 SEAT
RELAY DETAILS
FUSE / RELAY PIN
WIRE
COLOR
FROM COMPONENT TO COMPONENT FUNCTION
Start Relay
1 DG KEY SWITCH RELAY/FUSE BLOCK
KEYSWITCH, START
RELAY COIL IN
2 OG RELAY/FUSE BLOCK
SPLICE, BRAKE
BRAKE SWITCH, KEY
START
5 DG/WH RELAY/FUSE BLOCK START SOLENOID
START SOLENOID
CONTROL
6 BN RELAY/FUSE BLOCK
SPLICE,REAR GND #2
GROUND, START RELAY
COIL
Fan Relay
9 RD/DB
SPLICE,EFI B+ 2
RELAY/FUSE BLOCK
EFI B+, FAN COIL HI
10 OG/BK RELAY/FUSE BLOCK RELAY/FUSE BLOCK
FAN B+, FUSED RELAY IN
13 OG/BK RELAY/FUSE BLOCK ENGINE COOLANT FAN
FAN B+, RELAY OUT
14 OG/BK
ECM,CODE 4
RELAY/FUSE BLOCK COOLING FAN RELAY
Fuel Pump Relay
25 RD/DB RELAY/FUSE BLOCK
SPLICE,EFI B+ 2
EFI B+, FUEL PUMP COIL
HI
26 OG
SPLICE,R/S B+2
RELAY/FUSE BLOCK
KEY SWITCH B+, FUEL
PUMP FUSED
29 RD/BU RELAY/FUSE BLOCK FUEL PUMP & SENDER FUEL PUMP RELAY OUT
30 DG/YE
ECM,CODE 4
RELAY/FUSE BLOCK FUEL PUMP COIL LO
Chassis Relay
33 RD/DB RELAY/FUSE BLOCK
SPLICE,EFI B+ 2
EFI B+, CHASSIS RELAY
COIL
34 RD START SOLENOID B+ RELAY/FUSE BLOCK
CHASSIS RELAY POWER
IN
CHASSIS / BODY ELECTRICAL
