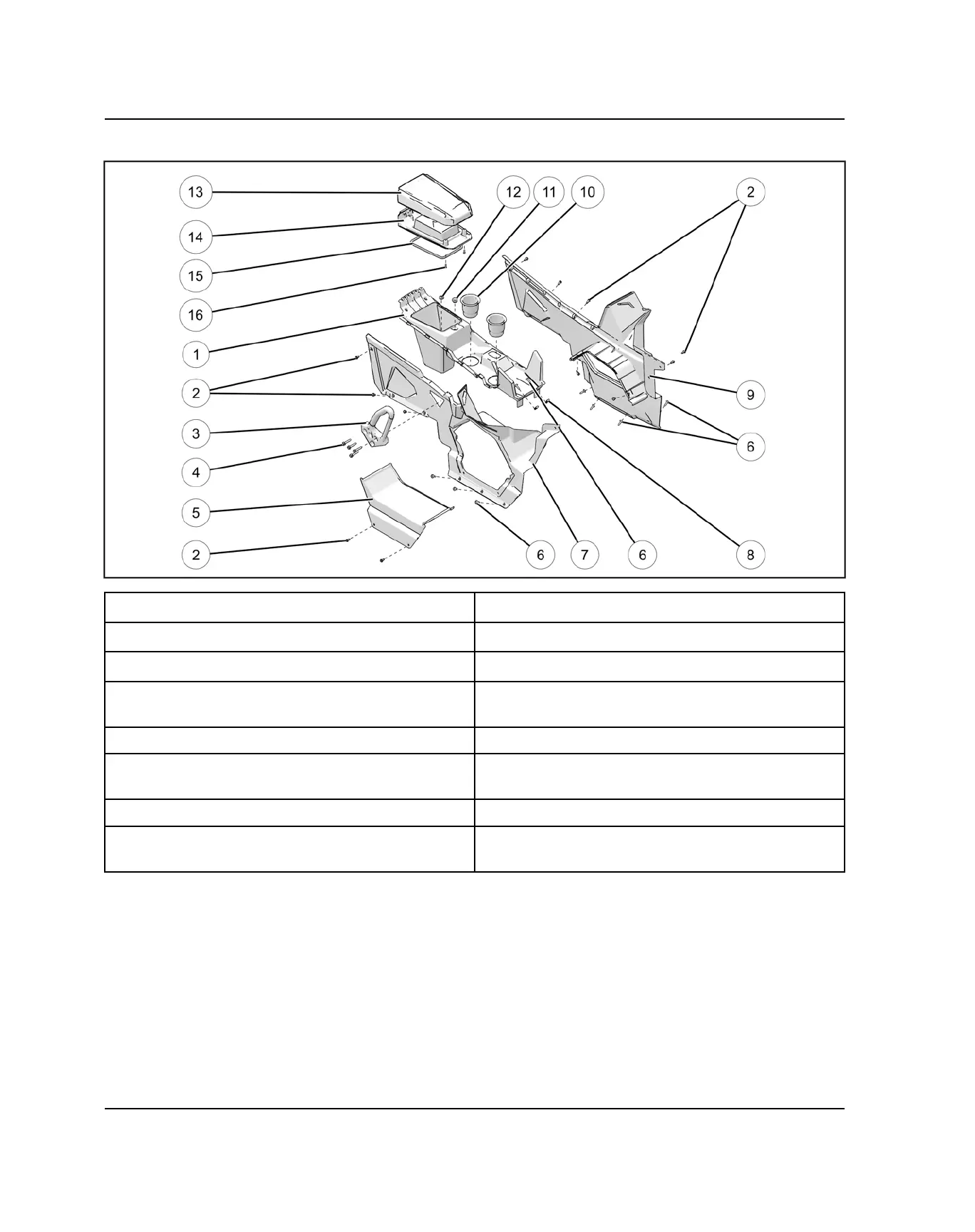

CENTER CONSOLE ASSEMBLY VIEW - GENERAL / GENERAL XP
q
Center Console Top
o
LH Center Console
w
Plastic Push Rivet
a
Cup Holder
e
Passenger Grab Handle
s
Rubber Grommet
r
Passenger Grab Handle Fasteners
6 lb-ft (8 Nm)
d
Compartment Plug
t
Console Service Panel
f
Center Console Cover
y
Body Fastener
3.5 lb-ft (4.7 Nm)
g
Inner Center Console Cover
u
RH Center Console
h
Center Console Seal
i
U-Nut
j
Center Console Cover Fastener
22 in-lbs (2.5 Nm)
