REAR CAMERA SERVICE
NOTICE
Front and rear cameras are similar in appearance
except that REAR camera has ring of LED lamps, front
camera does not.

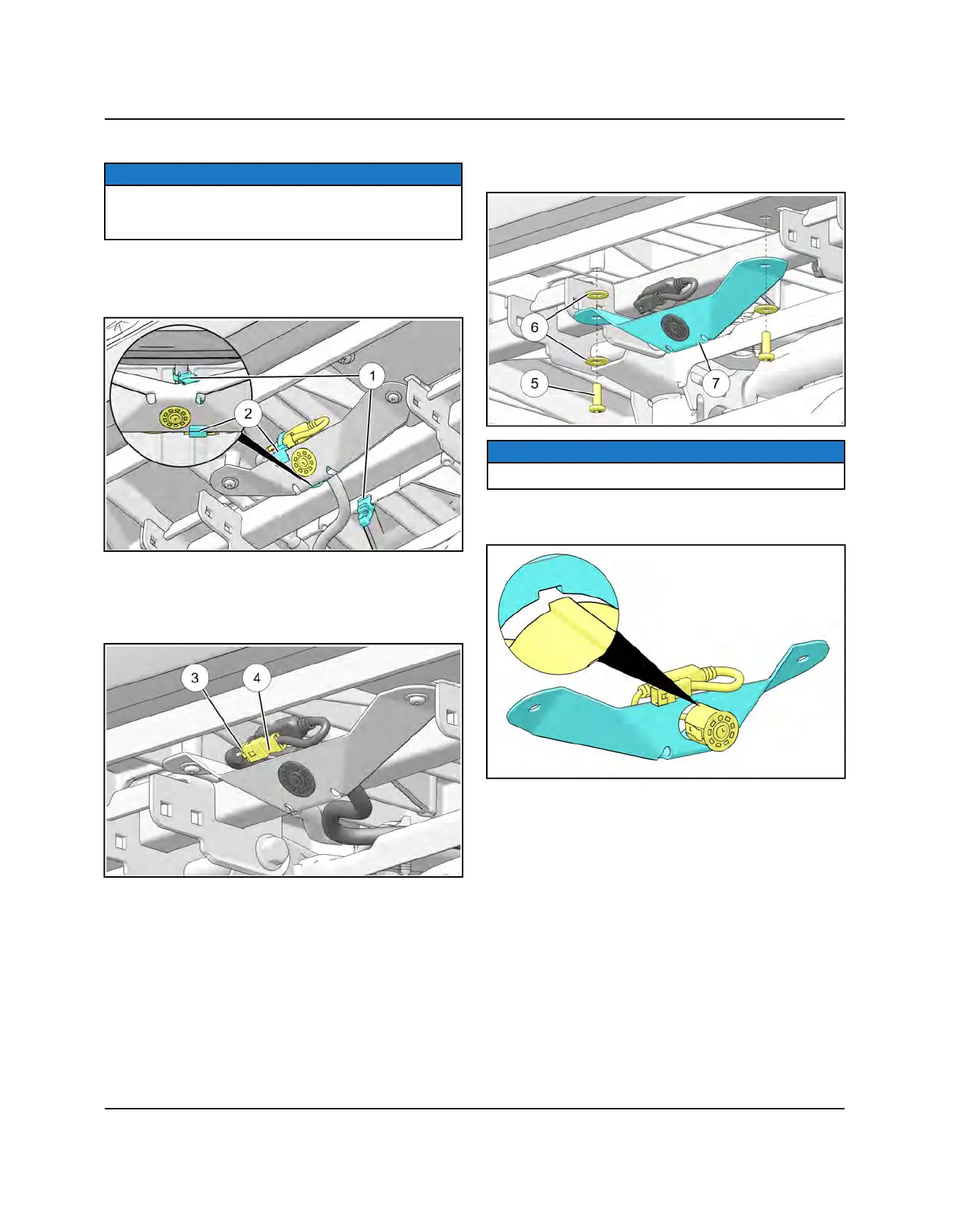

REMOVAL
1. Remove the two edge clips
q
securing the main
harness.
2. Remove the edge clip
w
securing the camera
harness / connector.
3. Disconnect main chassis connector
e
from rear
camera connector
r
.
4. Remove the fasteners
t
and washers
y
that secure
the rear camera bracket
u
and remove the bracket/
camera.
NOTICE
One washer is used as spacer on LH side of bracket.
5. If required, remove the rear camera from the rear
camera bracket.
