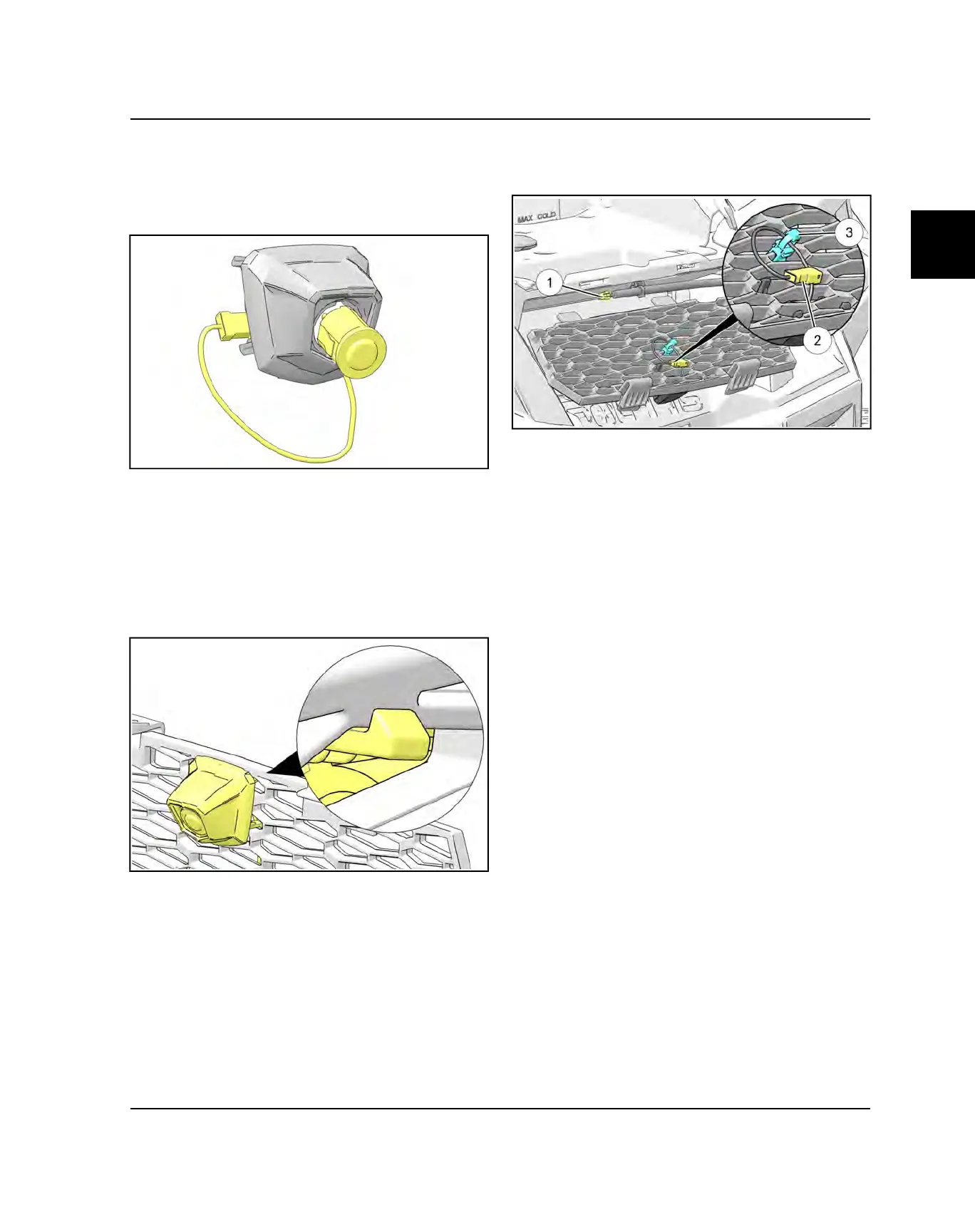

INSTALLATION
1. If removed, route wiring on front camera
e
through
front camera mount
t
. Orient spline on camera with
slot in mount, then insert camera into mount until
locking clips snap into place.
2. Route wiring attached to front camera rearward
through grille, then carefully push front camera mount
into grille until all four tabs lock in place. Ensure the
following:
• Camera mount is positioned as high as possible on
grille with camera pointing DOWNWARD
• Camera wiring is not pinched or kinked as it passes
through grille
3. Holding grille near vehicle, join main harness
connector
w
to front camera connector
w
. Secure
harness to grille using edge clip
e
.
4. Reinstall front grille.
