12.62
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
LIGHTING SYSTEM SERVICE

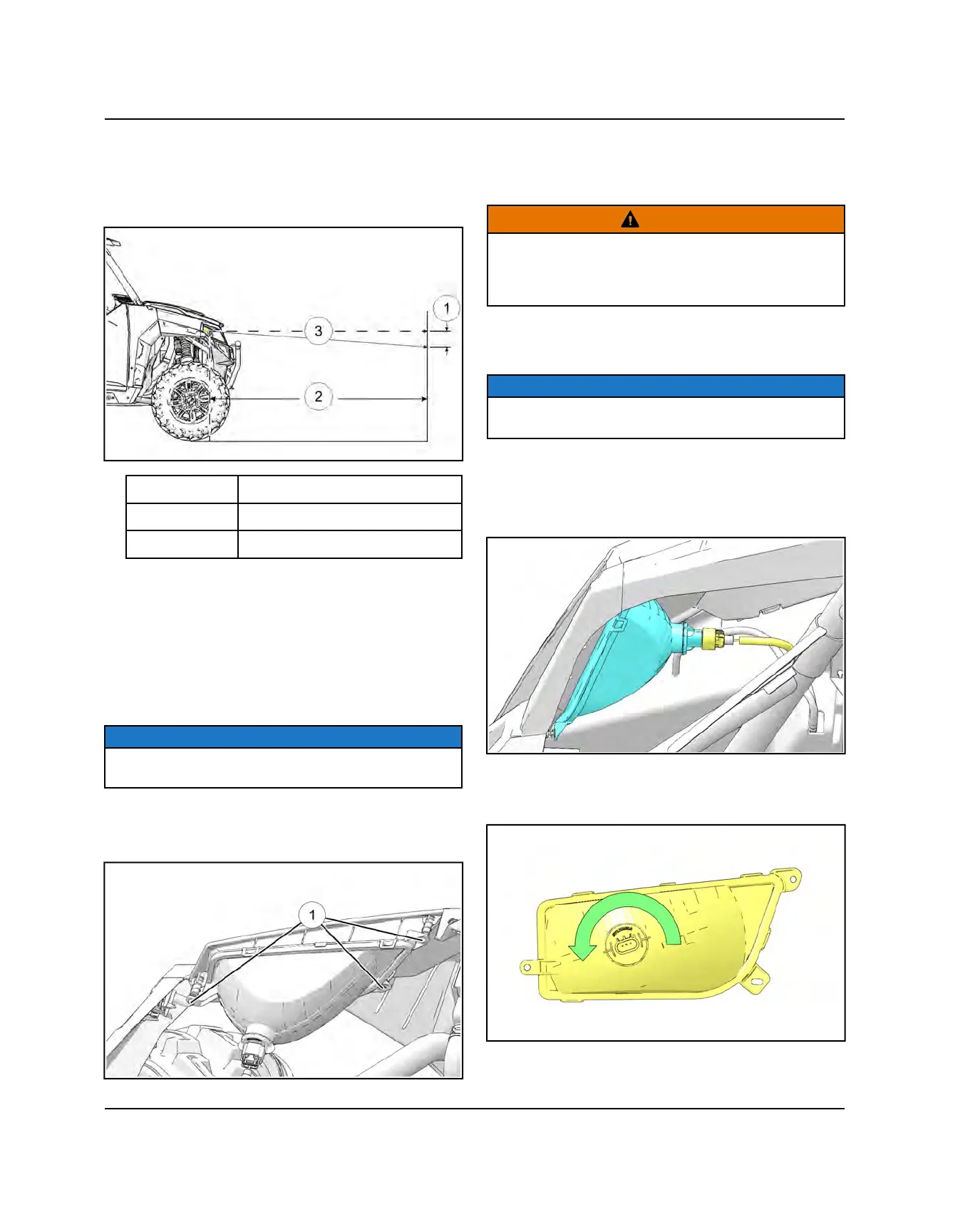

HEADLIGHT ADJUSTMENT
1. Place the vehicle on a level surface with the headlight
approximately 25 ft. (7.6 m) from a wall.
q
Measure Distance = 8 in (20 cm)
w
Measure Distance = 25 ft. (7.6 m)
e
Headlight Center of Bulb
2. Measure the distance from the floor to the center of
the headlight and make a mark on the wall at the
same height.
3. With the machine in Park, start the engine and turn
the headlight switch to the LOW position.
4. The most intense part of the LOW beam headlight
beam should be aimed 8 in (20 cm)
q
below the
mark placed on the wall in Step 2.
NOTICE
Rider weight must be included in the seat while
performing this procedure.
5. Adjust the beam to the desired position by loosening
or tightening the three adjustment screws
q
and
moving the lamp to the appropriate height.
6. Adjust the beam to the desired position. Repeat the
procedure to adjust the other headlight.
WARNING
Due to the nature of light utility vehicles and where they
are operated, headlight lenses become dirty. Frequent
washing is necessary to maintain lighting quality. Riding
with poor lighting can result in severe injury or death.
HEADLIGHT BULB REPLACEMENT
NOTICE
Only applicable to models equipped with halogen
headlights.
1. Locate the bulb on the back side of the headlight
housing through the wheel well.
2. Disconnect the harness from the bulb. Be sure to pull
on the connector, not on the wiring.
3. Turn the bulb counterclockwise (when viewing from
back of headlight) and remove it from the headlight
housing.
CHASSIS / BODY ELECTRICAL
