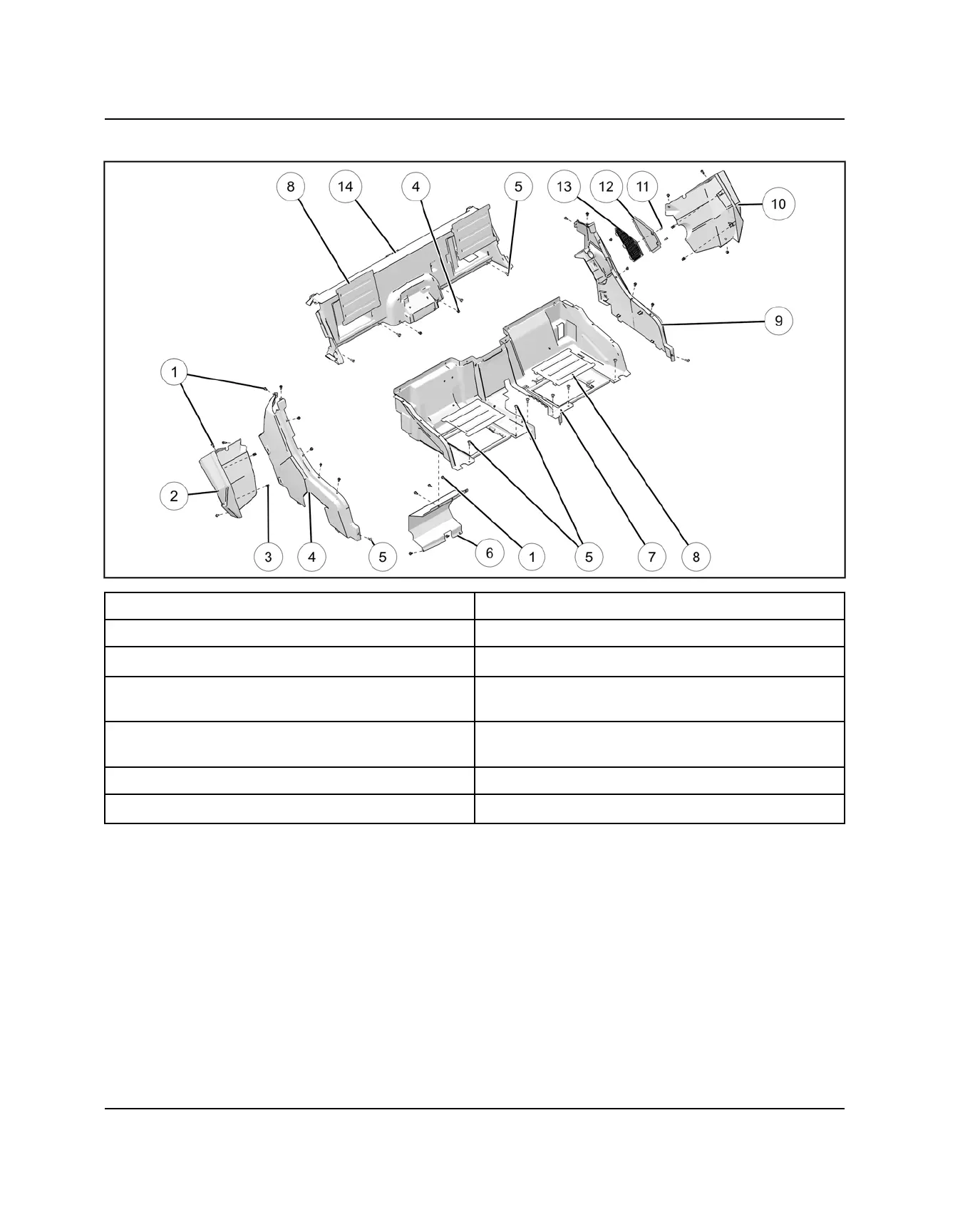

CLOSEOFF & REAR FENDER ASSEMBLY VIEW - GENERAL XP
q
Plastic Push Rivet
i
Service Panel
w
RH Fender Flair
o
LH Rear Fender
e
Trim Clip
a
LH Fender Flair
r
RH Rear Fender
s
Rear Fender Intake Fastener
22 in-lbs (2.5 Nm)
t
Body Fastener
3.5 lb-ft (4.7 Nm)
d
Clutch Intake Filter
y
Fuel Tank Debris Shield
f
Rear Fender Intake
u
Lower Rear Closeoff Panel
g
Upper Rear Closeoff Panel
