PARKING BRAKE (INTL)

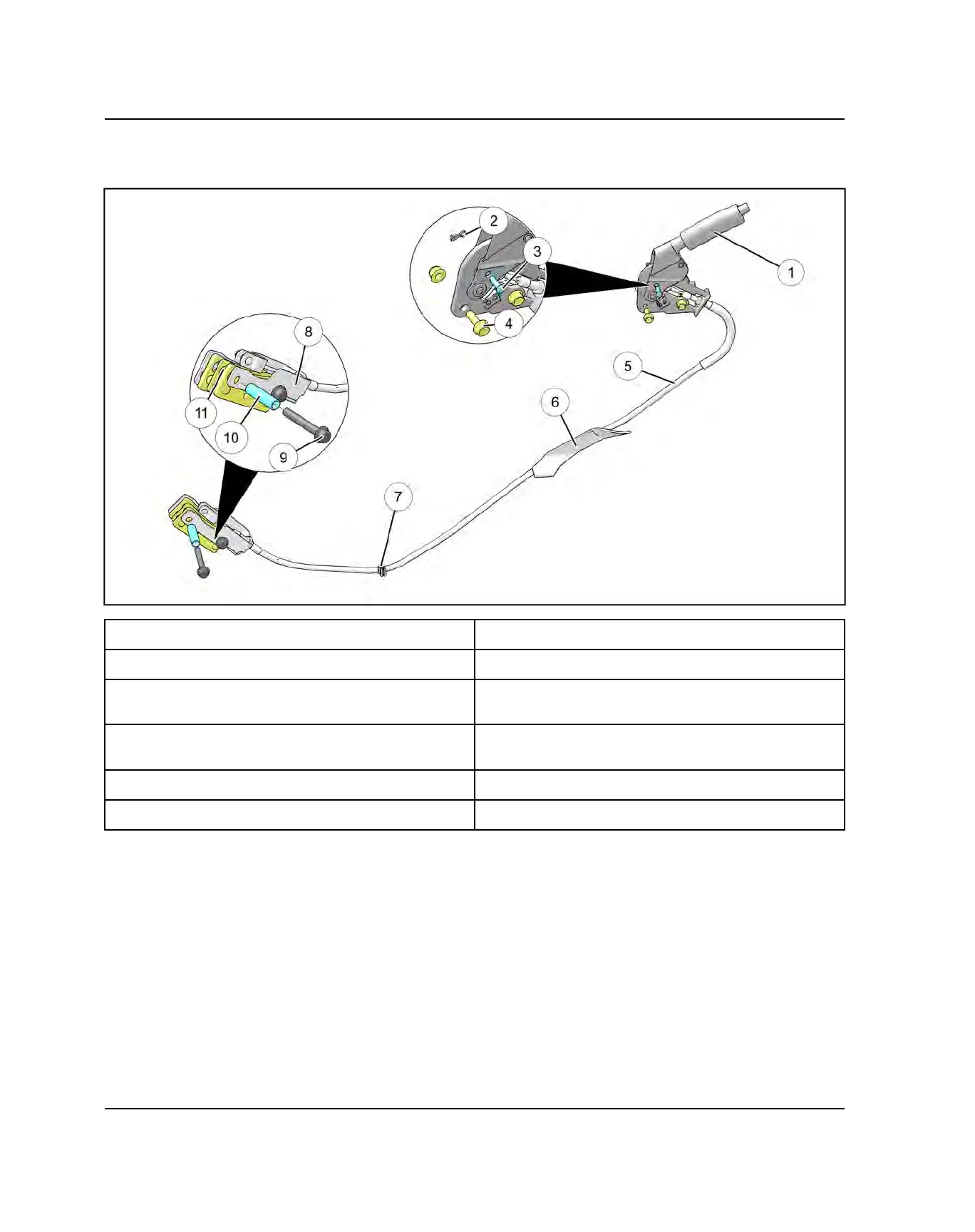

PARKING BRAKE ASSEMBLY VIEW
q
Parking Brake Lever
u
Edge Clip
w
Pin Clip
i
Parking Brake Bracket
e
Pin Clevis
o
Parking Brake Caliper Fastener
37 lb-ft (50 Nm)
r
Parking Brake Lever Fastener
22 lb-ft (30 Nm)
a
Parking Brake Spacer
2 in (51 mm)
t
Parking Brake Cable
s
Parking Brake Caliper
y
Battery Pad
