12
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
12.29
5. Verify that cables are properly routed and reinstall the
driver’s seat.
BATTERY SPECIFICATIONS (INTL)
Type Varta Silver Dynamic
Voltage
12 V
Nominal Capacity
@ 10 HR Rate
54 AH
CCA 530
Nominal Open
Circuit Voltage
12.8 V or more.
Recommended
Charging Rate
1.8 A @ 5-10 HR or 6.0 A @ 1
HR
IMPORTANT
Never attempt to open the battery. If the seal is broken,
the battery will be ruined and will fail within a few
weeks.

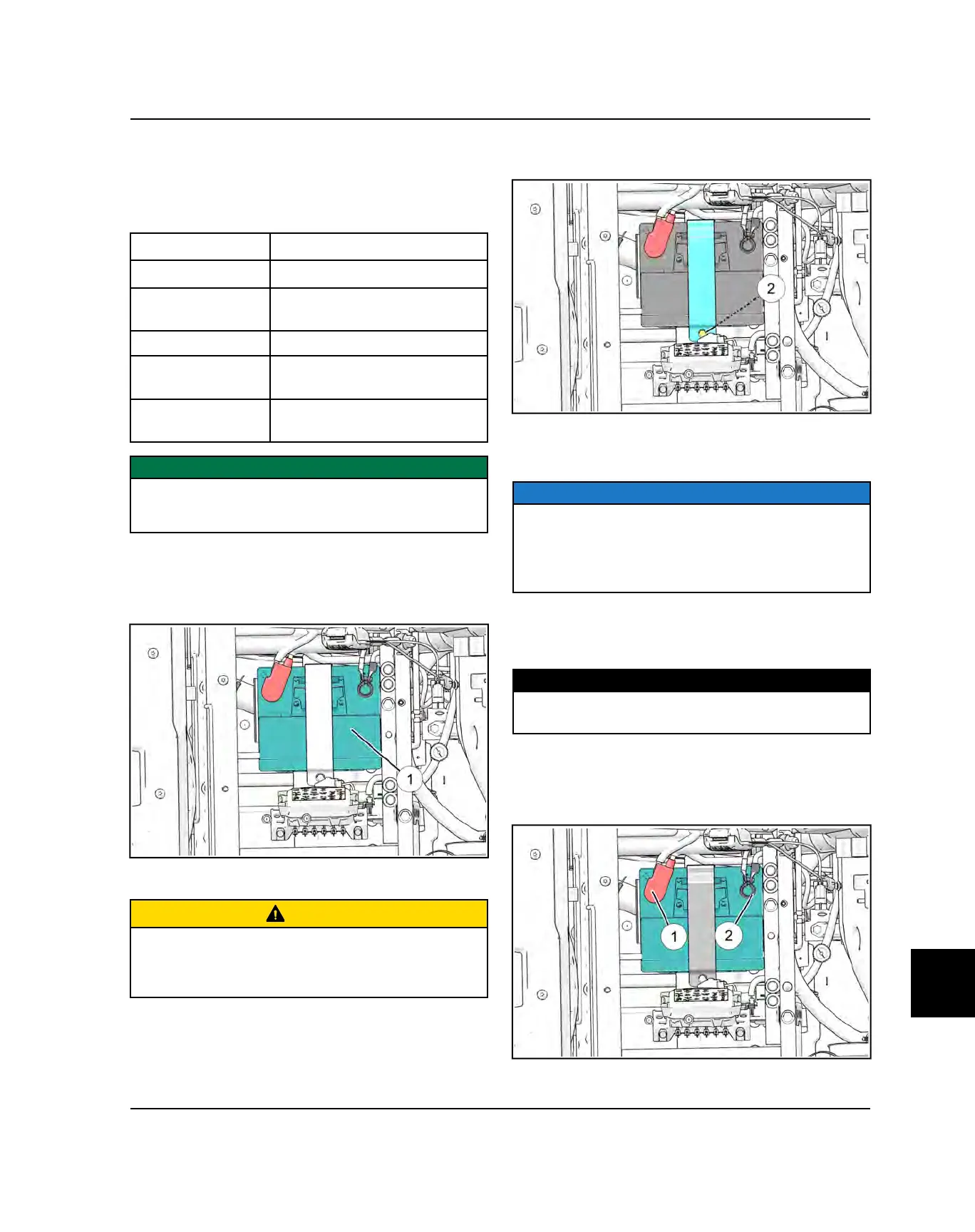

BATTERY REMOVAL (INTL)
1. Remove the driver’s seat to access the battery
q
.
2. Disconnect the black (negative) battery cable.
CAUTION
To reduce the chance of sparks: Whenever removing
the battery, disconnect the black (negative) cable first.
When reinstalling the battery, install the black (negative)
cable last.
3. Disconnect the red (positive) battery cable.
4. Remove the battery hold-down bracket
w
. Lift the
battery out of the vehicle.
BATTERY INSTALLATION (INTL)
NOTICE
Using a new battery that has not been fully charged can
damage the battery and result in a shorter life. It can
also hinder vehicle performance. Refer to “Battery
Charging” page procedure before installing the
battery.
1. Place the battery in the battery holder and secure
with hold-down strap. Torque fastener to
specification.
TORQUE
Battery Bracket:
3.5 lb-ft (5 Nm)
2. Coat the terminals with dielectric grease.
3. Connect and tighten the red (+)
q
cable first.
4. Connect and tighten the black (-)
w
cable last.
CHASSIS / BODY ELECTRICAL
