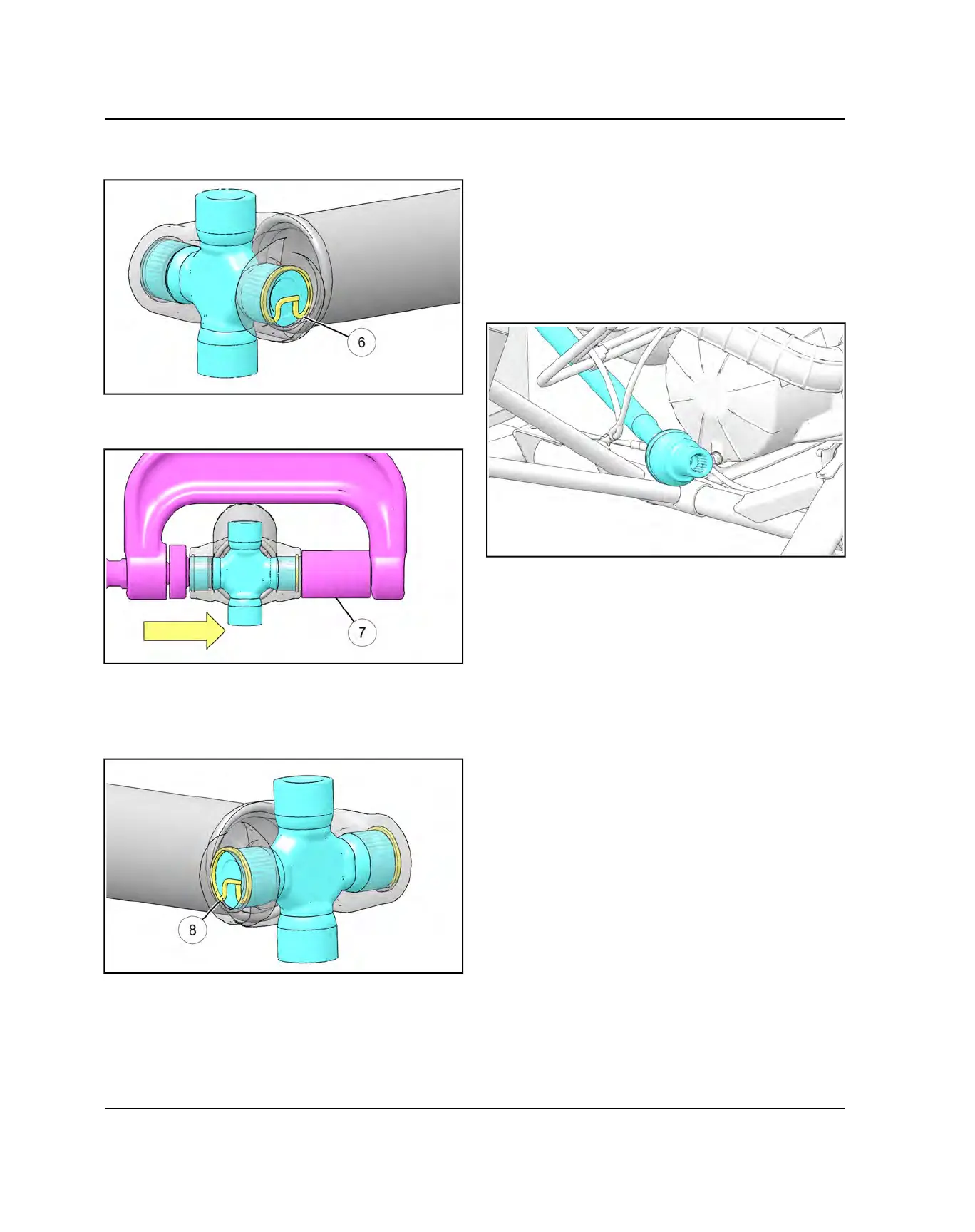

9. Install retaining ring
y
with sharp, square edge facing
away from U-joint into exposed groove.
10.Place larger adapter
u
with ID larger than yoke bore
on side with retaining ring.
11. Tighten clamp until other cap is below retaining ring
groove.
12.Install second retaining ring
i
with sharp, square
edge facing away from U-joint.
13.Verify the U-joint moves freely and does not bind.
PROPSHAFT INSTALLATION - 2 SEAT
1. Lubricate front gearcase shaft splines with Anti-Seize.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Slide the rear prop shaft forward from the left rear of
the machine just below the PVT cover. Install the rear
prop shaft on the transmission output shaft.
5. Lubricate the support bushing with light oil to ease
installation and install the bushing on the rear prop
shaft bearing.
