13
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
13.61

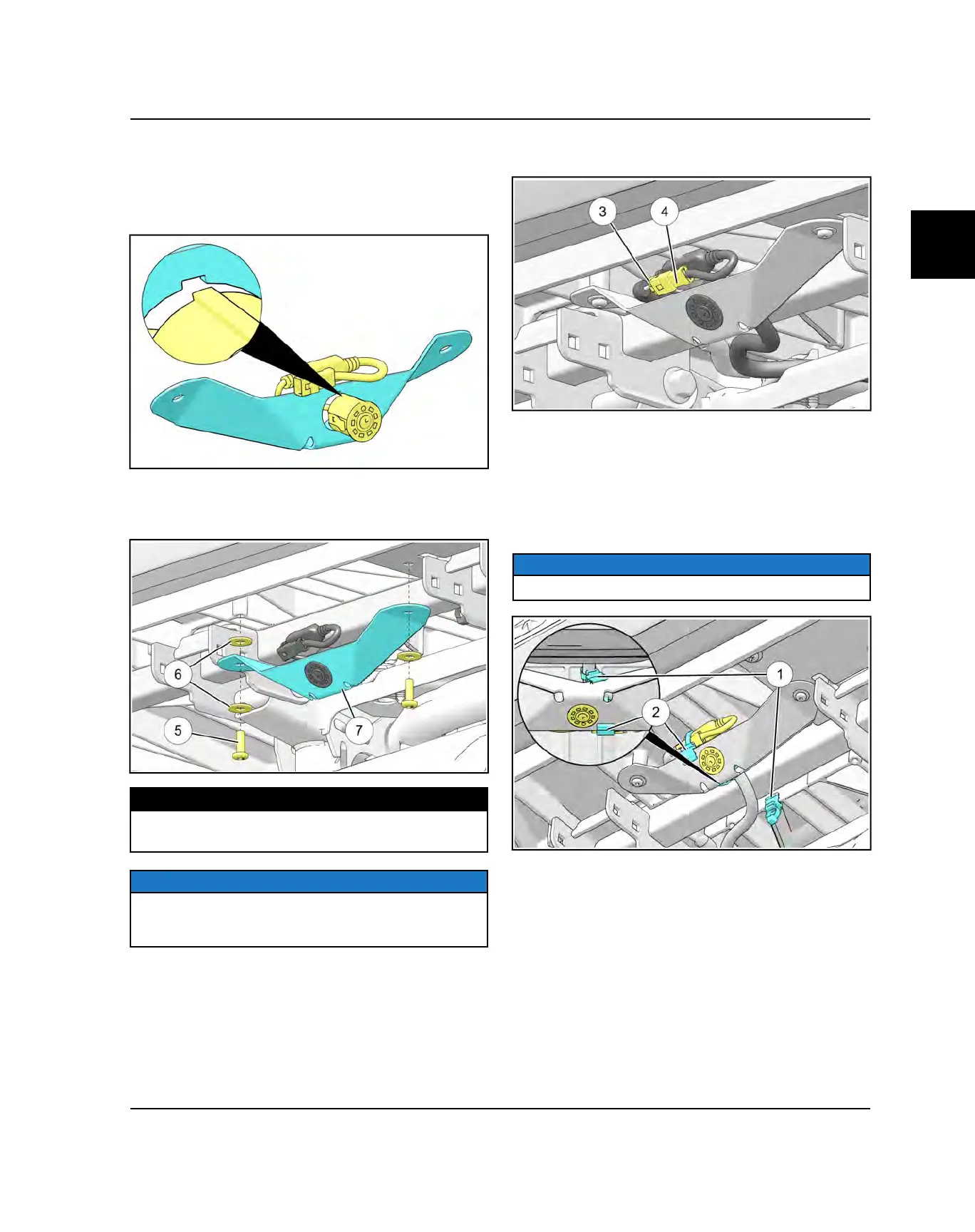

INSTALLATION
1. If removed, route wiring on rear camera through rear
camera bracket. Orient spline on camera with slot in
bracket, then insert camera into bracket until locking
clips snap into place.
2. Install rear camera bracket
u
to lower rear surface of
vehicle bed using two fasteners
t
and washers
y
.
Do not overtighten screws.
TORQUE
Rear Camera Mount Fasteners:
5 ft-lbs (7 Nm)
NOTICE
RH fastener secures the outer edge of the rear box
shield. One washer is used as spacer on LH side of
bracket.
3. Join main chassis connector
e
to rear camera
connector
r
.
4. Secure harnesses using edge clips to prevent contact
with hot components, sharp edges, or moving parts
(including bed throughout its full range of travel).
• Main chassis harness using pre-installed edge clip
q
and additional edge clip
q
• Camera using edge clip
w
NOTICE
Inset view looking up at camera bracket.
FACTORY-INSTALLED OPTIONS
